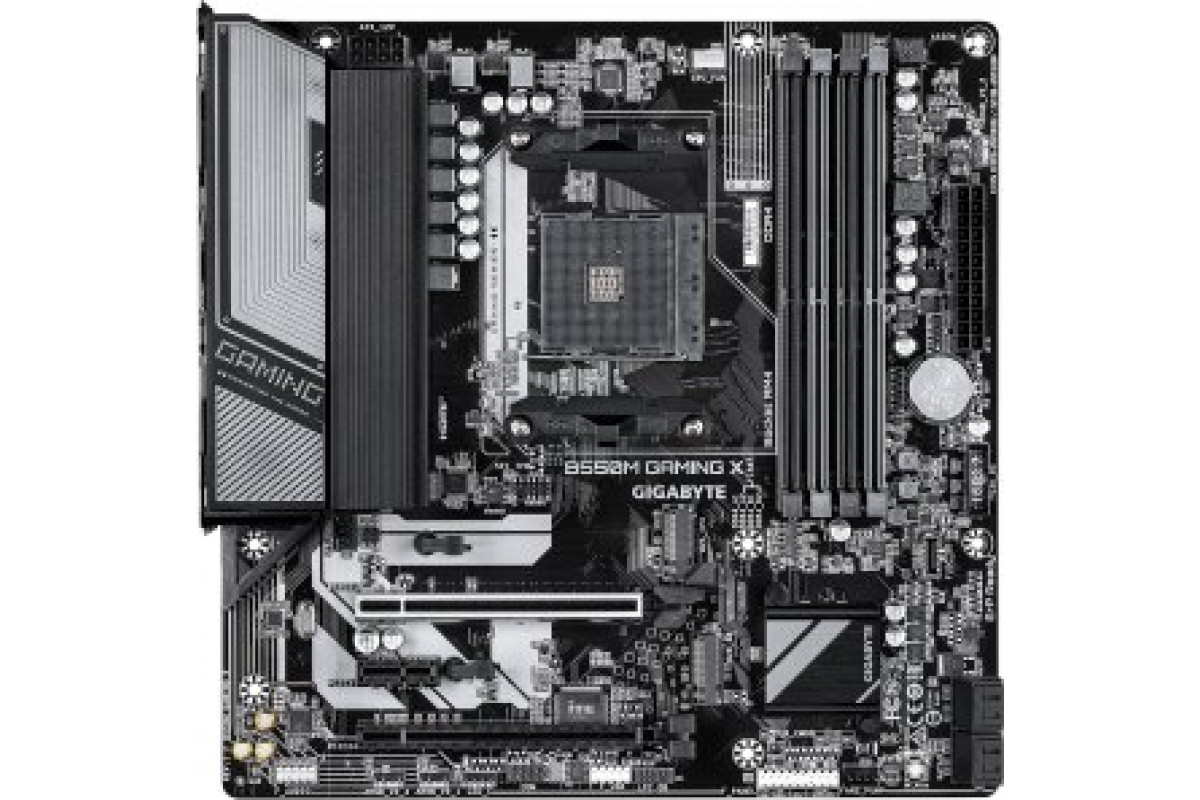

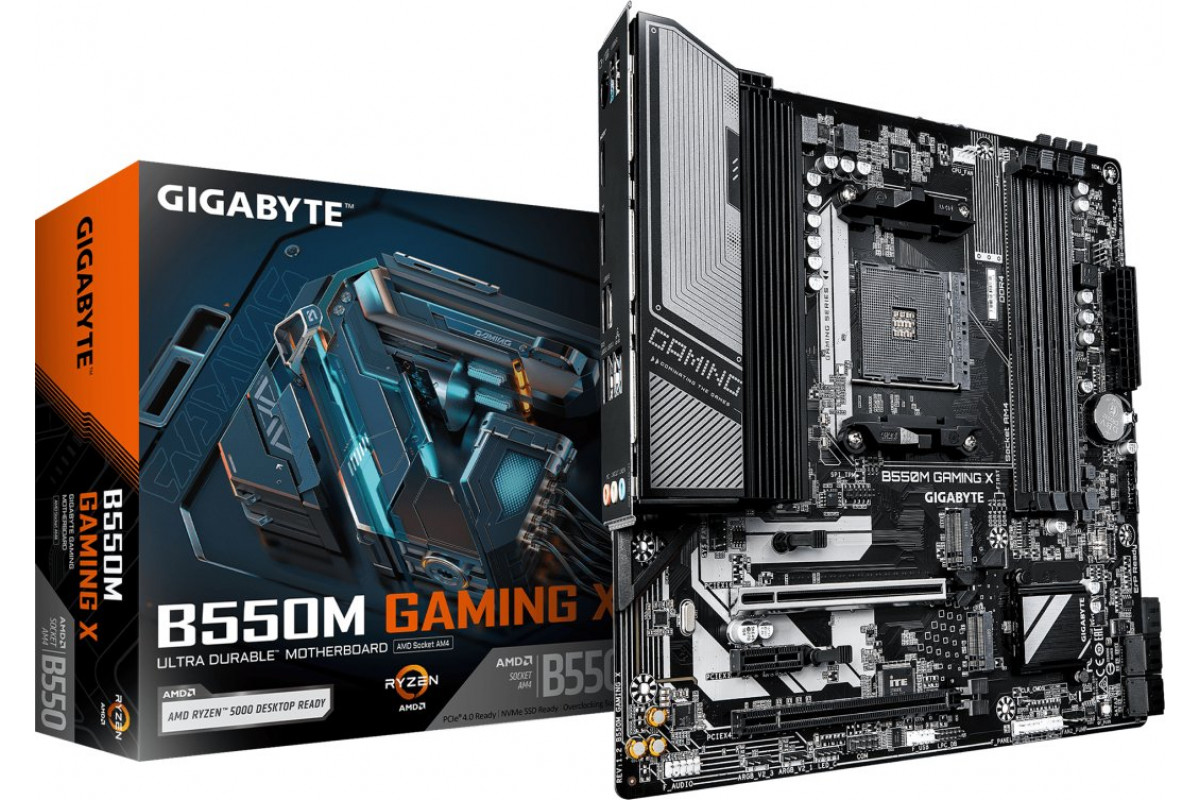

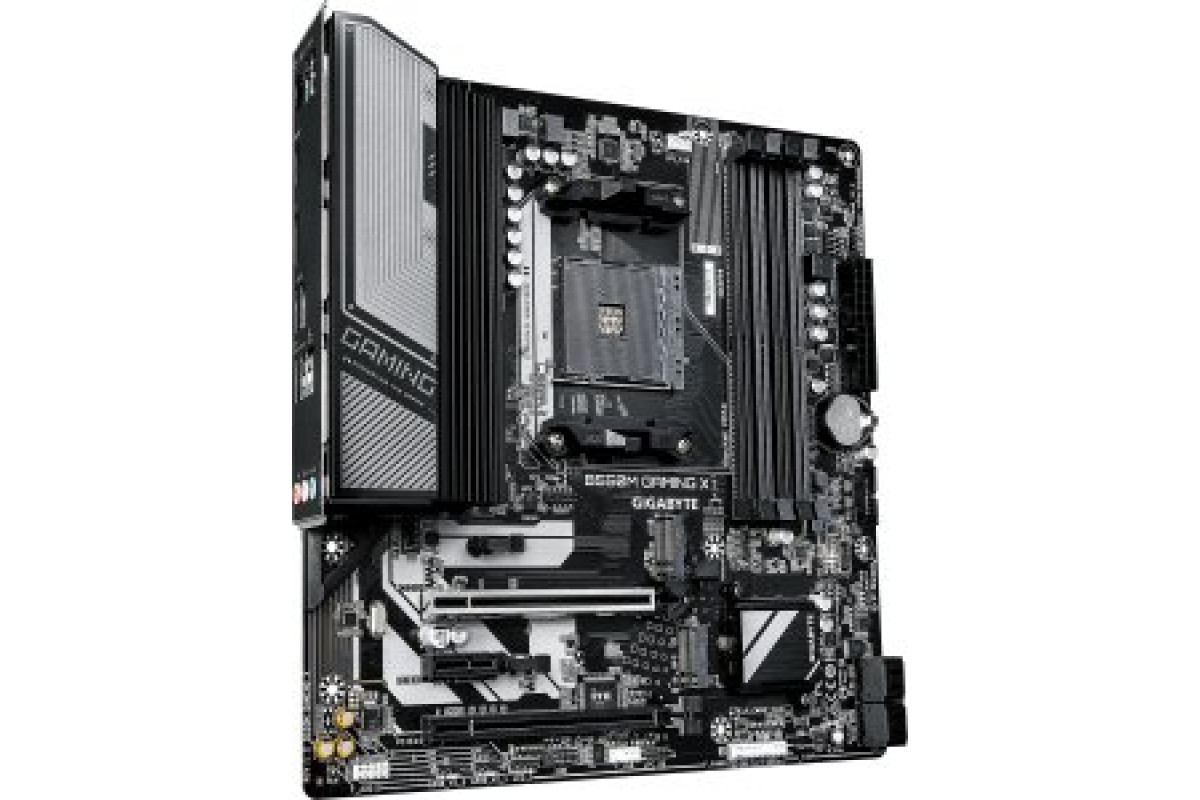

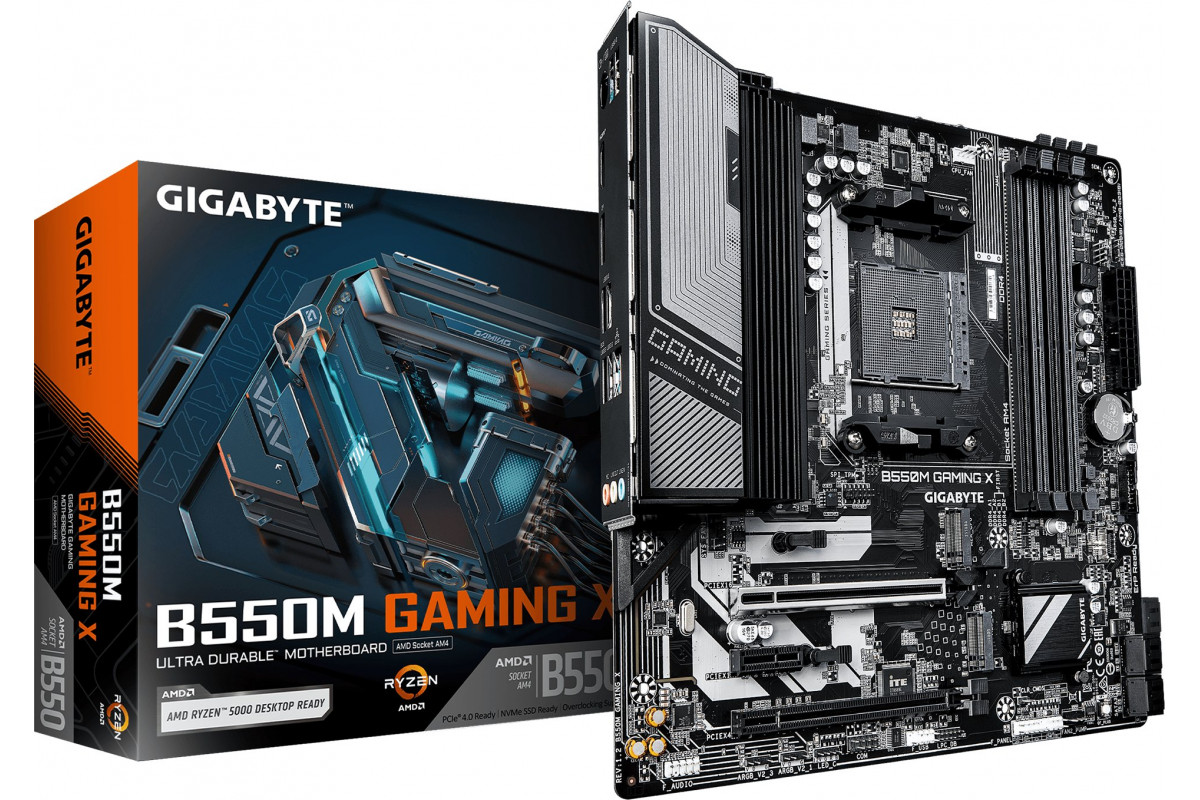

Gigabyte B550M GAMING X

Motherboard Form Factor
Micro ATX
Motherboard Width [mm]
244
Motherboard Depth [mm]
244
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
AMD B550
Motherboard CPU Socket
Socket AM4
Motherboard Supported Processors
AMD Ryzen
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10
Motherboard Integrated Graphics Support
Yes
Motherboard Memory Standard
DDR4
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
2133 MHz 2400 MHz 2667 MHz 2933 MHz 3200 MHz
Motherboard Maximum Memory Capacity
128 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Audio Chipset
Realtek ALC 1220
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000
Motherboard Network Card Chipset
Realtek GbE
Motherboard Wireless Connectivity
No
Motherboard Expansion Slots
PCI Express x1 (1 szt.) PCI Express x16 (2 szt.)
Motherboard Drive Connectors
M.2 slot x2 SATA 3 x4
Motherboard Internal Connectors
Przycisk Q-Flash Plus x1 USB 2.0 x1 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 1 (3.0/3.1 Gen 1) x1 Złącze addressable RGB LED strip 5V x3 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x1 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN 4-pin x1 Złącze przedniego panelu x1 Złącze RGB LED x1 Złącze SYS FAN 4-pin x1 Złącze szeregowe (COM) x1 Złącze TPM x1 Zworka Clear CMOS x1

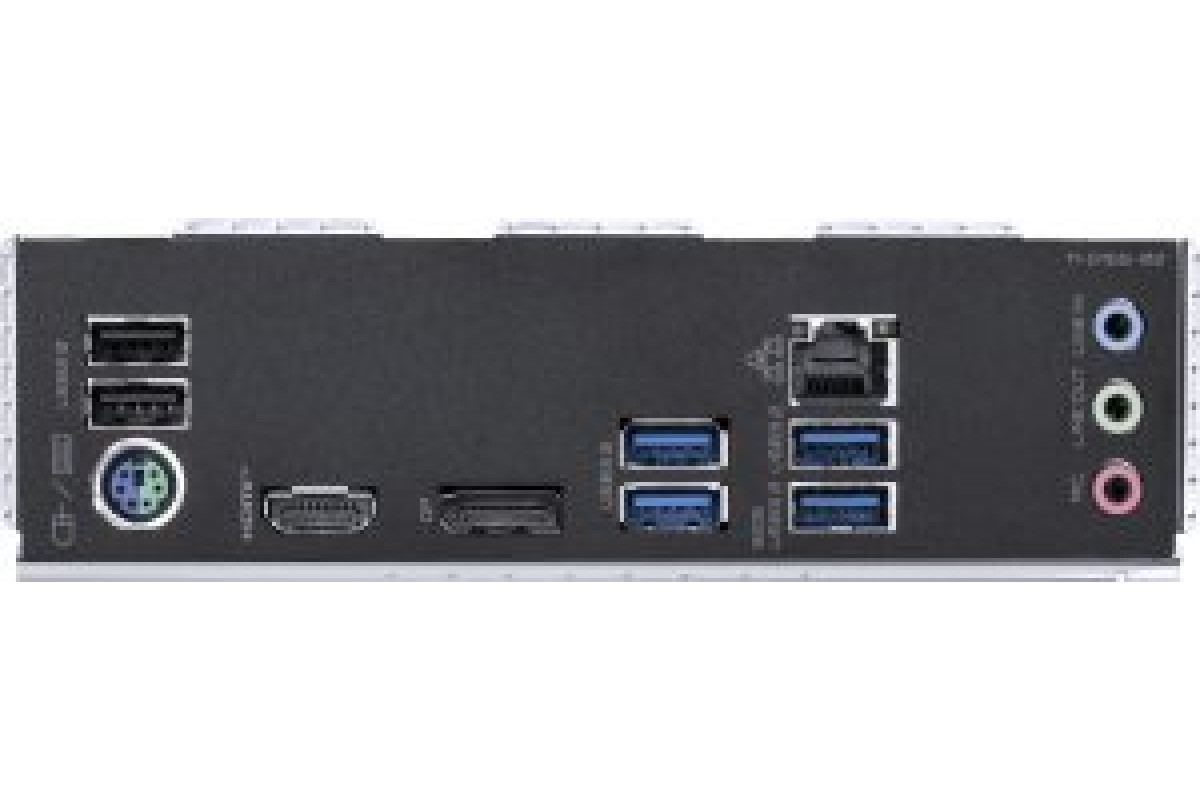

Motherboard Rear Panel
DisplayPort x1 HDMI x1 PS/2 (klawiatura/mysz) x1 RJ-45 x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x4 Złącze anteny WiFi x2 Złącze audio x3
