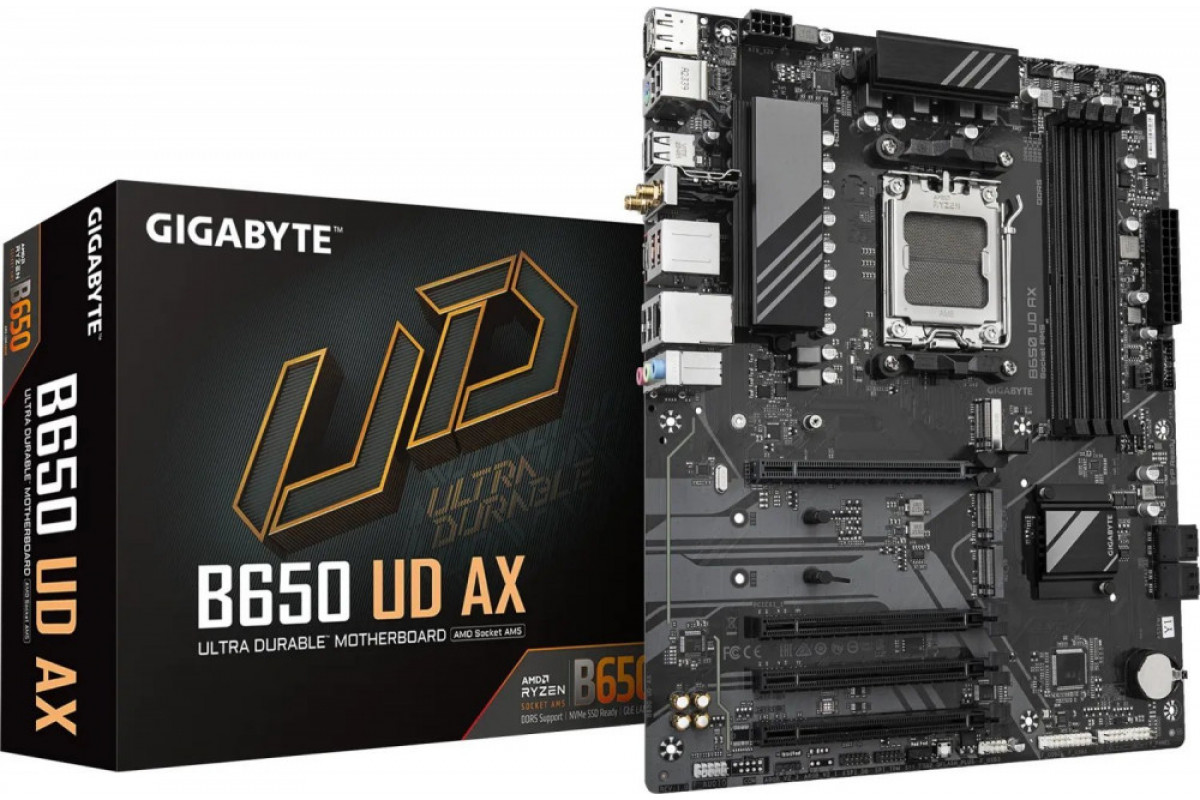

Gigabyte B650 UD AX

Physical
Form factor: ATX
Width: 244 mm
Depth: 305 mm
Color: Black

Technical
Intended use: Gaming
Chipset: AMD B650
CPU socket: AM5
Supported processors: AMD Ryzen
RAID support: RAID 0, RAID 1, RAID 10

Memory
Memory type: DDR5
Module type: U-DIMM
Memory slots: 4
Supported memory speeds: 4800 / 5200 / 5600 / 6000 / 6200 / 6400 / 6600 / 6800 / 7000 / 7200 / 7600 MHz
Maximum capacity: 256 GB
Memory architecture: Dual-channel

Graphics
Integrated graphics support: Yes
Graphics: Depends on CPU
Multi-GPU support: No

Audio
Audio chipset: Realtek ALC897
Audio channels: 7.1

Connectivity
LAN: 10/100/1000 Mbps
LAN chipset: Realtek RTL8111H
Wireless: Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth
Wi-Fi chipset: Realtek RTL8851BE

Expansion & Storage
Expansion slots: PCI Express x16 (4)
Storage connectors: M.2 x3, SATA III x4

Internal Connectors
Q-Flash Plus button x1
USB 2.0 headers x3
USB 3.2 Gen 1 header x1
USB-C 3.2 Gen 1 header x1
Addressable RGB (5V) x3
AIO pump (4-pin) x1
24-pin ATX power x1
8-pin CPU power x1
Front panel audio (AAFP) x1
CPU fan (4-pin) x1
Front panel header x1
RGB header x1
System fan (4-pin) x3
COM port header x1
TPM header x1
Clear CMOS jumper x1

Rear I/O Panel
DisplayPort x1
HDMI x1
PS/2 (keyboard/mouse) x1
RJ-45 x1
USB 2.0 x6
USB 3.2 Gen 1 x2
USB-C 3.2 Gen 1 x1
Wi-Fi antenna connectors x3
Audio jacks x3

Included Accessories
Wi-Fi antenna x2
