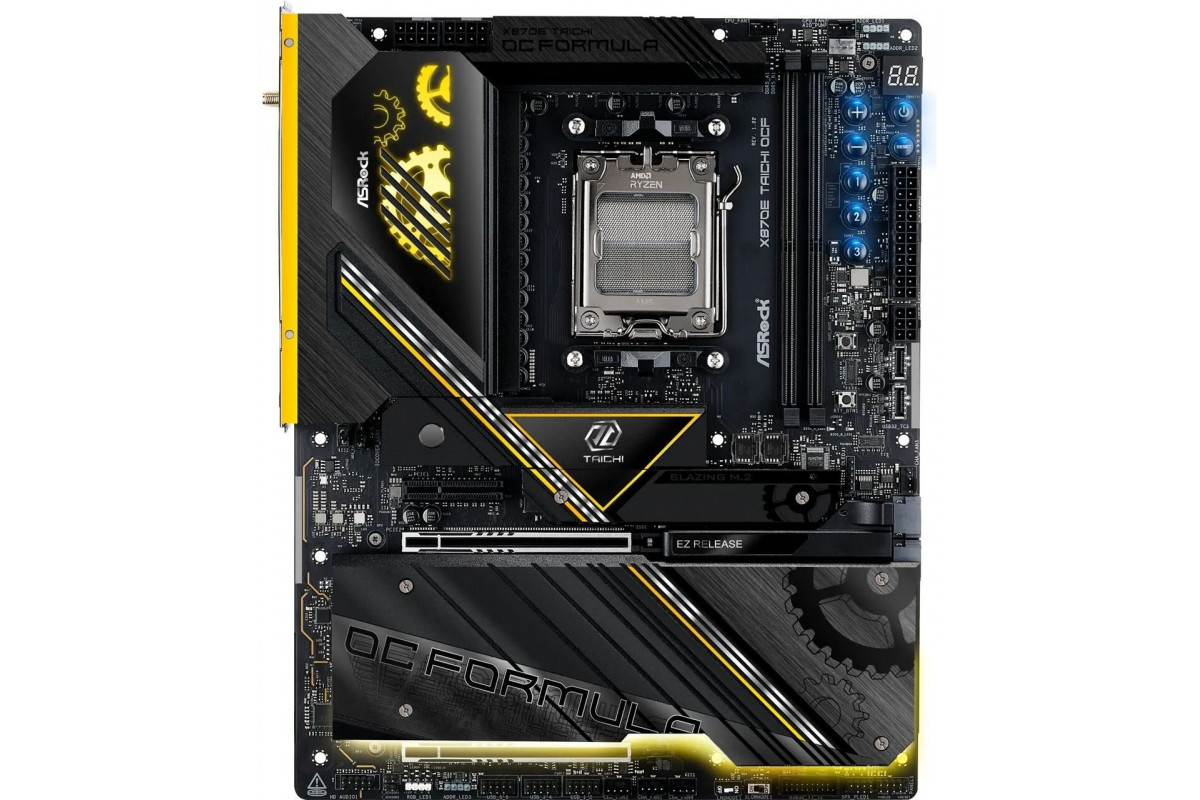

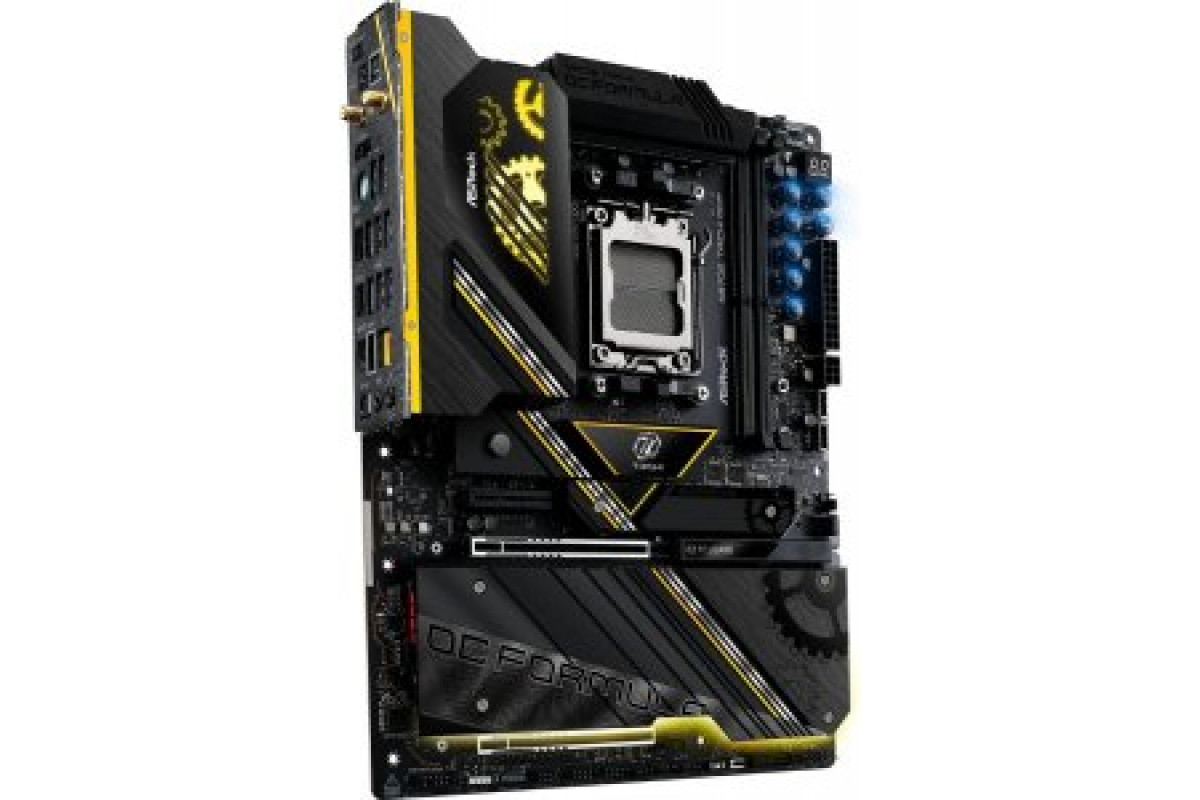

AMD X870 ASRock X870E TAICHI OCF

Motherboard Form Factor
ATX
Motherboard Width [mm]
244
Motherboard Depth [mm]
305
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
AMD X870
Motherboard CPU Socket
Socket AM5
Motherboard Supported Processors
AMD Ryzen
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
2
Motherboard Memory Frequency
4800 MHz 5200 MHz 5600 MHz 6000 MHz 6200 MHz 6400 MHz 6600 MHz 6800 MHz 7000 MHz 7200 MHz 7600 MHz 7800 MHz 8000 MHz 8200 MHz 8400 MHz
Motherboard Maximum Memory Capacity
128 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 4082
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
100/1000/2500/5000
Motherboard Network Card Chipset
Realtek RTL8126
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
Motherboard Expansion Slots
M.2 Wi-Fi (1 szt.) PCI Express x16 (2 szt.) PCI Express x4 (1 szt.)
Motherboard Drive Connectors
M.2 slot x6 SATA 3 x2
Motherboard Internal Connectors
Dioda Dr. Debug x1 Przełącznik trybu LN2 x1 Przycisk +/- Rapid OC x1 Przycisk NickShih's OC Profile x3 Przycisk Reset x1 Przycisk ReTry x1 Przycisk Safe Boot x1 Przycisk włączenia zasilania x1 Punkty pomiarowe V-Probe x6 USB 2.0 x3 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 2x2 x2 Złącze addressable RGB LED strip 5V x3 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 6-pin PCIe x1 Złącze ATX 8-pin 12V x2 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN 4-pin x2 Złącze czujnika termicznego x2 Złącze Power LED x1 Złącze RGB LED x1 Złącze slow mode x1 Złącze SYS FAN 4-pin x4
Motherboard Rear Panel
HDMI x1 Przełącznik BIOS Selection x1 Przycisk BIOS Flashback x1 Przycisk Clear CMOS x1 PS/2 (klawiatura/mysz) x1 RJ-45 x1 S/PDIF Optyczne x1 USB 2.0 x2 USB 3.2 Gen 2 (3.1 Gen 2) x7 USB-C 3.2 Gen 2 (3.1 Gen 2) x1 USB4 x2 Złącze anteny WiFi x2 Złącze audio x2
Motherboard Included Accessories
Antena WiFi Przewód czujnika termicznego x2 Przewód SATA III x2 Splitter ARGB LED Wentylator
