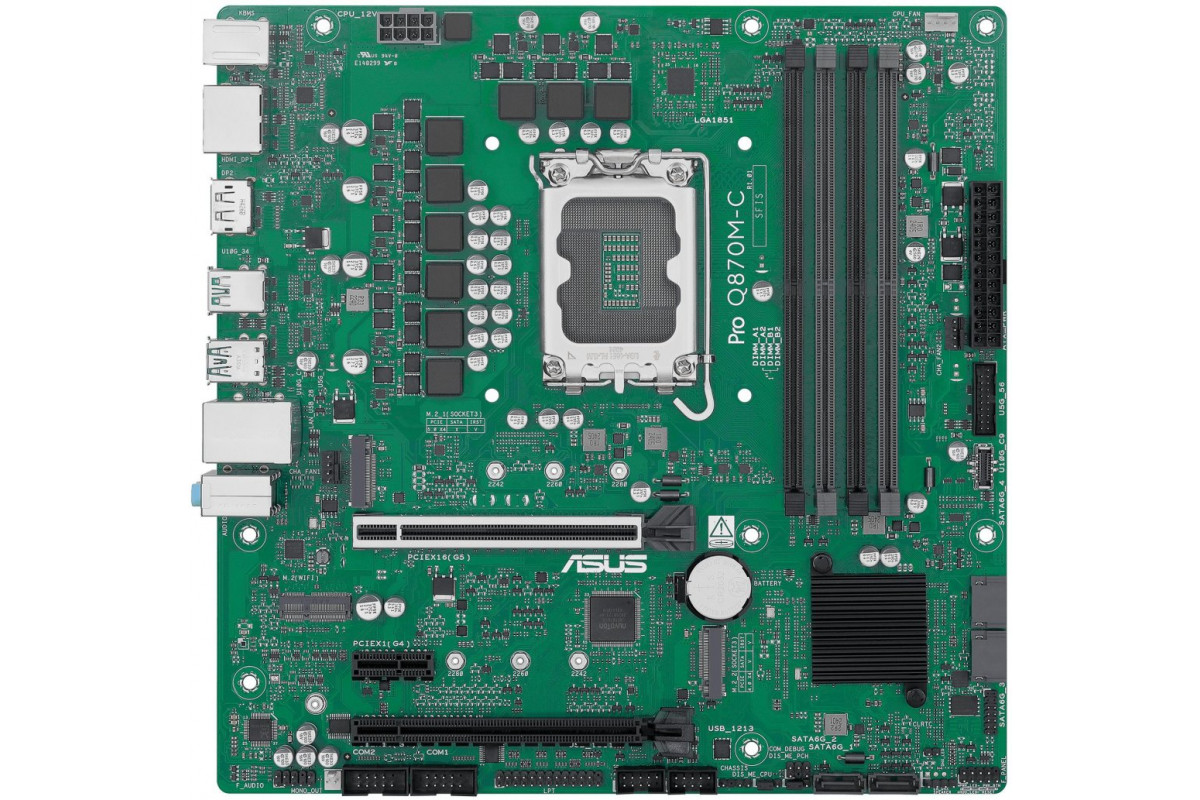

Intel Q870 Asus PRO Q870M-C-CSM

Motherboard Form Factor
Micro ATX
Motherboard Width [mm]
244
Motherboard Depth [mm]
244
Motherboard Color
Green
Motherboard Usage
Other
Motherboard Chipset
Intel Q870
Motherboard CPU Socket
Socket 1851
Motherboard Supported Processors
Intel Core Ultra 5 Intel Core Ultra 7 Intel Core Ultra 9
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
4800 MHz 5200 MHz 5600 MHz 6000 MHz 6200 MHz 6400 MHz
Motherboard Maximum Memory Capacity
256 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000
Motherboard Network Card Chipset
Intel I219-LM
Motherboard Wireless Connectivity
No
Motherboard Expansion Slots
M.2 Wi-Fi (1 szt.) PCI Express x1 (1 szt.) PCI Express x16 (2 szt.)
Motherboard Drive Connectors
M.2 slot x2 SATA 3 x4
Motherboard Internal Connectors
DIS ME CPU x1 DIS ME PCH x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 2 (3.1 Gen 2) x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x1 Złącze audio panelu przedniego (AAFP) x1 Złącze Clear CMOS x1 Złącze CPU FAN 4-pin x1 Złącze czujnika otwarcia obudowy x1 Złącze głośnika x1 Złącze MONO out x1 Złącze przedniego panelu x1 Złącze równoległe (LPT) x1 Złącze SYS FAN 4-pin x2 Złącze szeregowe (COM) x2
Motherboard Rear Panel
DisplayPort x2 HDMI x1 PS/2 (klawiatura) x1 PS/2 (mysz) x1 RJ-45 x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB 3.2 Gen 2 (3.1 Gen 2) x2 USB-C 3.2 Gen 2 (3.1 Gen 2) x1 Złącze audio x3
Motherboard Included Accessories
Osłona I/O Przewód SATA III x2 Śruby do modułu M.2
