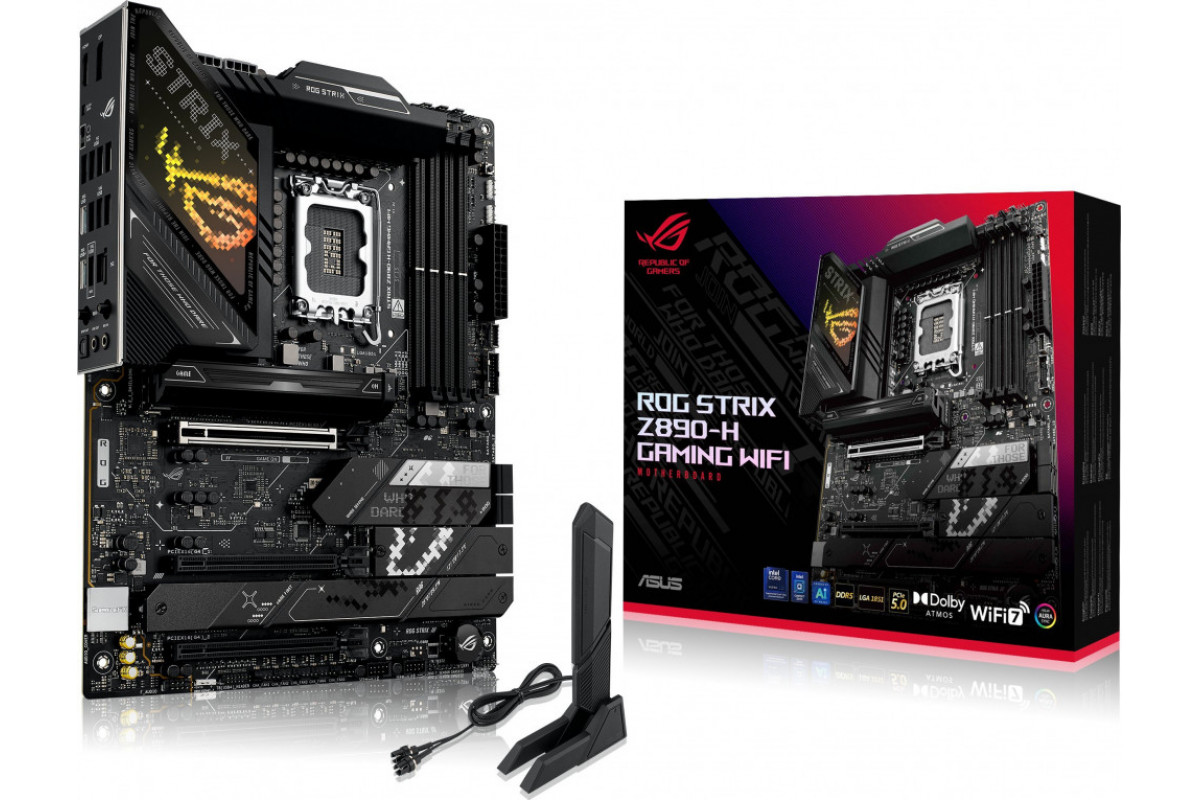

Asus ROG STRIX Z890-H GAMING WIFI

Physical

• Form factor: ATX

• Width: 305 mm

• Depth: 244 mm

Technical

• Usage: Gaming

• Chipset: Intel Z890

• CPU socket: Socket 1851

• Supported processors: Intel Core Ultra 5, Intel Core Ultra 7, Intel Core Ultra 9

• RAID support: RAID 0, RAID 1, RAID 10, RAID 5

Memory

• Memory standard: DDR5

• Slot type: U-DIMM

• Number of memory slots: 4

• Supported memory frequencies: 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 6800 MHz, 7000 MHz, 7200 MHz, 7600 MHz, 7800 MHz, 8000 MHz, 8200 MHz, 8400 MHz, 8600 MHz, 9066 MHz (OC)

• Maximum memory capacity: 256 GB

• Multi-channel architecture: Dual-Channel

Graphics

• Integrated GPU support: Yes (depends on processor)

• Multi-GPU support: No

Audio

• Audio chipset: Realtek ALC1220P

• Audio channels: 7.1

Networking

• Integrated LAN: 100/1000/2500/5000 Mbps

• Network chipsets: Realtek 2.5GbE, MediaTek Wi-Fi 7 MT7925

• Wireless: Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be), Bluetooth

Expansion Slots

• PCI Express x16: 3

Storage Interfaces

• M.2 slots: 4

• SATA III: 4

Internal Connectors

• Power button: 1

• USB 2.0 headers: 2

• USB 3.2 Gen 1 (3.0/3.1 Gen 1) header: 1

• USB-C 3.2 Gen 2x2 header: 1

• AIO_PUMP 4-pin: 1

• ATX 24-pin 12V: 1

• ATX 8-pin 12V: 2

• Front panel audio (AAFP): 1

• AURA Addressable Gen 2 headers: 3

• CPU FAN 4-pin: 1

• CPU_OPT FAN 4-pin: 1

• Chassis intrusion sensor: 1

• Thermal sensor header: 1

• Thunderbolt 4 header: 1

• Front panel header: 1

• SYS FAN 4-pin: 5

• CPU/DRAM overvoltage jumper: 1

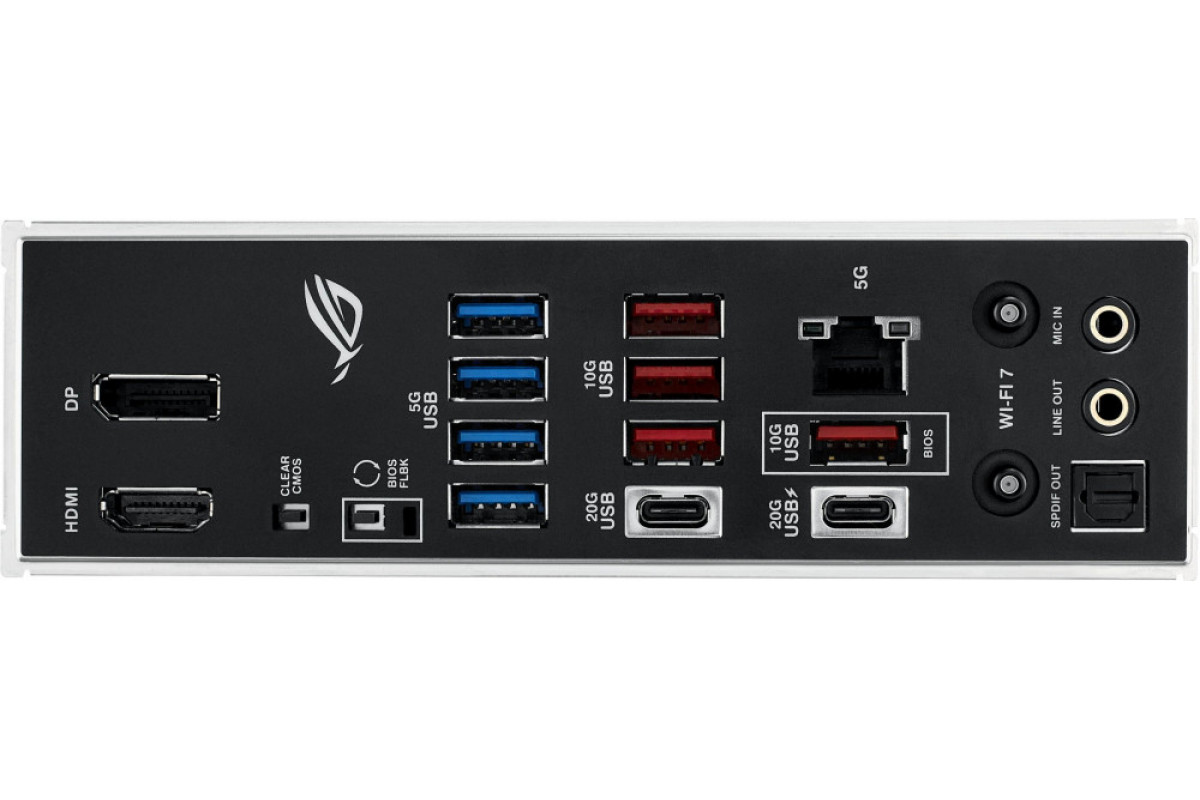

Rear I/O Panel

• DisplayPort: 1

• HDMI: 1

• BIOS Flashback button: 1

• Clear CMOS button: 1

• RJ-45 LAN: 1

• Optical S/PDIF: 1

• USB 3.2 Gen 1 (3.0/3.1 Gen 1): 4

• USB 3.2 Gen 2 (3.1 Gen 2): 4

• USB-C 3.2 Gen 2x2: 2

• Wi-Fi antenna connectors: 2

• Audio jacks: 2

Accessories Included

• Wi-Fi antenna

• Keychain

• Cable ties

• 2 × SATA III cables

• M.2 screws

• Thermal pads
