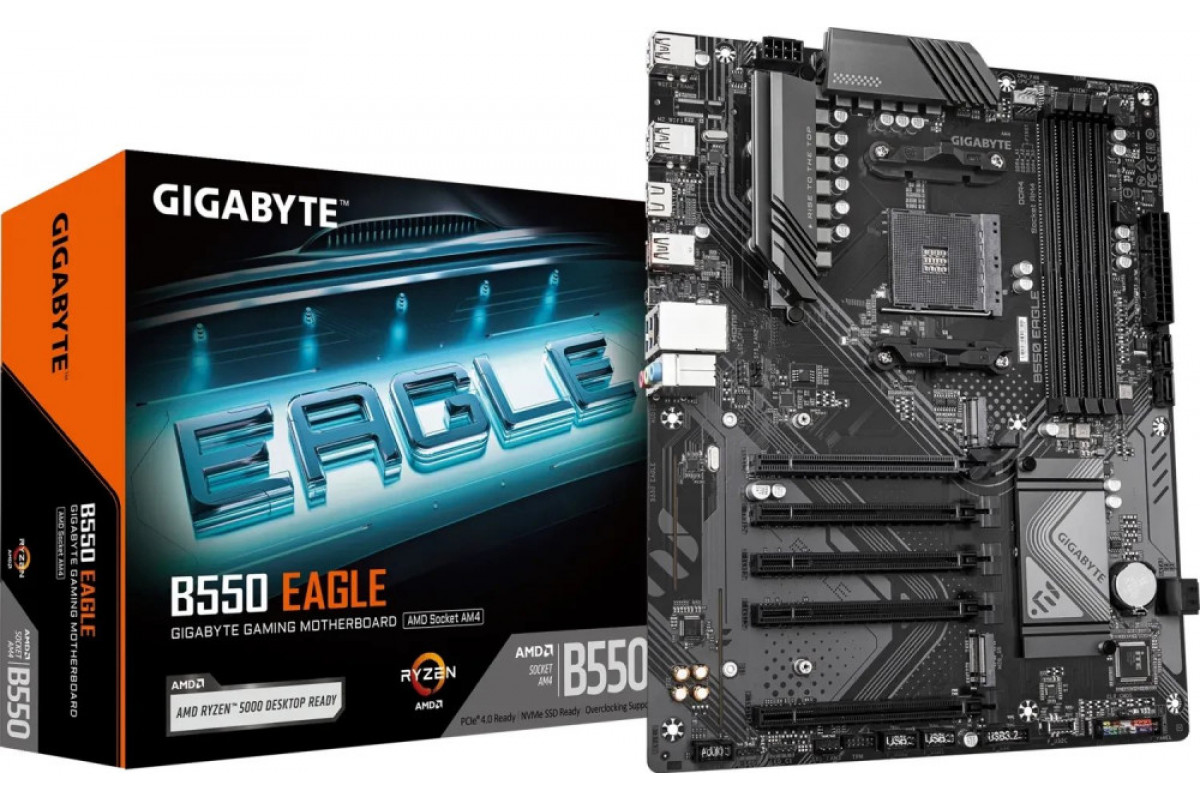

Gigabyte B550 EAGLE

Physical
Form factor: ATX
Width: 244 mm
Depth: 305 mm
Color: Black

Technical
Intended use: Gaming
Chipset: AMD B550
CPU socket: Socket AM4
Supported processors: AMD Ryzen
RAID controller: RAID 0 / 1 / 10 / 5

Memory
Memory standard: DDR4
Module type: U-DIMM
Memory slots: 4
Supported memory speeds: 2133 / 2400 / 2667 / 2933 / 3200 MHz
Maximum memory: 128 GB
Multi-channel architecture: Dual-channel

Graphics
Integrated graphics support: Yes
Graphics chipset: Depends on processor
Multi-GPU support: No

Audio
Audio chipset: Realtek
Audio channels: 7.1

Networking
Integrated LAN: 10/100/1000
LAN chipset: Realtek GbE
Wireless connectivity: No

Connectors
Expansion slots: PCI Express x16 ×5
Storage connectors: M.2 ×2, SATA III ×4

Internal connectors:
USB 2.0 ×2
USB-C 3.2 Gen 1 ×1
Addressable RGB LED strip 5V ×2
AIO_PUMP 4-pin ×1
ATX 24-pin ×1
ATX 8-pin ×1
Front panel audio (AAFP) ×1
Clear CMOS ×1
CPU FAN 4-pin ×1
Front panel header ×1
RGB LED ×2
SYS FAN 4-pin ×3
TPM header ×1

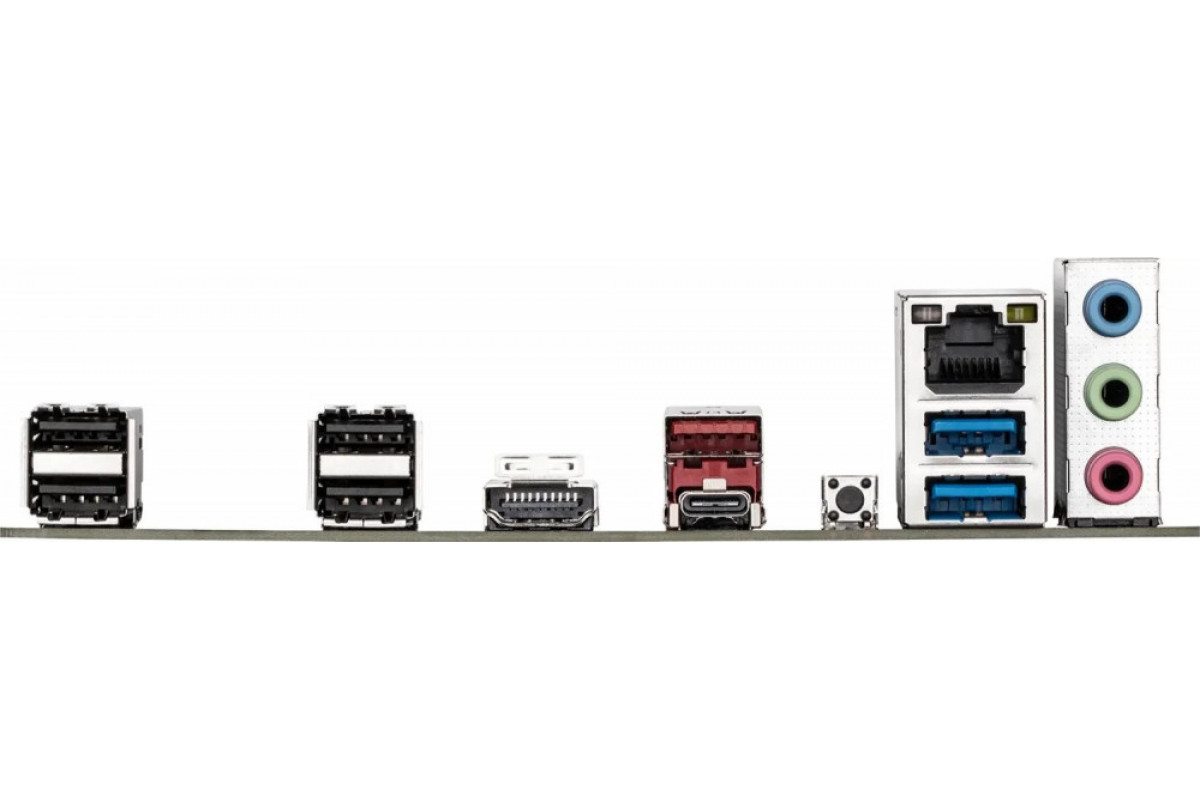

Rear panel:
HDMI ×1
Q-Flash Plus button ×1
RJ-45 ×1
USB 2.0 ×4
USB 3.2 Gen 1 ×2
USB 3.2 Gen 2 ×1
USB-C 3.2 Gen 1 ×1
Audio jacks ×3
