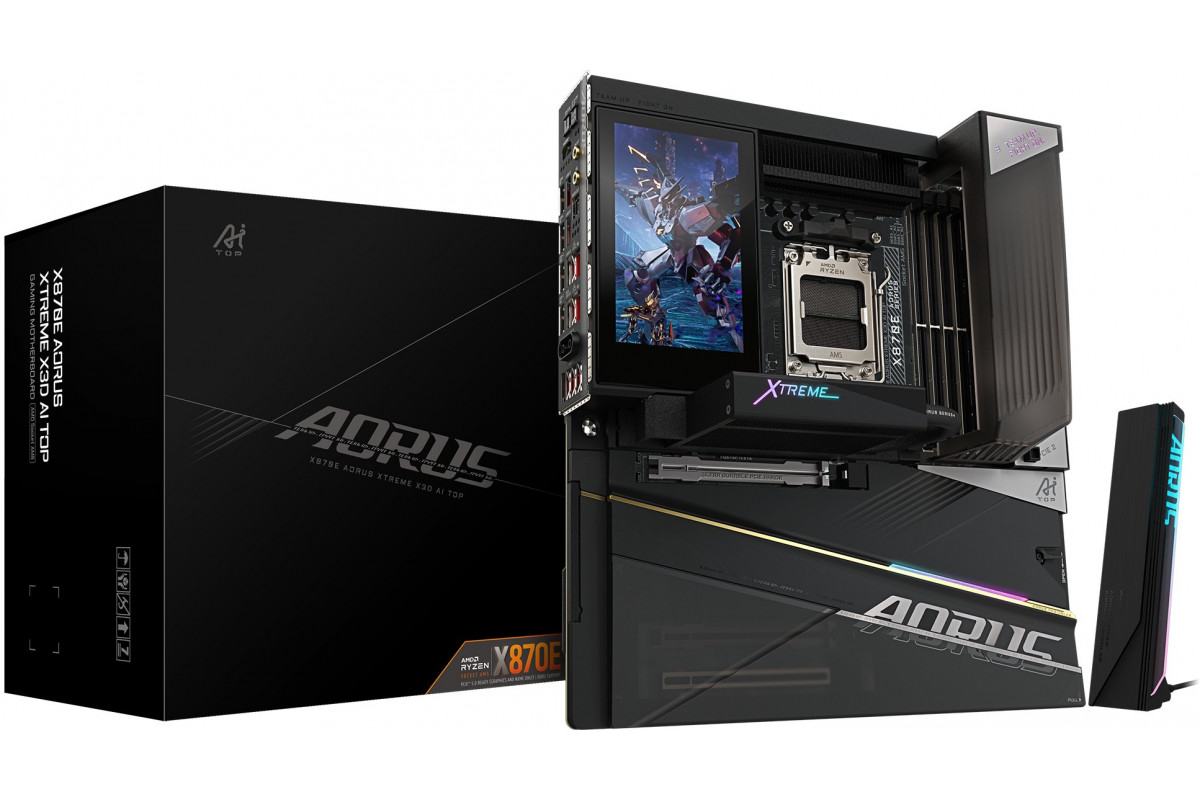

AMD X870E Gigabyte X870E AORUS XTREME X3D AI TOP

Motherboard Form Factor
Extended ATX
Motherboard Width [mm]
285
Motherboard Depth [mm]
305
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
AMD X870E
Motherboard CPU Socket
Socket AM5
Motherboard Supported Processors
AMD Ryzen
Motherboard RAID Controller
RAID 0 RAID 1
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
4400 MHz 4800 MHz 5200 MHz 5600 MHz 6000 MHz 6200 MHz 6400 MHz 6600 MHz 6800 MHz 7000 MHz 7200 MHz 7600 MHz 7800 MHz 8000 MHz 8400 MHz 8600 MHz 8800 MHz 9000 MHz
Motherboard Maximum Memory Capacity
256 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
ESS ES9280AC
Motherboard Audio Channels
2
Motherboard Integrated Network Card
100/1000/2500/5000/10000 x2
Motherboard Network Card Chipset
MediaTek Wi-Fi 7 MT7927 Realtek 10GbE
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
Motherboard Expansion Slots
PCI Express x16 (3 szt.)
Motherboard Drive Connectors
M.2 slot x5 SATA 3 x2
Motherboard Internal Connectors
Przycisk Clear CMOS x1 Przycisk Reset x1 Przycisk włączenia zasilania x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x2 USB-C 2.0 DisplayPort x1 USB-C 3.2 Gen 2 (3.1 Gen 2) x1 USB-C 3.2 Gen 2x2 x1 Złącze addressable RGB LED strip 5V x4 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x2 Złącze ATX 8-pin PCIe x1 Złącze CPU FAN 4-pin x1 Złącze czujnika termicznego x2 Złącze przedniego panelu x1 Złącze SYS FAN 4-pin x4

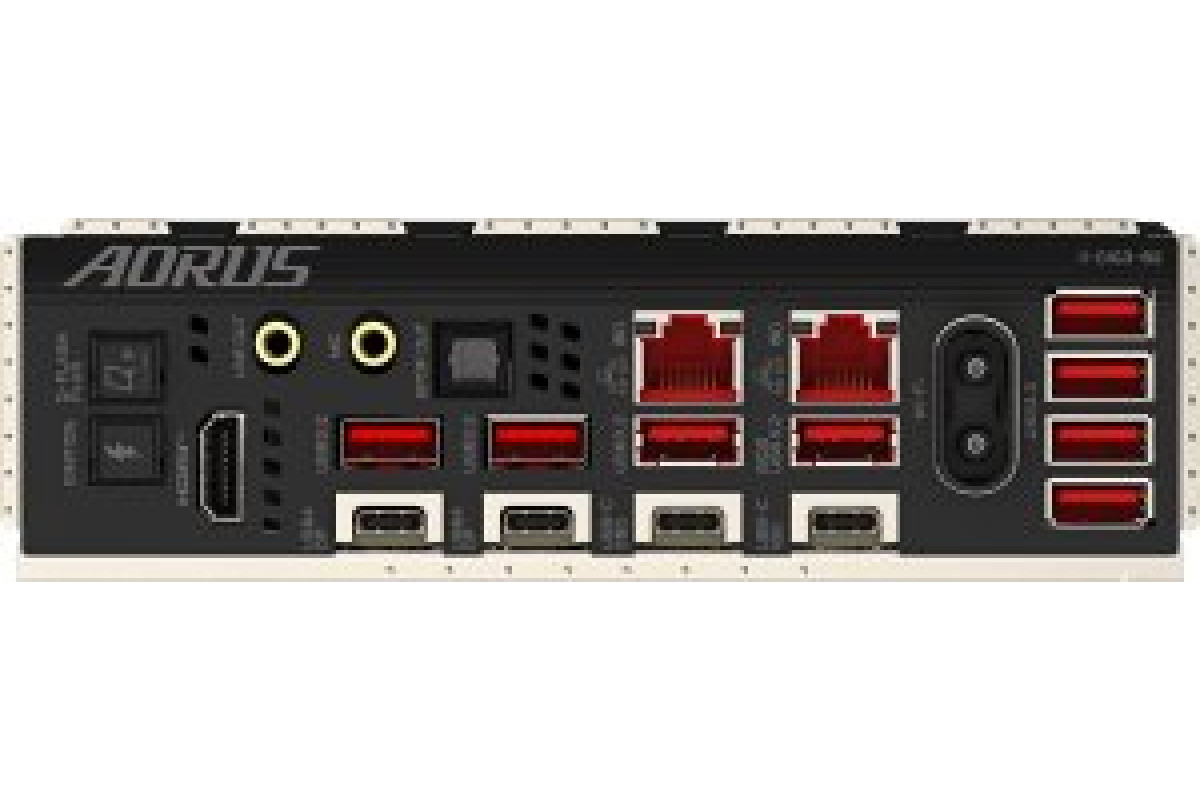

Motherboard Rear Panel
HDMI x1 Przycisk OC Ignition x1 Przycisk Q-Flash Plus x1 RJ-45 x2 S/PDIF Optyczne x1 USB 3.2 Gen 2 (3.1 Gen 2) x8 USB-C 3.2 Gen 2 (3.1 Gen 2) x1 USB-C 3.2 Gen 2x2 x1 USB4 x2 Złącze anteny WiFi x2 Złącze audio x2
Motherboard Included Accessories

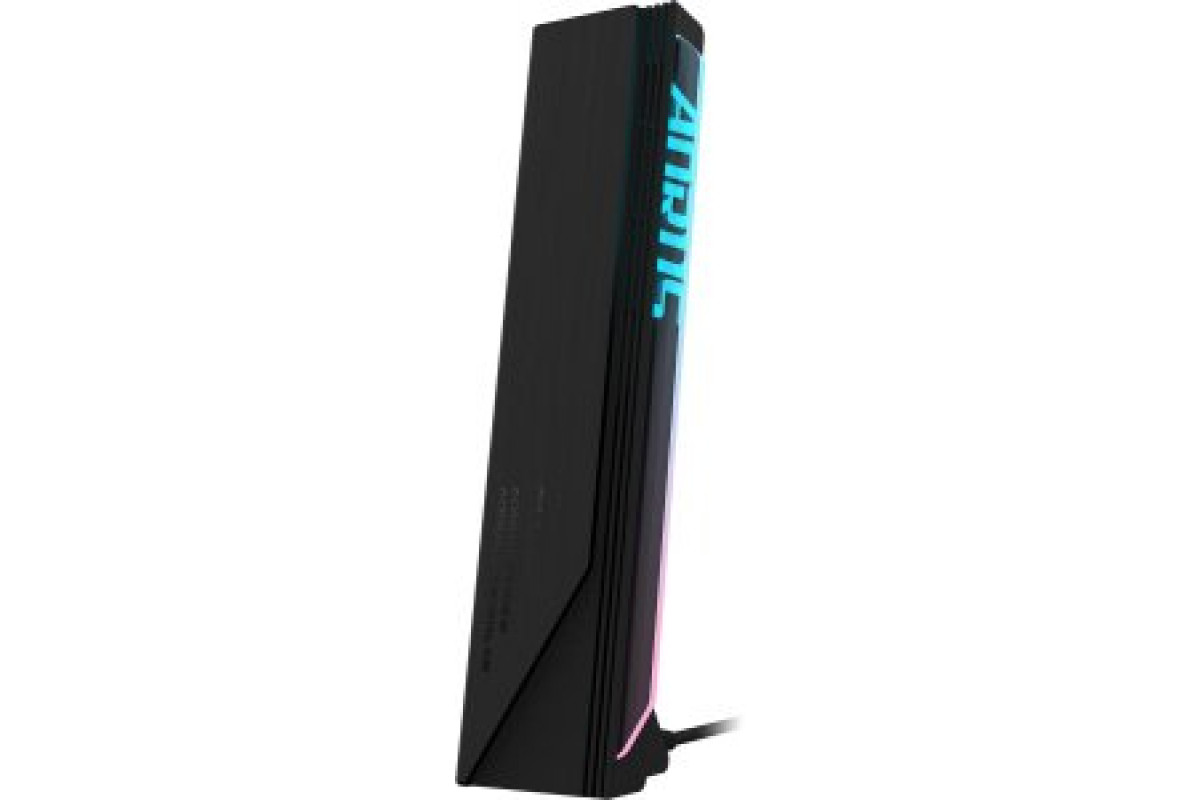

Antena WiFi
