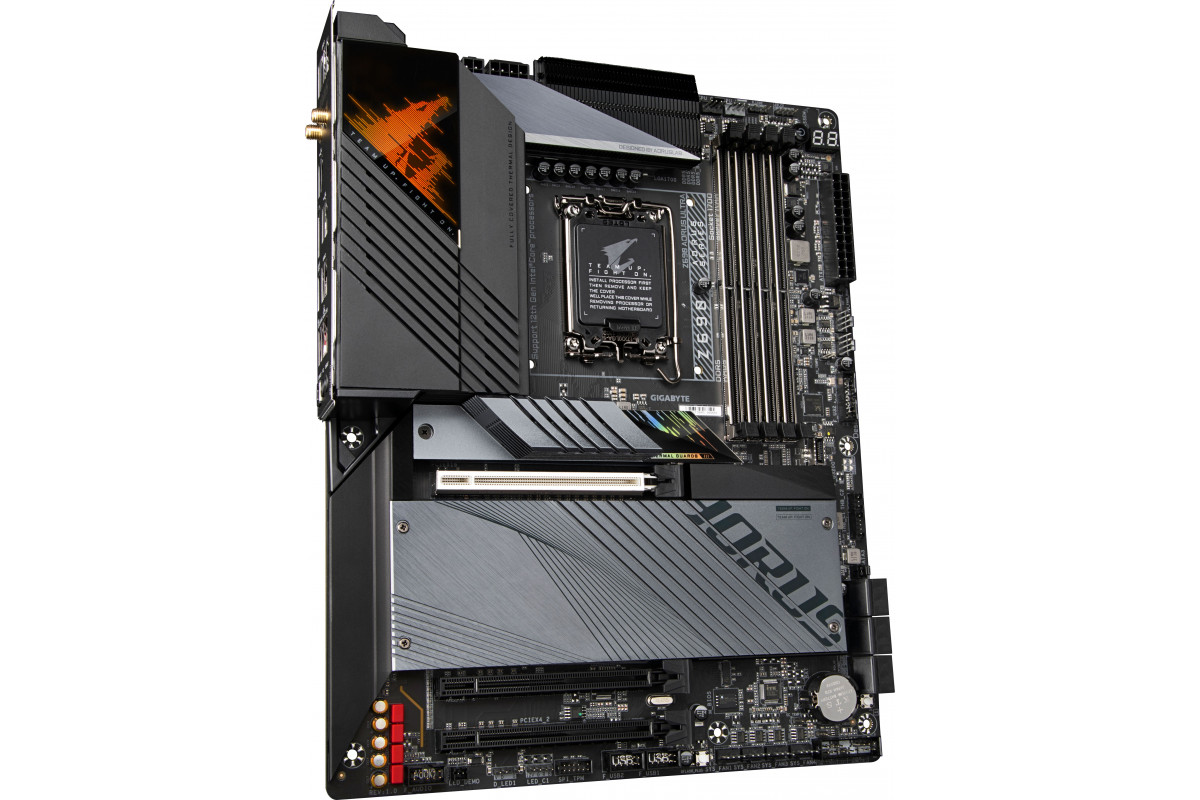

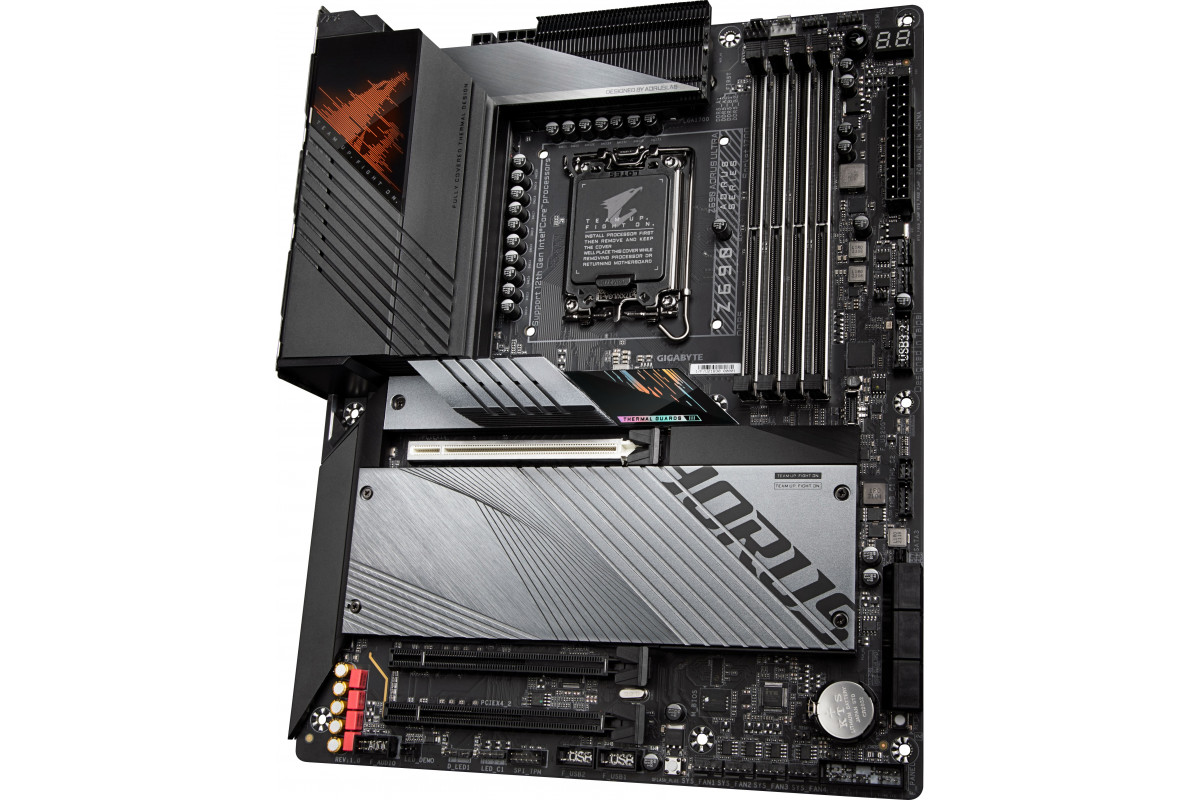

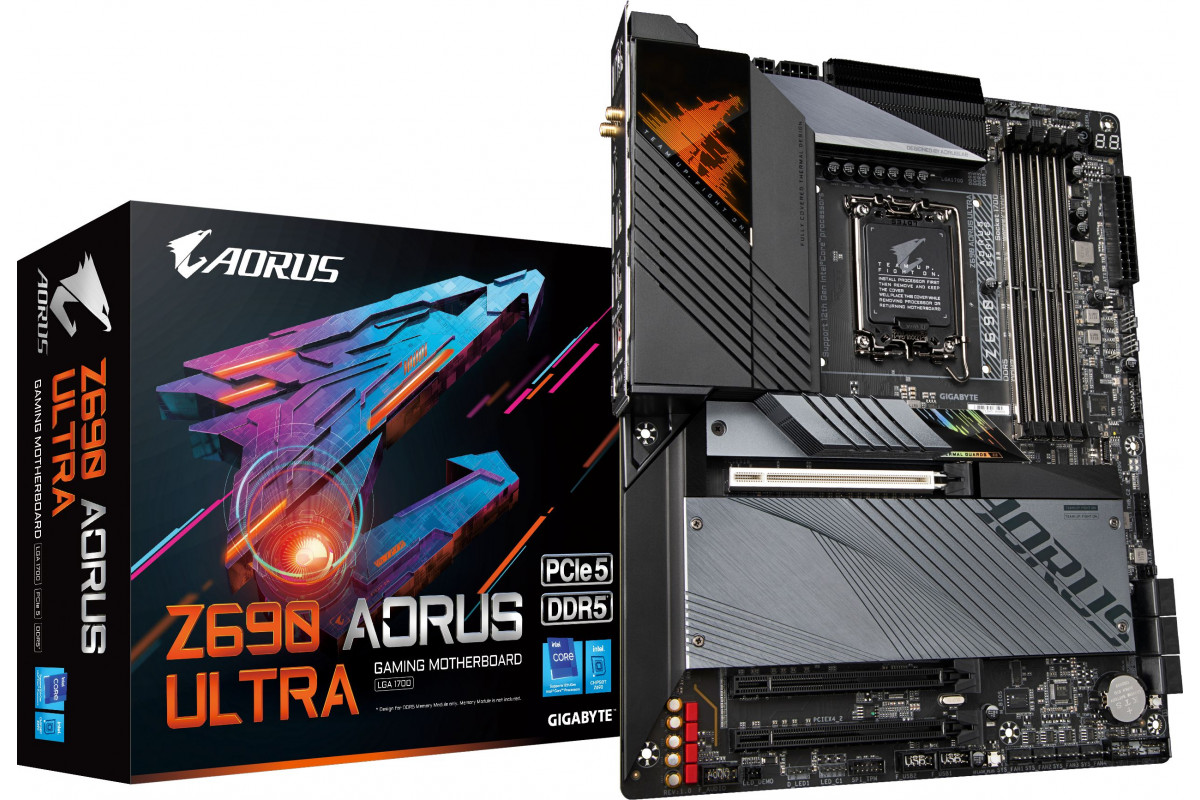

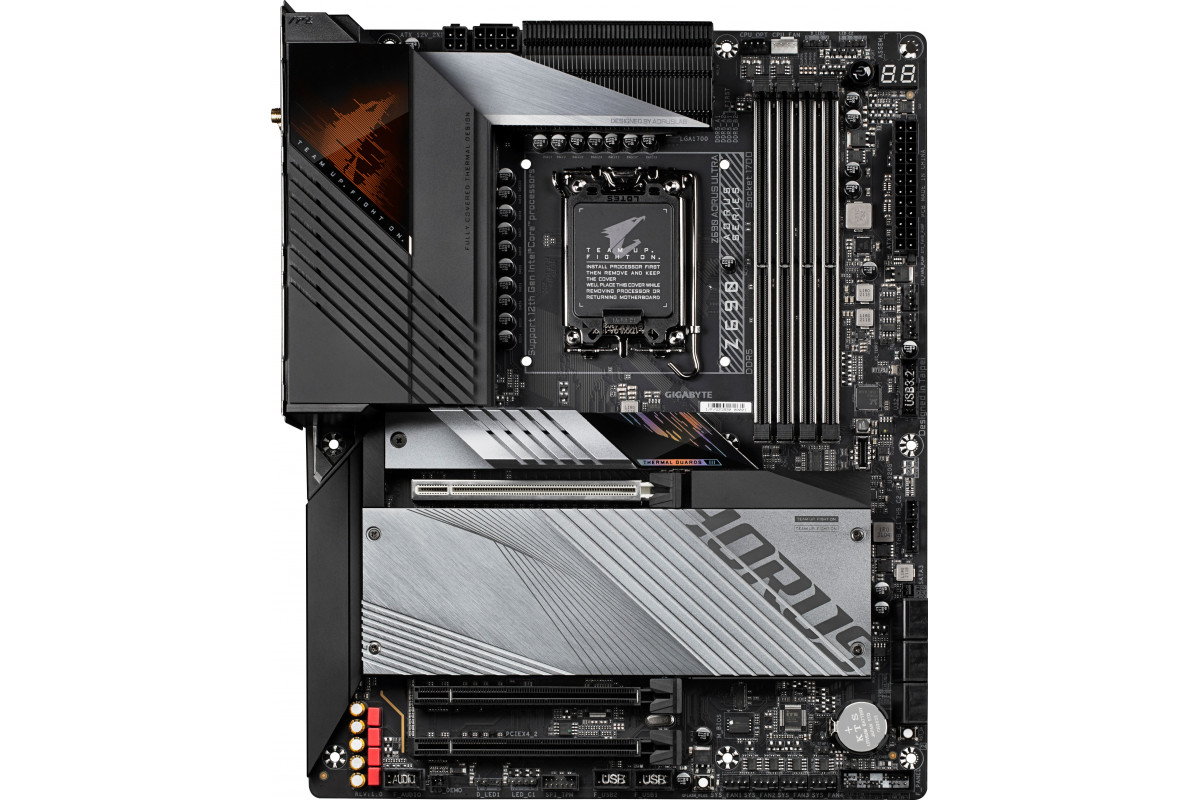

Intel Z690 Gigabyte Z690 AORUS ULTRA

Motherboard Form Factor
ATX
Motherboard Width [mm]
244
Motherboard Depth [mm]
305
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
Intel Z690
Motherboard CPU Socket
Socket 1700
Motherboard Supported Processors
Intel Celeron Intel Core i3 Intel Core i5 Intel Core i7 Intel Core i9 Intel Pentium Gold
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
4000 MHz 4800 MHz 5200 MHz 5400 MHz 5600 MHz 5800 MHz 6000 MHz 6200 MHz
Motherboard Maximum Memory Capacity
128 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
AMD CrossFireX
Motherboard Audio Chipset
Realtek ALC 4080
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000/2500
Motherboard Network Card Chipset
Intel 2.5GbE Intel Wi-Fi 6 AX201
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Motherboard Expansion Slots
PCI Express x16 (3 szt.)
Motherboard Drive Connectors
M.2 slot x4 SATA 3 x6
Motherboard Internal Connectors
Przycisk Reset x1 Przycisk włączenia zasilania x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 2x2 x1 Złącze addressable RGB LED strip 5V x2 Złącze ATX 24-pin 12V x1 Złącze ATX 4-pin 12V x1 Złącze ATX 8-pin 12V x1 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN x1 Złącze CPU/W_PUMP x1 Złącze czujnika termicznego x2 Złącze FAN x4 Złącze FAN/W_PUMP x2 Złącze pinowe Thunderbolt AIC x2 Złącze przedniego panelu x1 Złącze RGB LED x2 Złącze TPM x1 Zworka Clear CMOS x1 Zworka Reset x1

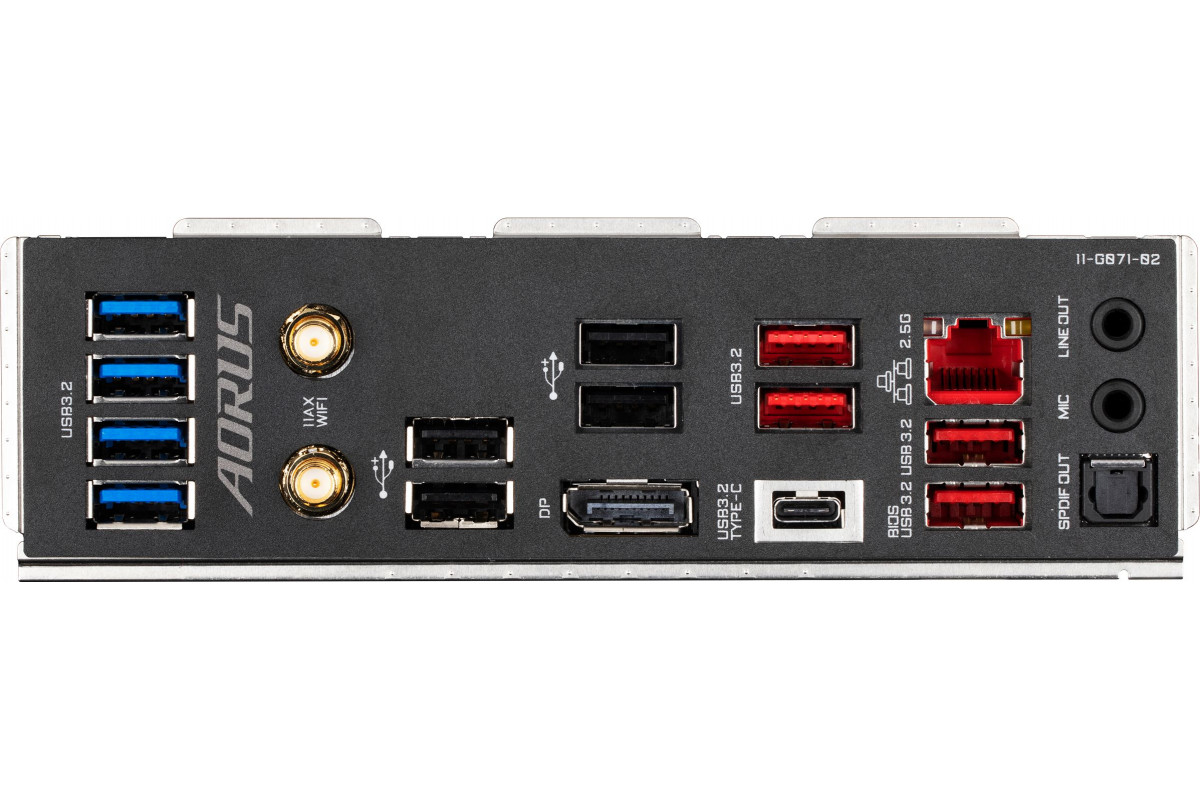

Motherboard Rear Panel
DisplayPort x1 RJ-45 x1 S/PDIF Optyczne x1 USB 2.0 x4 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x4 USB 3.2 Gen 2 (3.1 Gen 2) x4 USB-C 3.2 Gen 2x2 x1 Złącze anteny WiFi x2 Złącze audio x2
