AMD A620A MSI PRO A620AM-B EVO

Motherboard Form Factor
ATX
Motherboard Width [mm]
218
Motherboard Depth [mm]
243.8
Motherboard Color
Black
Motherboard Usage
Other
Motherboard Chipset
AMD A620A
Motherboard CPU Socket
Socket AM5
Motherboard Supported Processors
AMD Ryzen
Motherboard RAID Controller
RAID 0 RAID 1
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
2
Motherboard Memory Frequency
4800 MHz 5200 MHz 5600 MHz 6000 MHz 6200 MHz 6800 MHz
Motherboard Maximum Memory Capacity
128 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 897
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000/2500
Motherboard Network Card Chipset
Realtek RTL8125
Motherboard Wireless Connectivity
No
Motherboard Expansion Slots
PCI Express x1 (1 szt.) PCI Express x16 (1 szt.)
Motherboard Drive Connectors
M.2 slot x1 SATA 3 x2
Motherboard Internal Connectors
EZ Debug LED x4 EZ Memory Detection LED x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 1 (3.0/3.1 Gen 1) x1 Złącze addressable RGB LED strip 5V x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x1 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN 4-pin x1 Złącze czujnika otwarcia obudowy x1 Złącze przedniego panelu x2 Złącze RGB LED x1 Złącze SYS FAN 4-pin x2 Złącze szeregowe (COM) x1 Złącze TPM x1

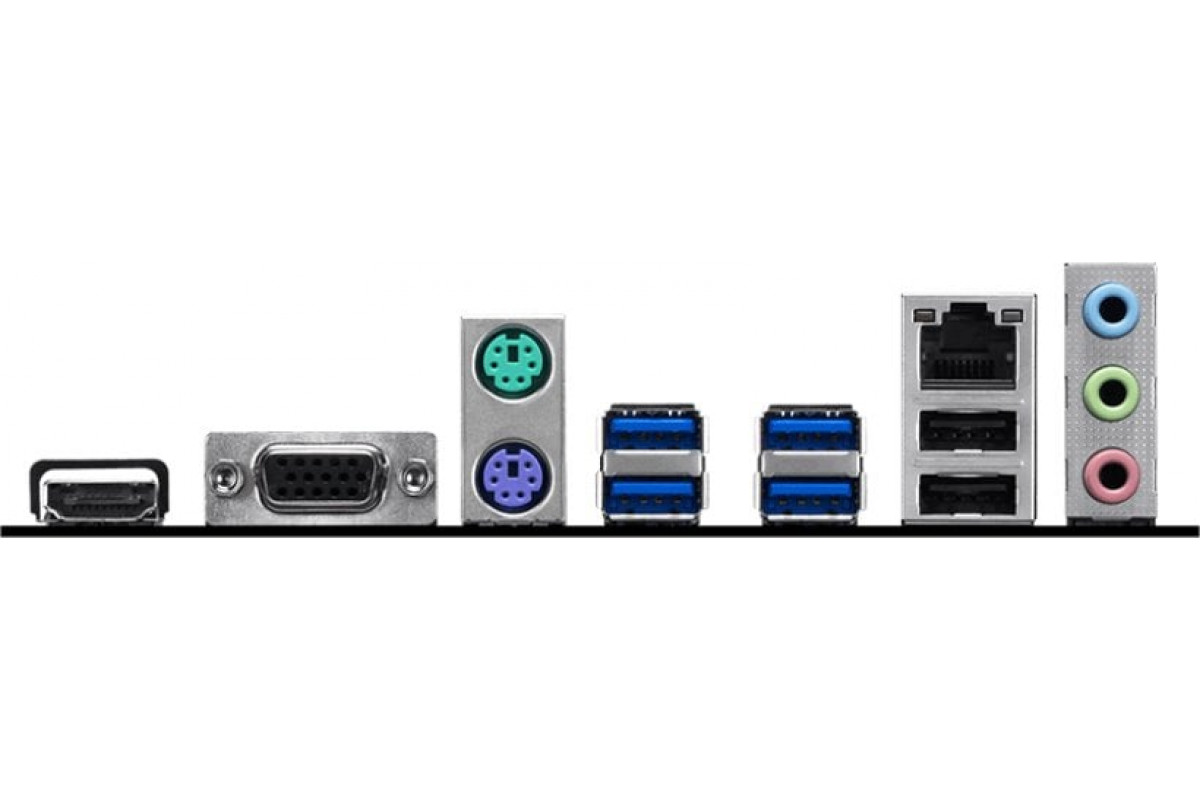

Motherboard Rear Panel
D-Sub (VGA) x1 HDMI x1 PS/2 (klawiatura) x1 PS/2 (mysz) x1 RJ-45 x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x4 Złącze audio x3
Motherboard Included Accessories
Osłona I/O Przewód SATA III Śruby do modułu M.2
