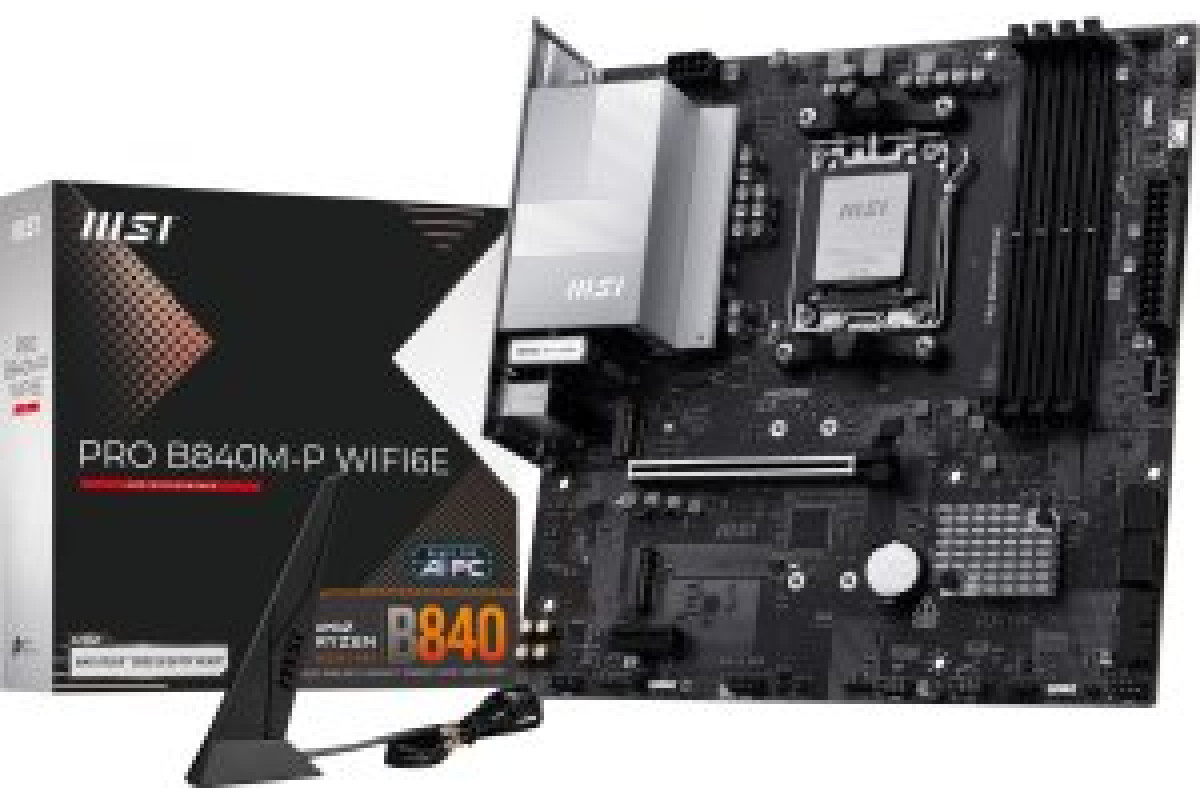

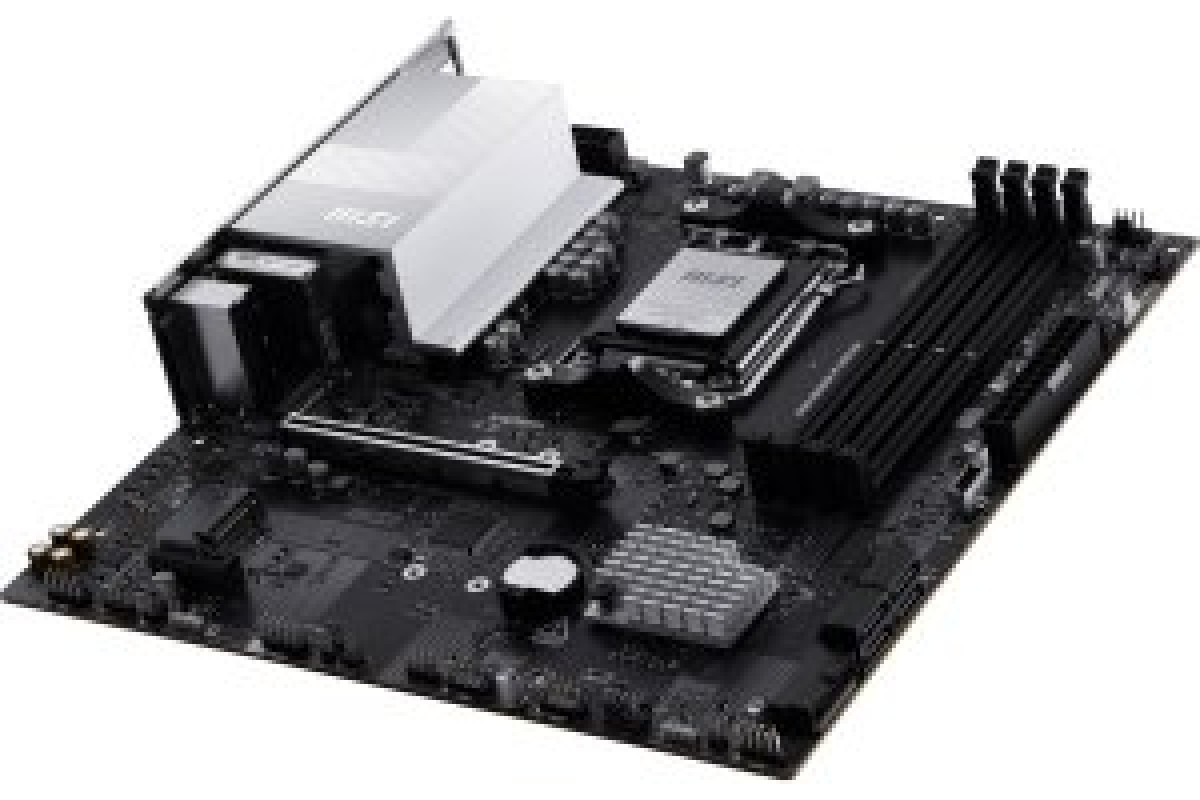

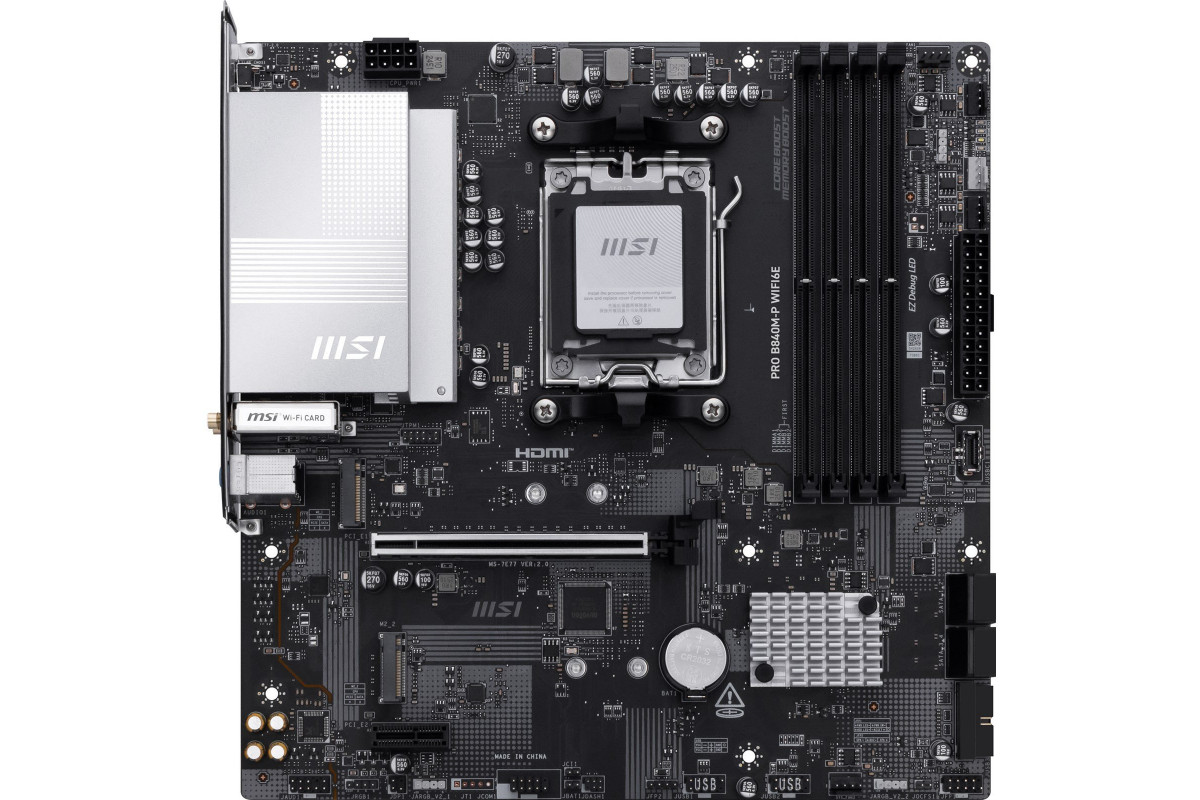

AMD B840 MSI PRO B840M-P WIFI6E

Motherboard Form Factor
Micro ATX
Motherboard Width [mm]
243.8
Motherboard Depth [mm]
243.8
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
AMD B840
Motherboard CPU Socket
Socket AM5
Motherboard Supported Processors
AMD Ryzen
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
4800 MHz 5200 MHz 5600 MHz 5800 MHz 6000 MHz 6200 MHz 6400 MHz 6600 MHz 6800 MHz 7000 MHz 7200 MHz 7400 MHz 7600 MHz 7800 MHz 8000 MHz
Motherboard Maximum Memory Capacity
256 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 897
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000/2500
Motherboard Network Card Chipset
Realtek 8125D
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Motherboard Expansion Slots
PCI Express x1 (1 szt.) PCI Express x16 (1 szt.)
Motherboard Drive Connectors
M.2 slot x2 SATA 3 x4
Motherboard Internal Connectors
EZ Debug LED x4 EZ Memory Detection LED x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 1 (3.0/3.1 Gen 1) x1 Złącze addressable RGB LED strip 5V x3 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x1 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN 4-pin x1 Złącze czujnika otwarcia obudowy x1 Złącze przedniego panelu x2 Złącze RGB LED x1 Złącze SYS FAN 4-pin x3 Złącze szeregowe (COM) x1 Złącze TPM x1 Złącze Tuning Controller x1

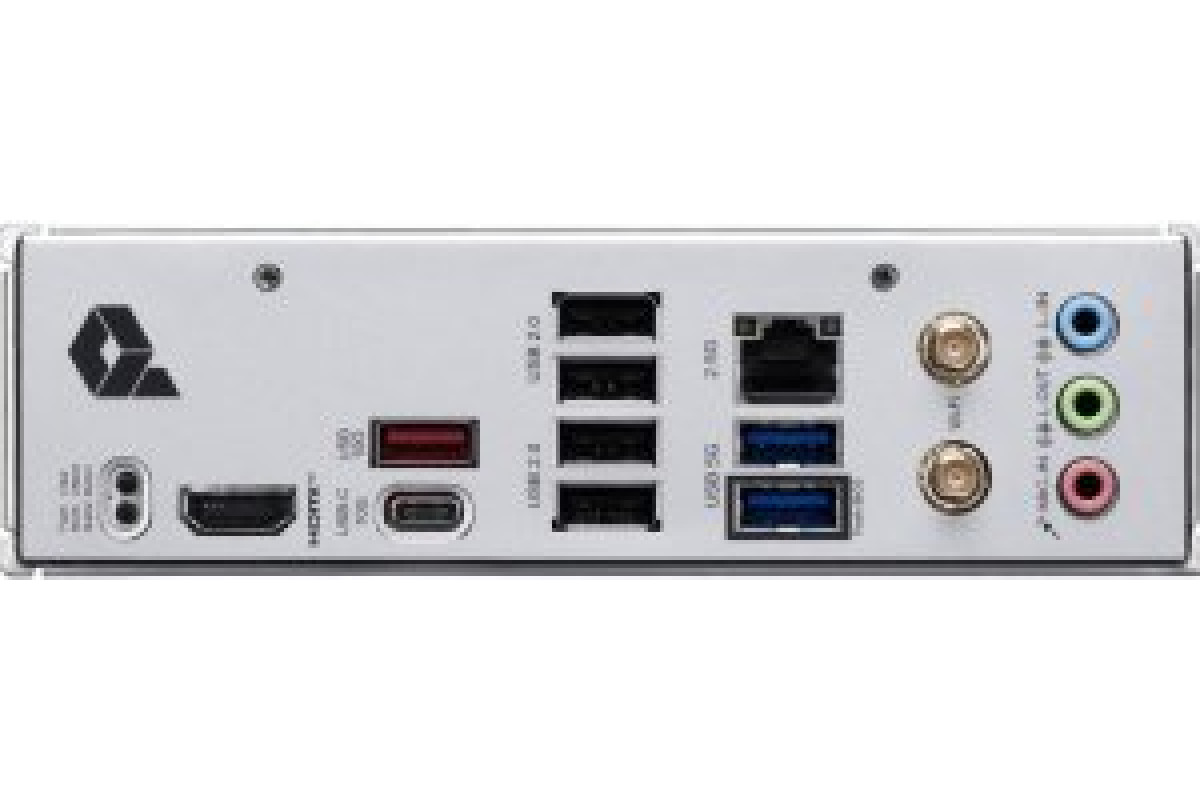

Motherboard Rear Panel
HDMI x1 Przycisk BIOS Flashback x1 Przycisk Clear CMOS x1 USB 2.0 x4 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x2 USB 3.2 Gen 2 (3.1 Gen 2) x1 USB-C 3.2 Gen 2 (3.1 Gen 2) x1 Złącze anteny WiFi x2 Złącze audio x3
Motherboard Included Accessories
Antena WiFi Śruby do modułu M.2
