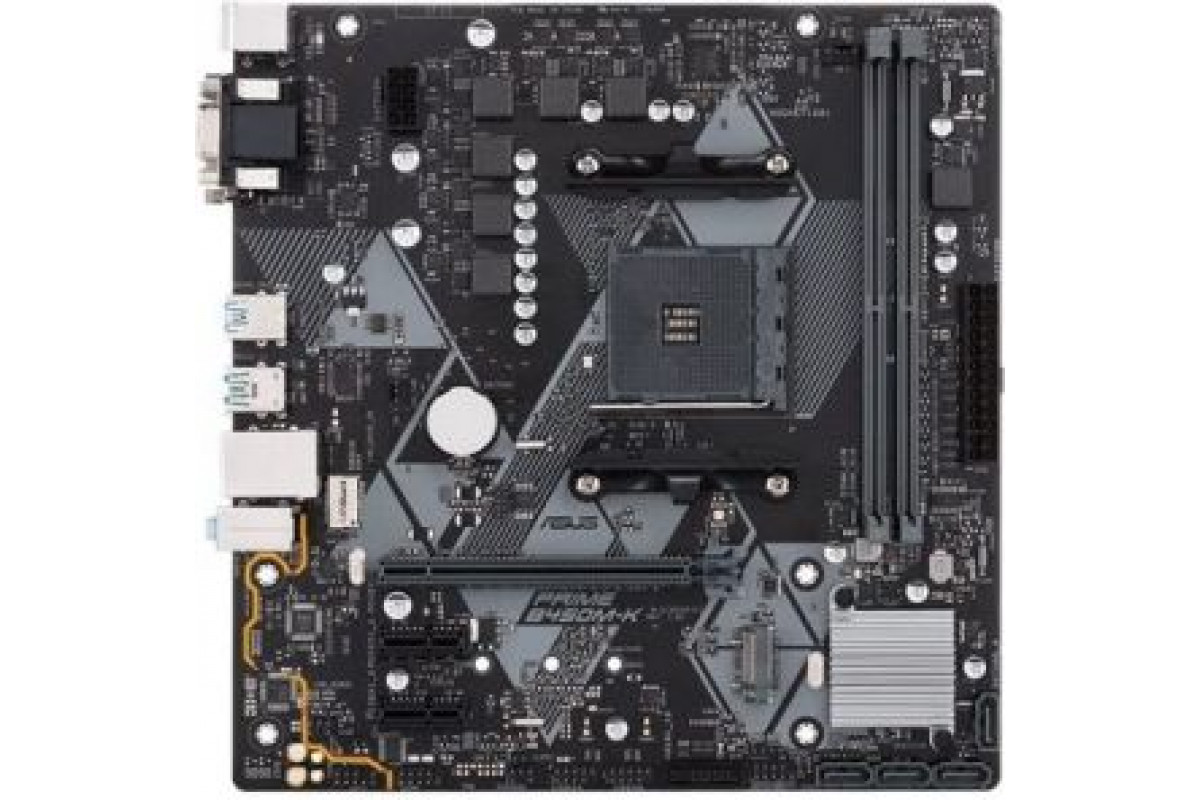

AMD B450 Asus PRIME B450M-K

Motherboard Form Factor
Micro ATX
Motherboard Width [mm]
221
Motherboard Depth [mm]
226
Motherboard Color
Black
Motherboard Usage
Other
Motherboard Chipset
AMD B450
Motherboard CPU Socket
Socket AM4
Motherboard Supported Processors
AMD Ryzen AMD seria A
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10
Motherboard Memory Standard
DDR4
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
2
Motherboard Memory Frequency
2133 MHz 2400 MHz 2666 MHz 2800 MHz 3000 MHz 3200 MHz
Motherboard Maximum Memory Capacity
32 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 887
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000
Motherboard Network Card Chipset
Realtek RTL8111H
Motherboard Wireless Connectivity
No
Motherboard Expansion Slots
PCI Express x1 (2 szt.) PCI Express x16 (1 szt.) PCI Express x8 (1 szt.)
Motherboard Drive Connectors
SATA 3 x4
Motherboard Internal Connectors
USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 Złącze ATX 8-pin 12V x1 Złącze CPU FAN 4-pin x1 Złącze EATX 24-pin 12V x1 Złącze FAN x1 Złącze głośnika x1 Złącze panelu systemu x1 Złącze przedniego panelu x1 Złącze S/PDIF x1 Złącze szeregowe (COM) x1 Zworka Clear CMOS x1

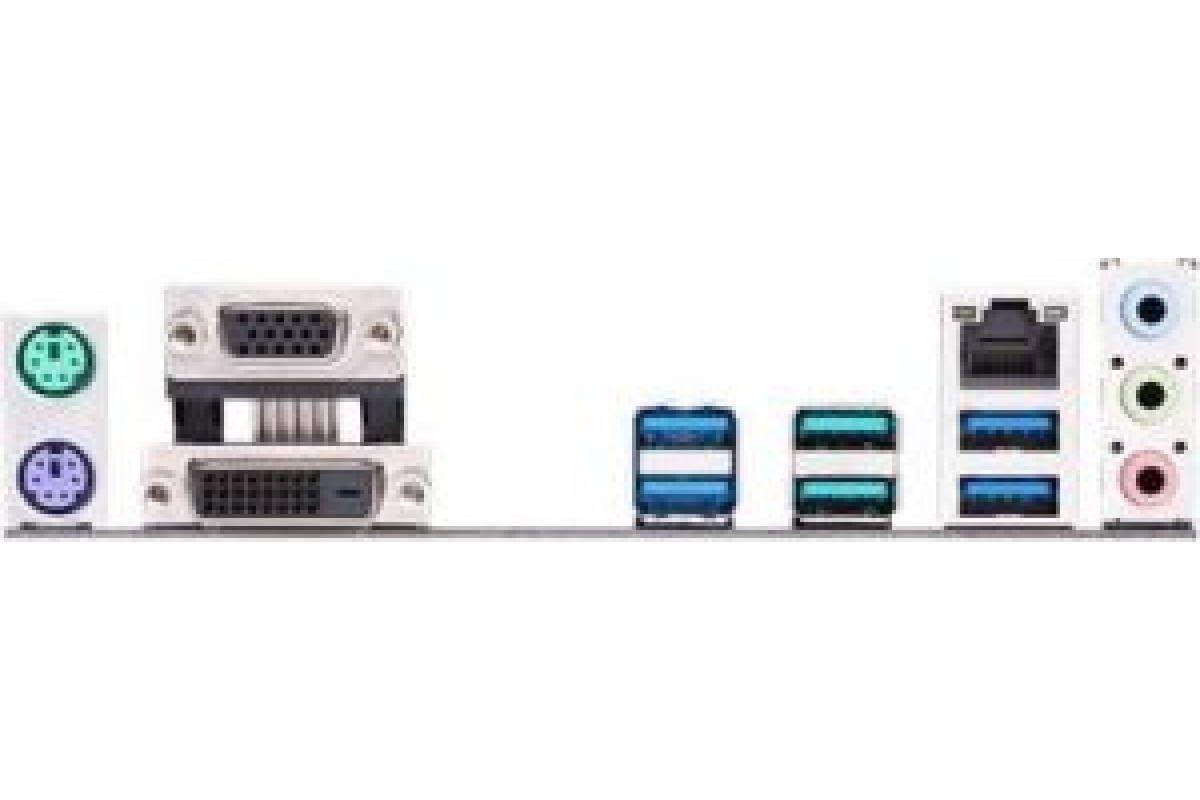

Motherboard Rear Panel
D-Sub (VGA) x1 DVI-D x1 PS/2 (klawiatura) x1 PS/2 (mysz) x1 RJ-45 x1 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x4 USB 3.2 Gen 2 (3.1 Gen 2) x2 Złącze audio x3

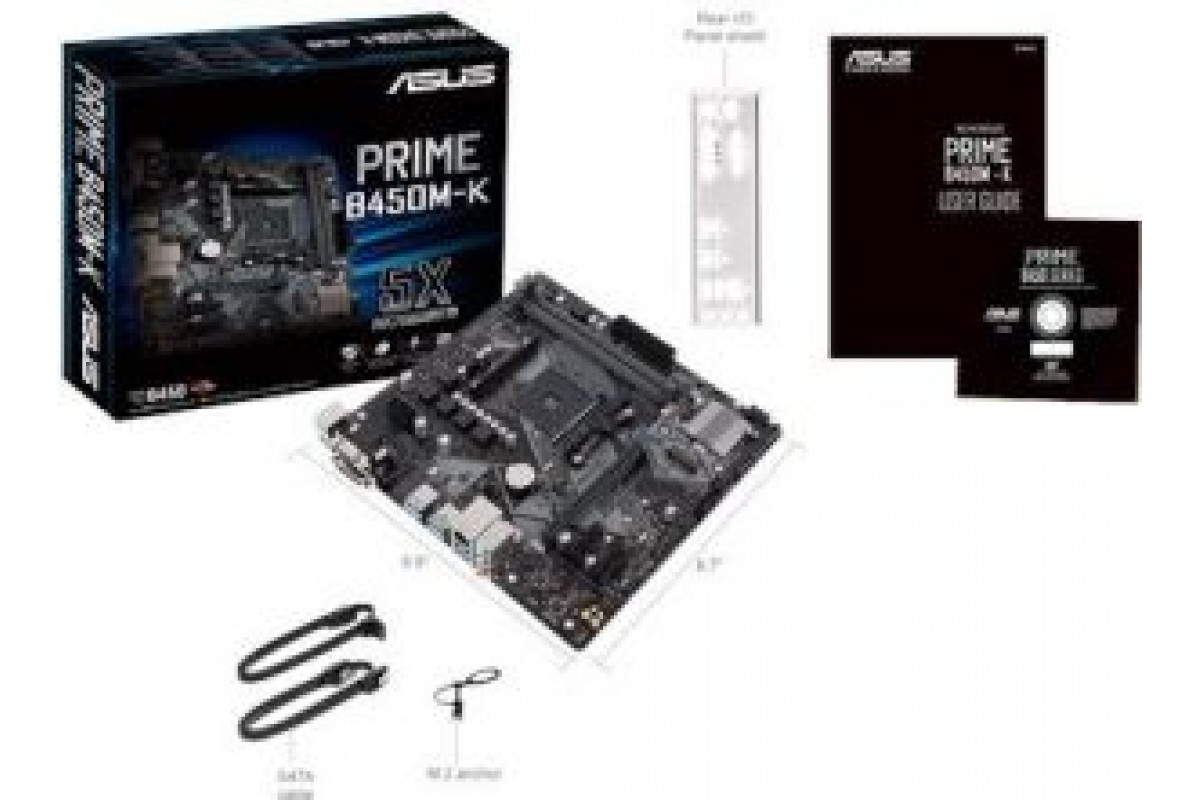

Motherboard Included Accessories
Osłona I/O Przewód SATA III x2 Śruby do modułu M.2
