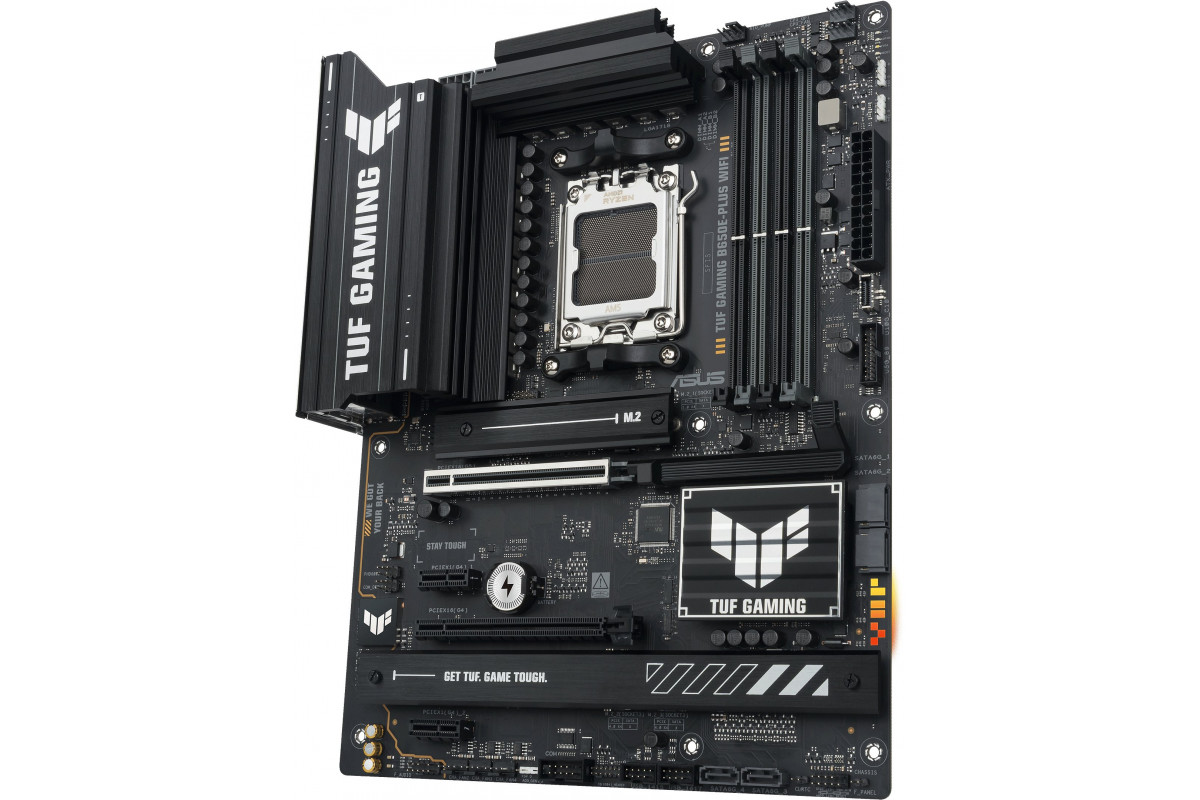

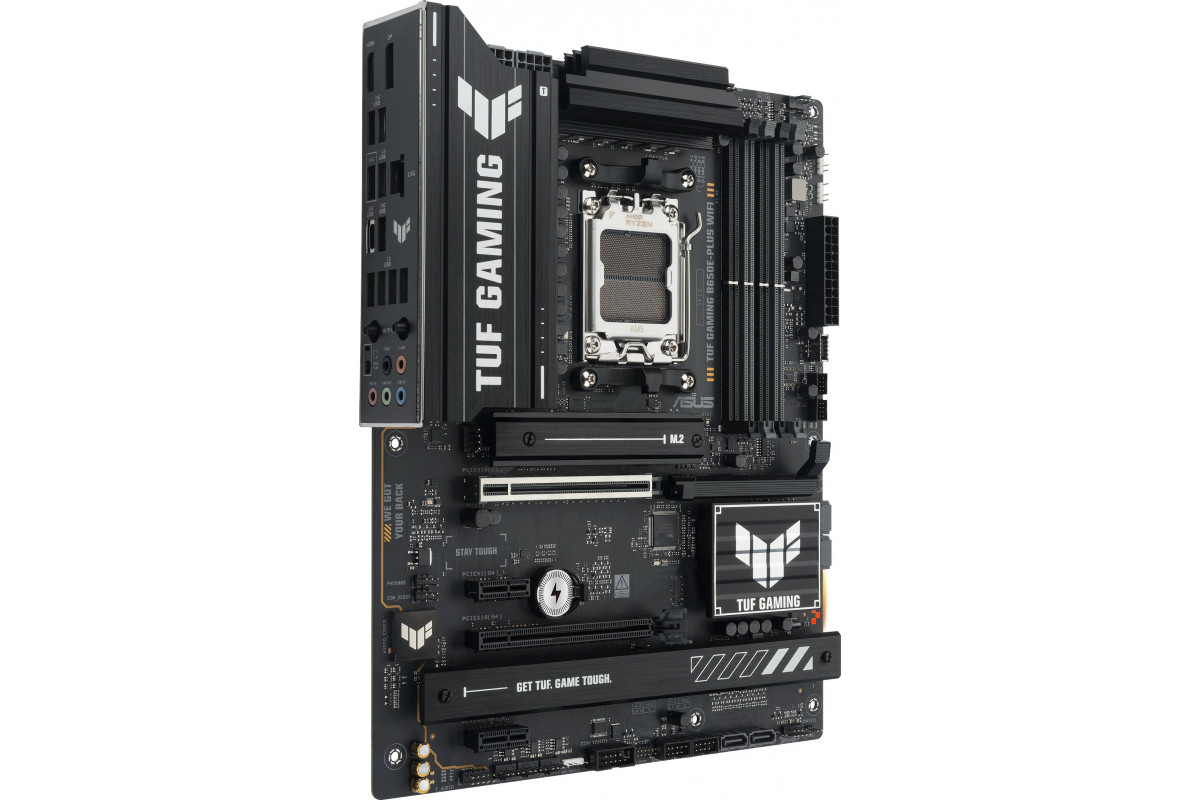

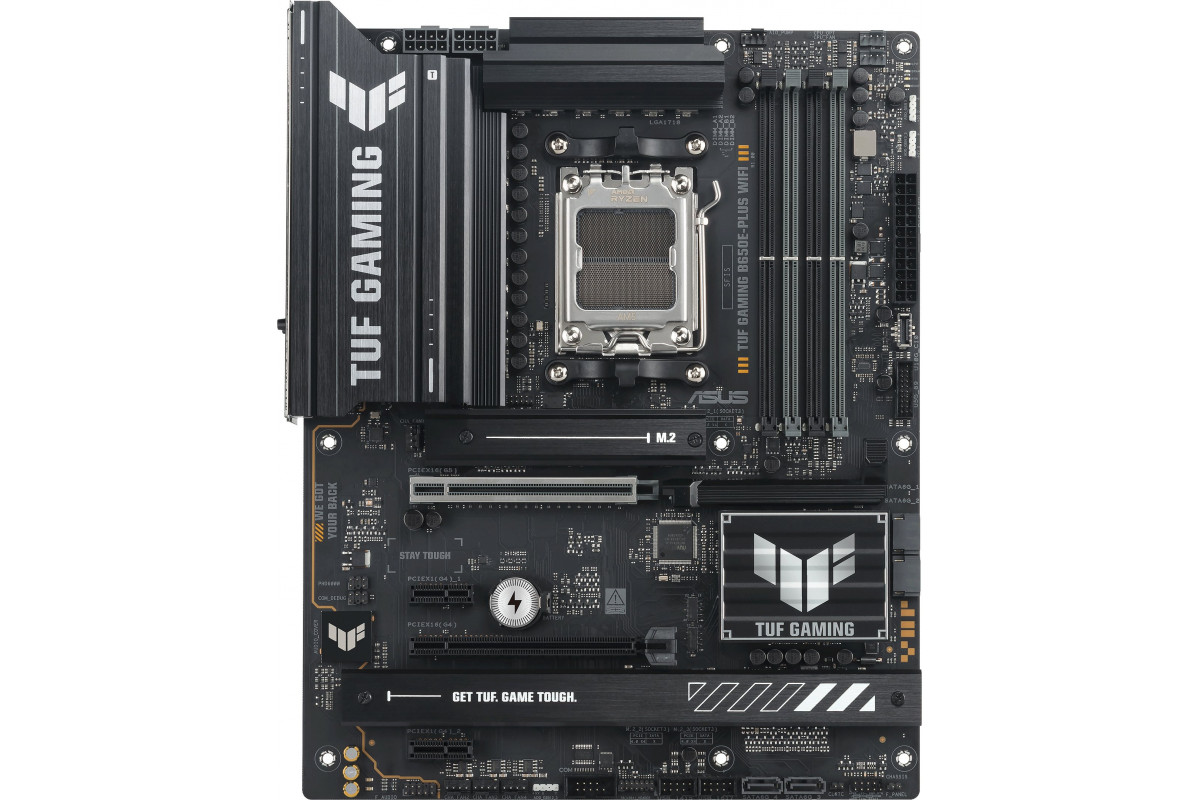

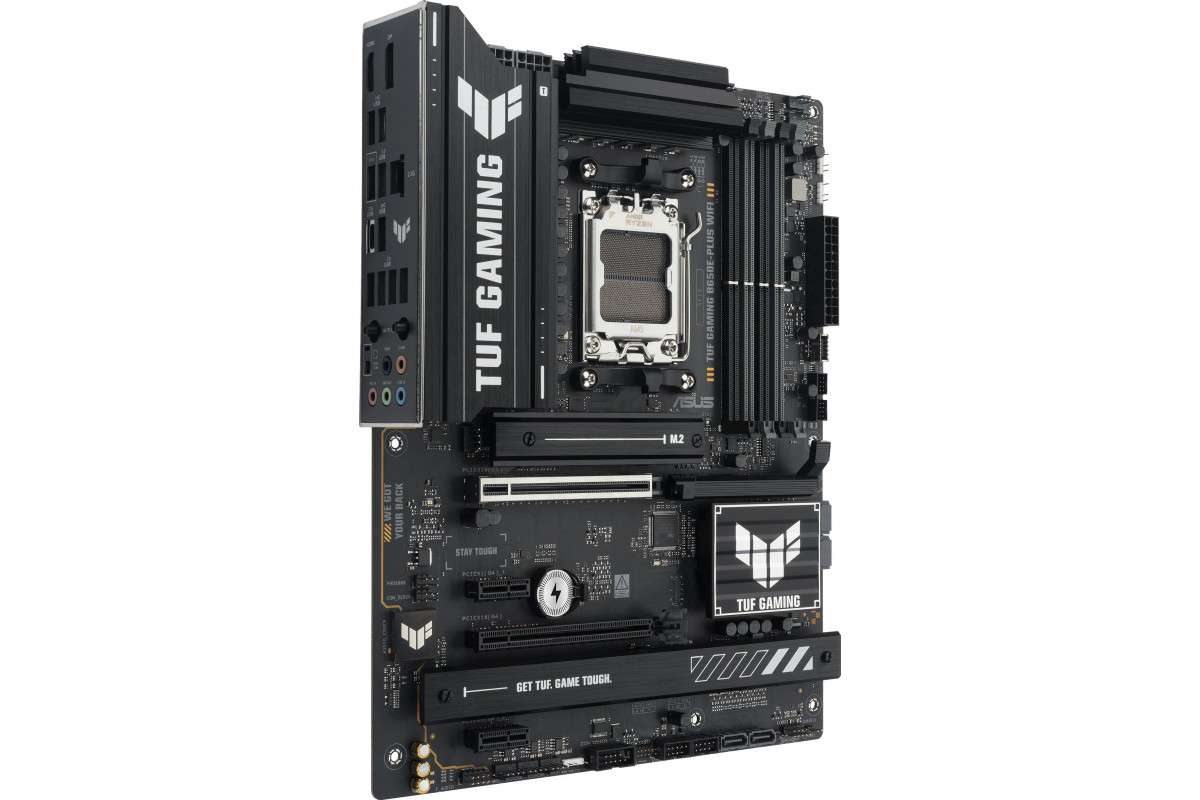

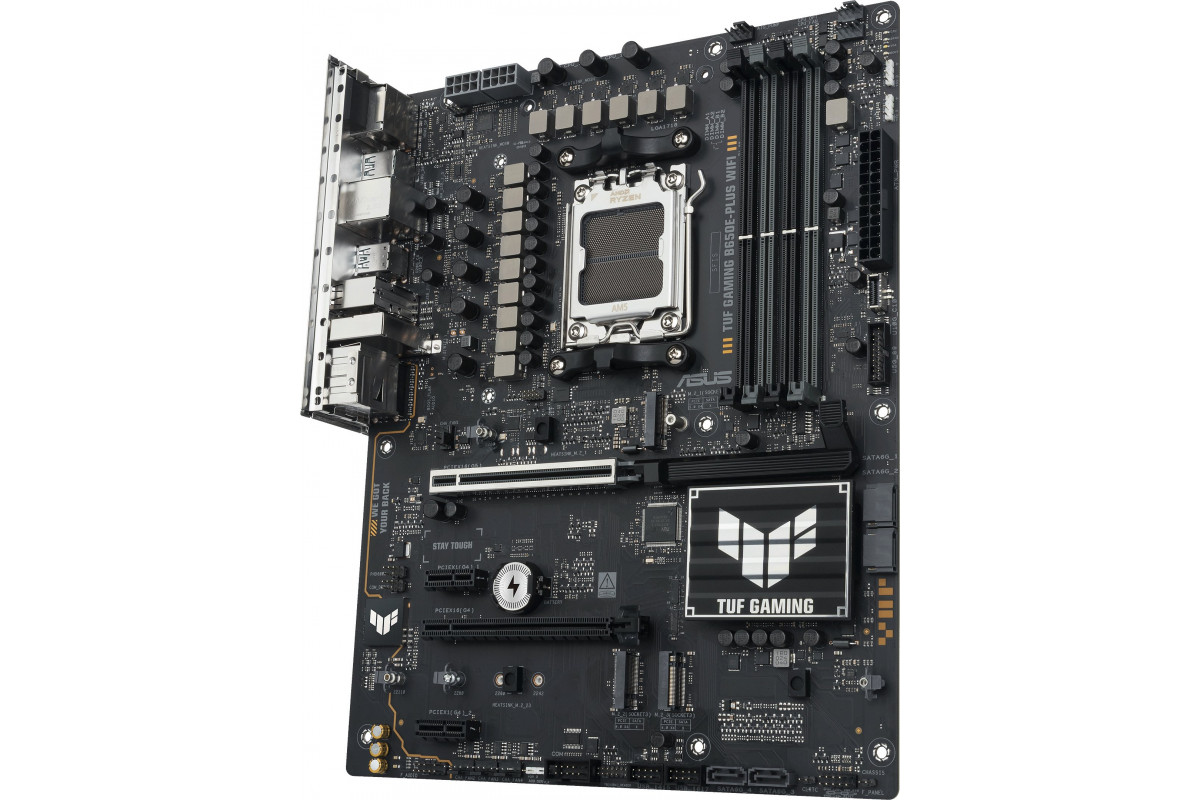

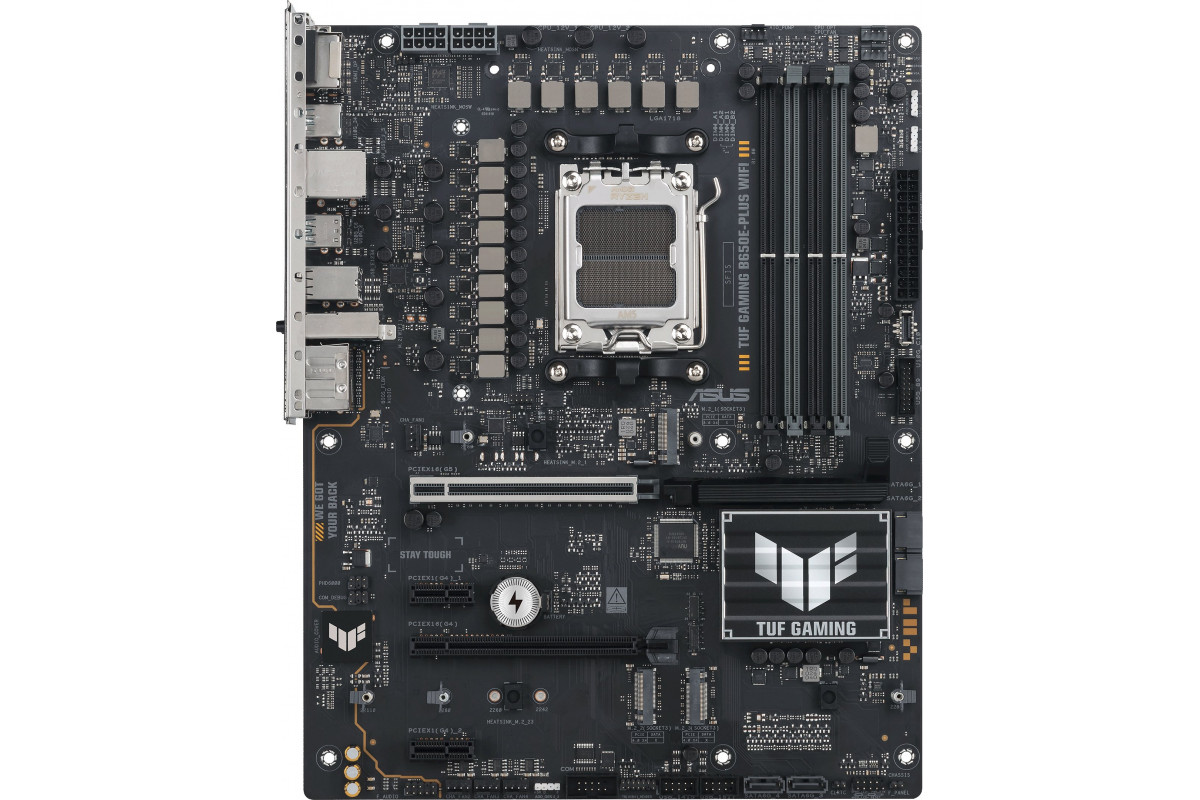

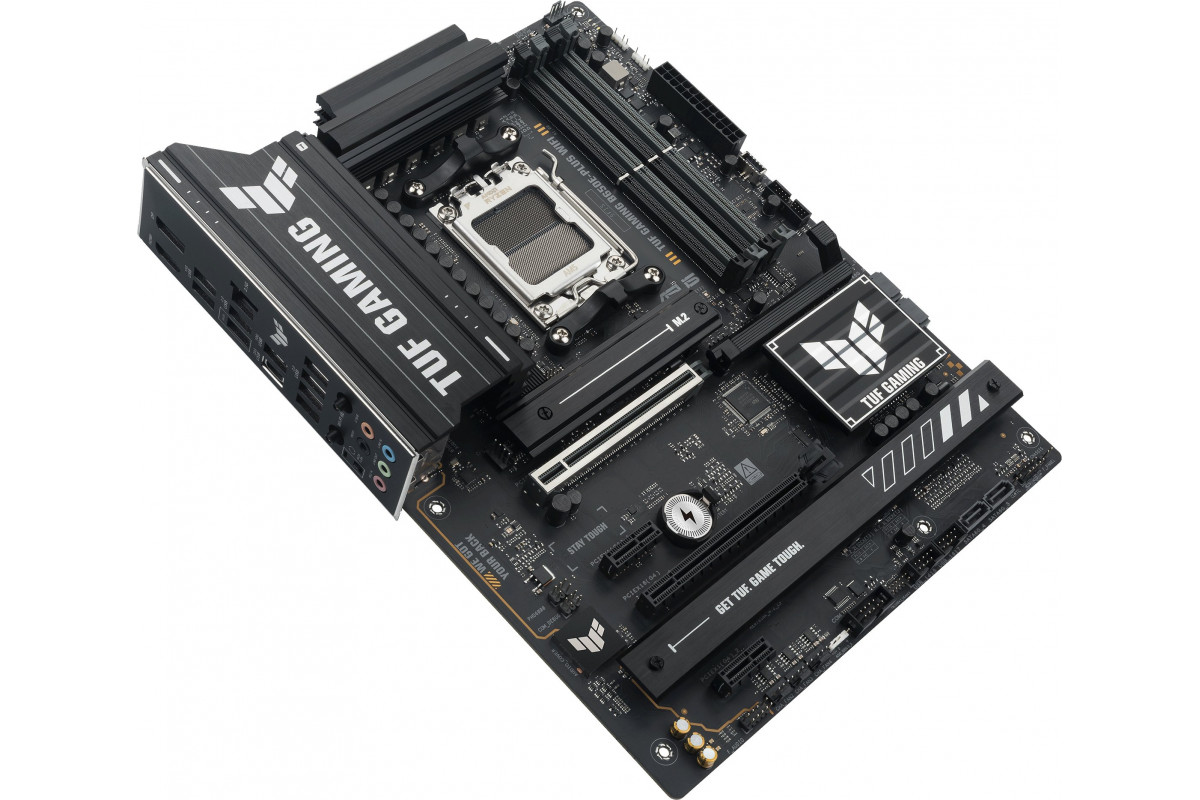

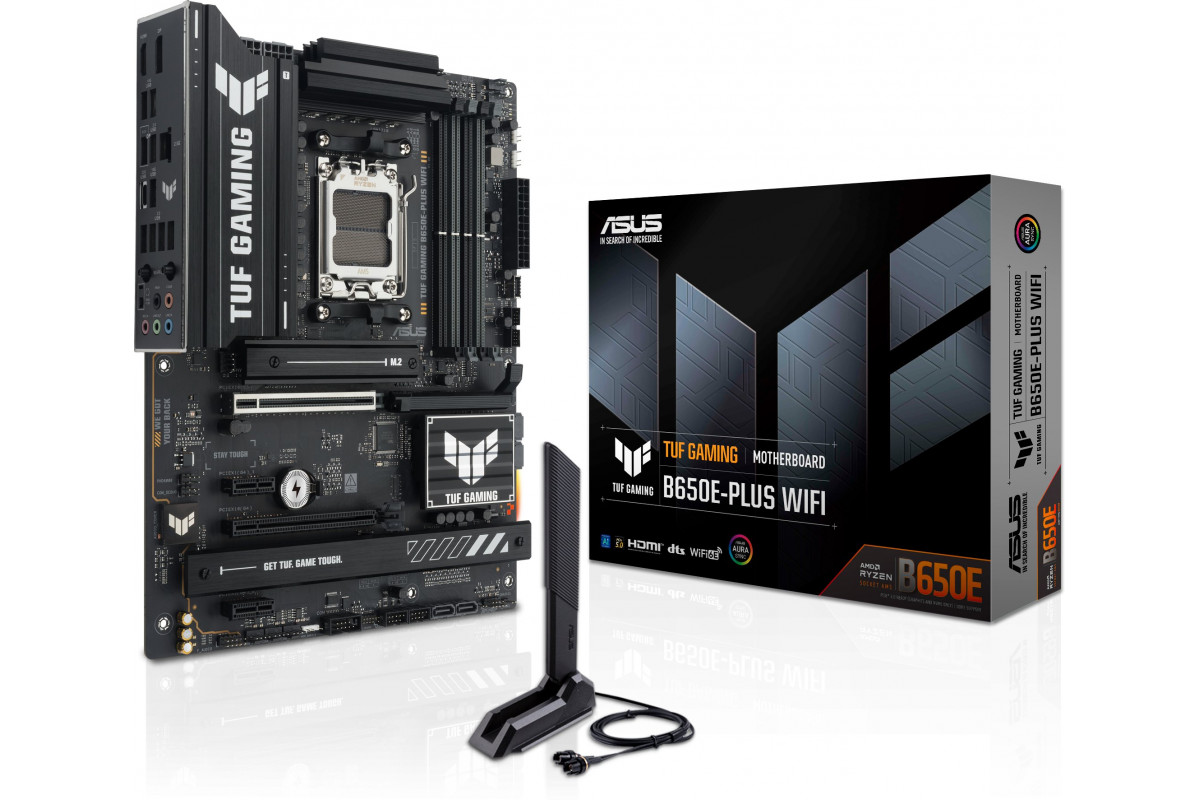

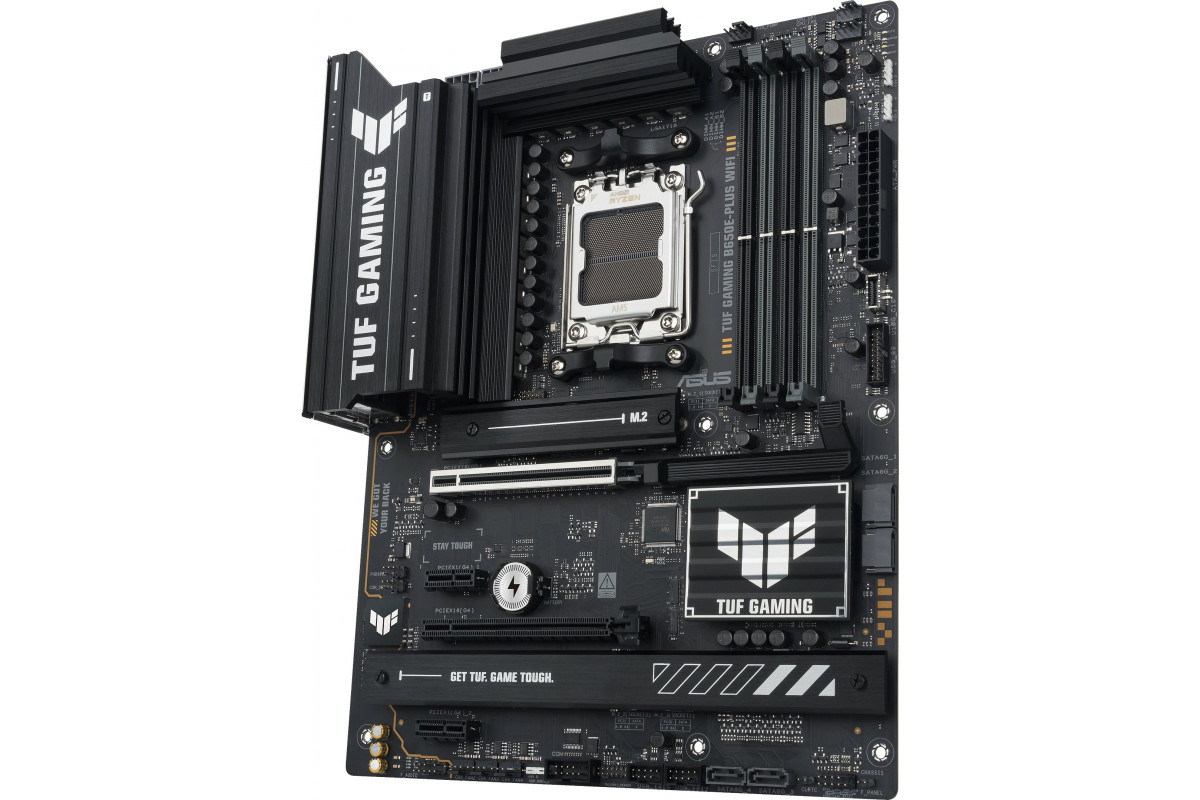

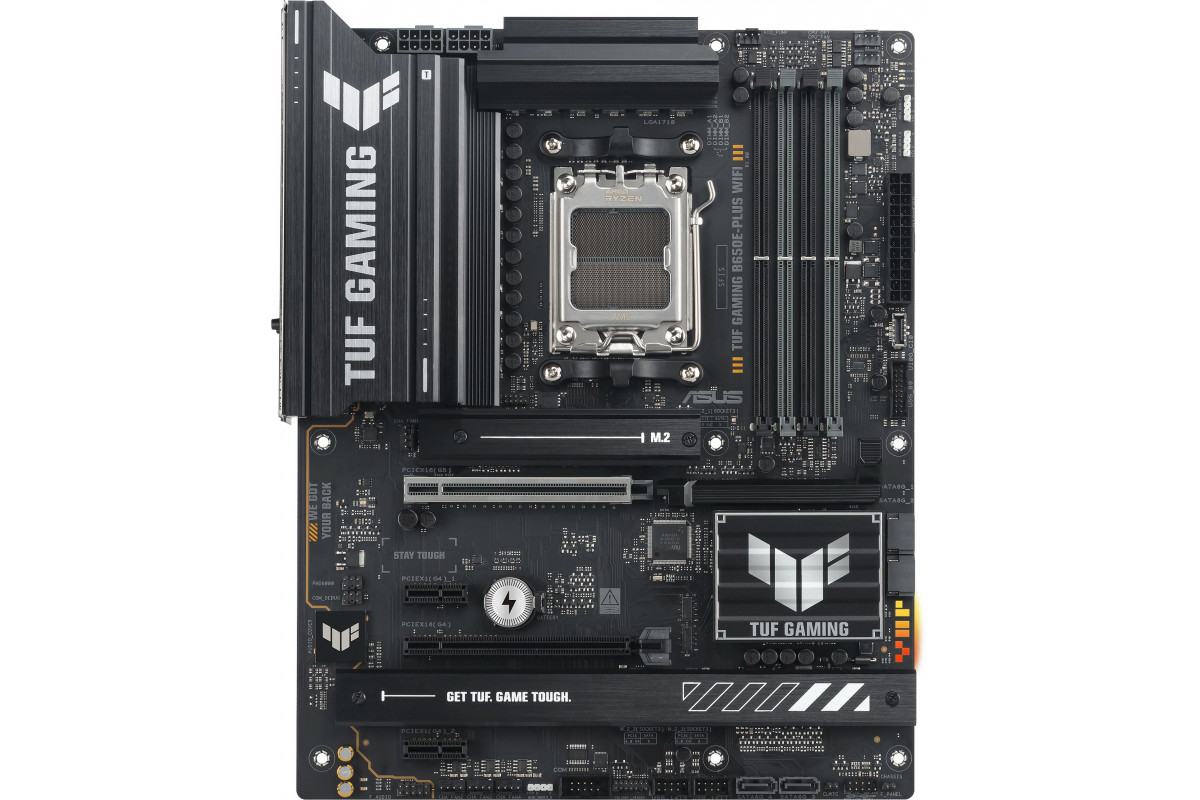

AMD B650 Asus TUF GAMING B650E-PLUS WIFI

Motherboard Form Factor
ATX
Motherboard Width [mm]
305
Motherboard Depth [mm]
244
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
AMD B650
Motherboard CPU Socket
Socket AM5
Motherboard Supported Processors
AMD Ryzen
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
4800 MHz 5200 MHz 5600 MHz 5800 MHz 6000 MHz 6200 MHz 6400 MHz 6600 MHz 6800 MHz 7000 MHz 7200 MHz 7600 MHz 7800 MHz 8000 MHz
Motherboard Maximum Memory Capacity
256 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 1220P
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000/2500
Motherboard Network Card Chipset
AMD Wi-Fi 6E RZ616 Realtek 2.5GbE
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Motherboard Expansion Slots
PCI Express x1 (2 szt.) PCI Express x16 (2 szt.)
Motherboard Drive Connectors
M.2 slot x3 SATA 3 x4
Motherboard Internal Connectors
USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 2 (3.1 Gen 2) x1 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x2 Złącze audio panelu przedniego (AAFP) x1 Złącze AURA Addressable Gen 2 x3 Złącze Clear CMOS x1 Złącze CPU FAN 4-pin x1 Złącze CPU_OPT FAN 4-pin x1 Złącze czujnika otwarcia obudowy x1 Złącze pinowe Thunderbolt 4 x1 Złącze przedniego panelu x1 Złącze SYS FAN 4-pin x4 Złącze szeregowe (COM) x1

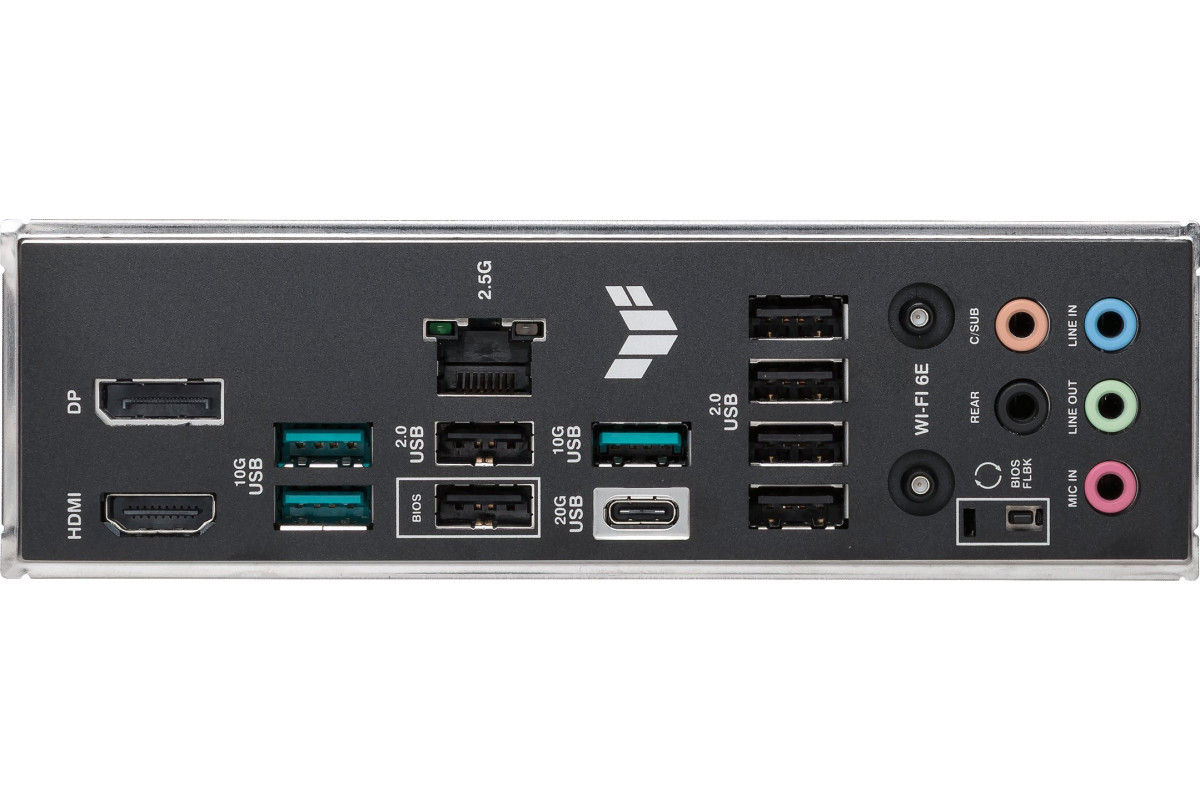

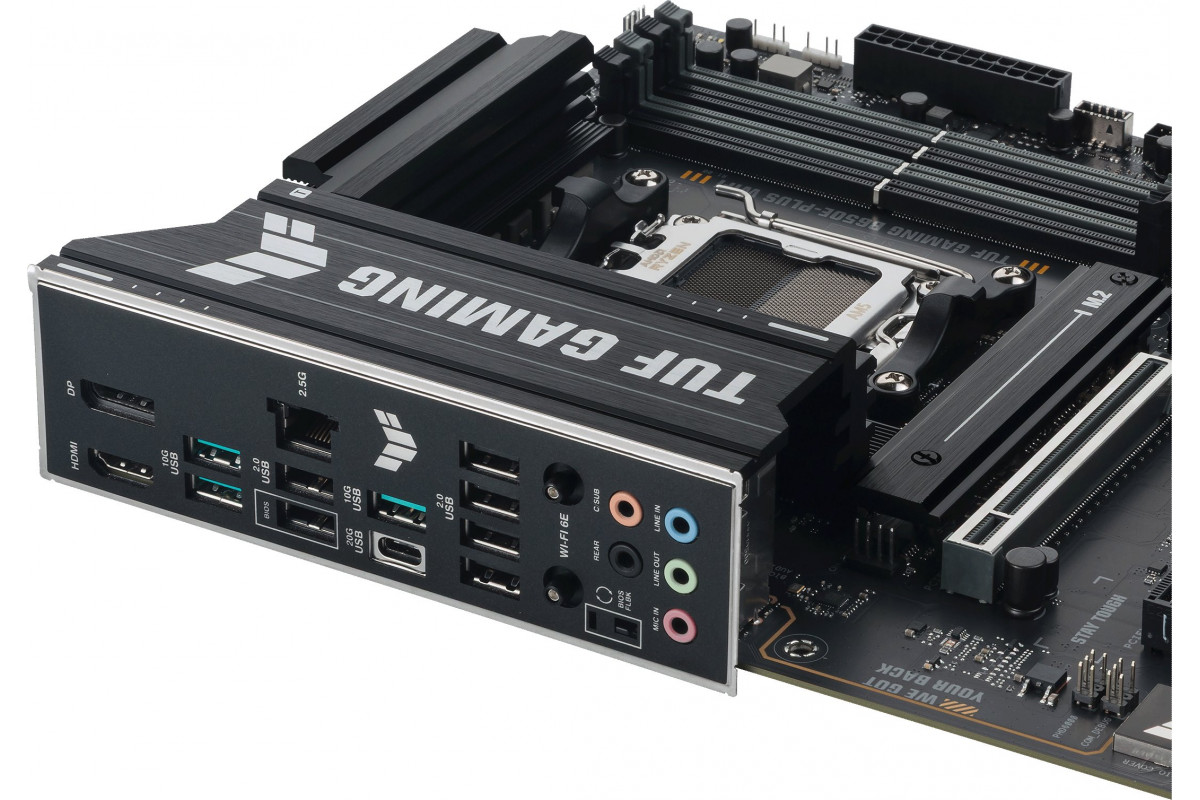

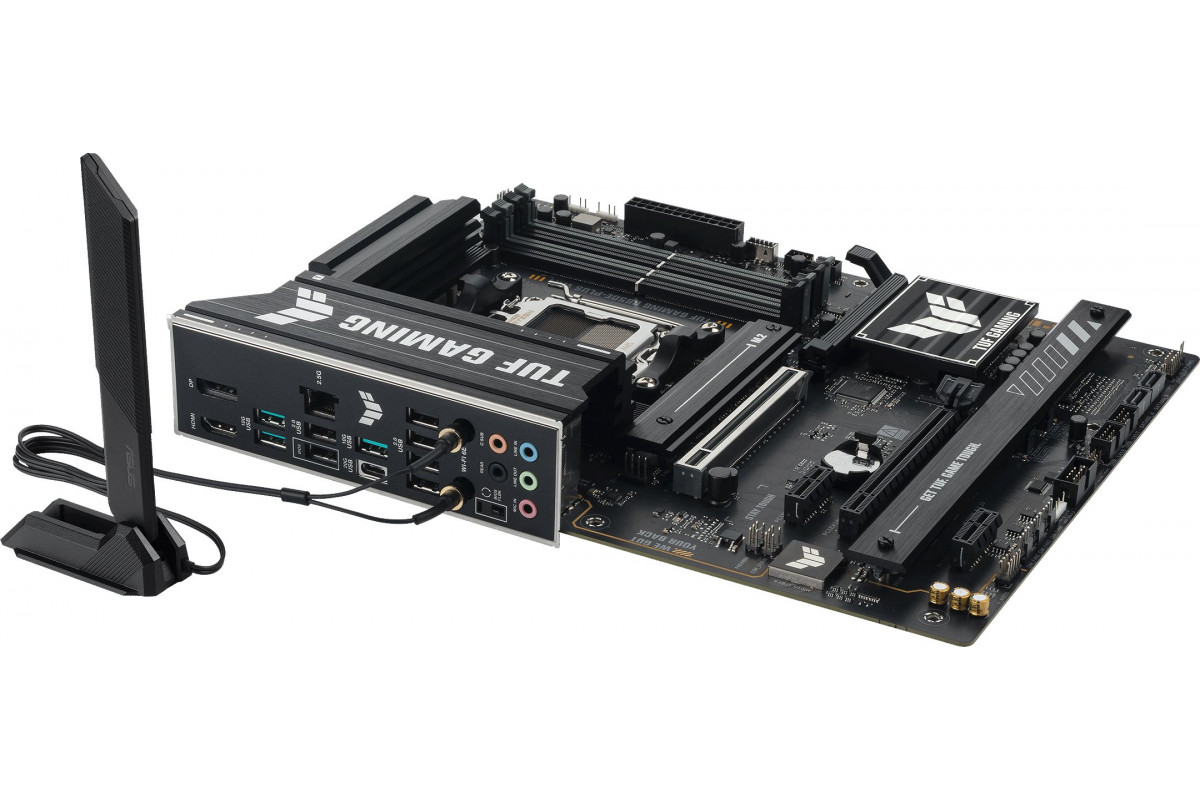

Motherboard Rear Panel
DisplayPort x1 HDMI x1 Przycisk BIOS Flashback x1 RJ-45 x1 USB 2.0 x6 USB 3.2 Gen 2 (3.1 Gen 2) x3 USB-C 3.2 Gen 2x2 x1 Złącze anteny WiFi x2 Złącze audio x5

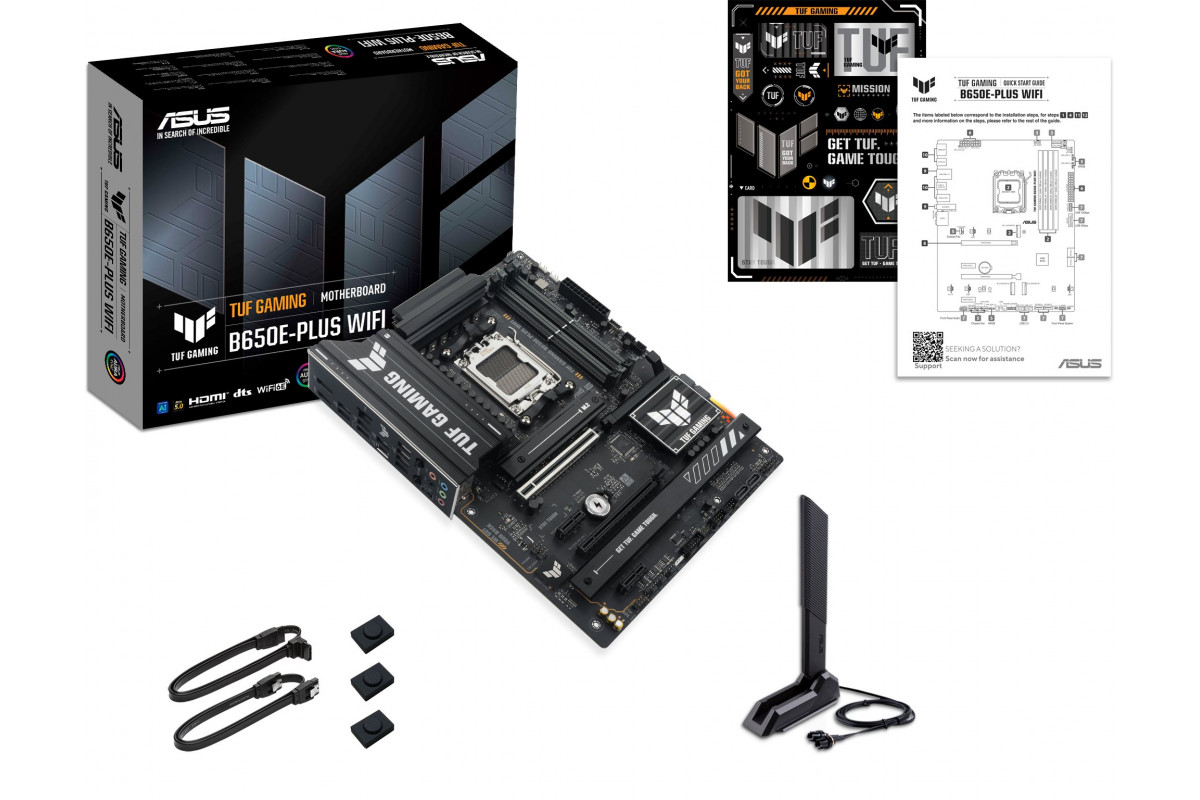

Motherboard Included Accessories
Antena WiFi Naklejki Przewód SATA III x2
