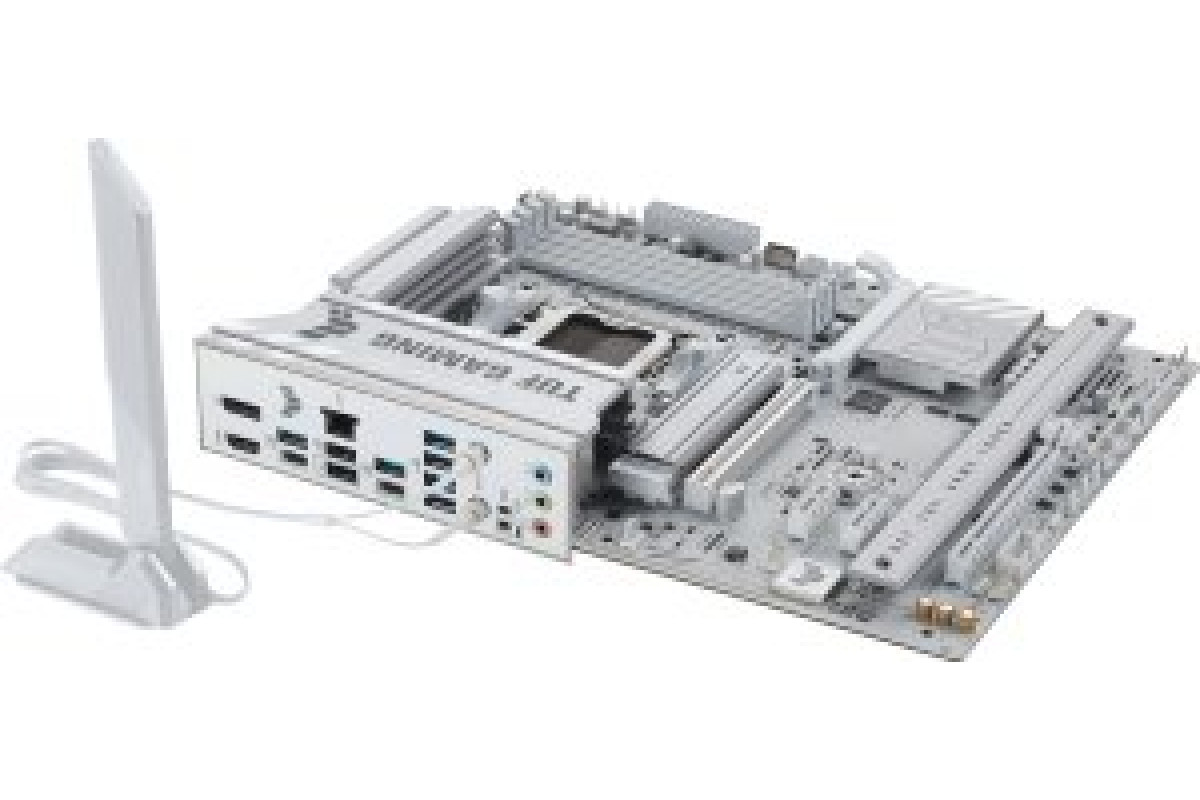

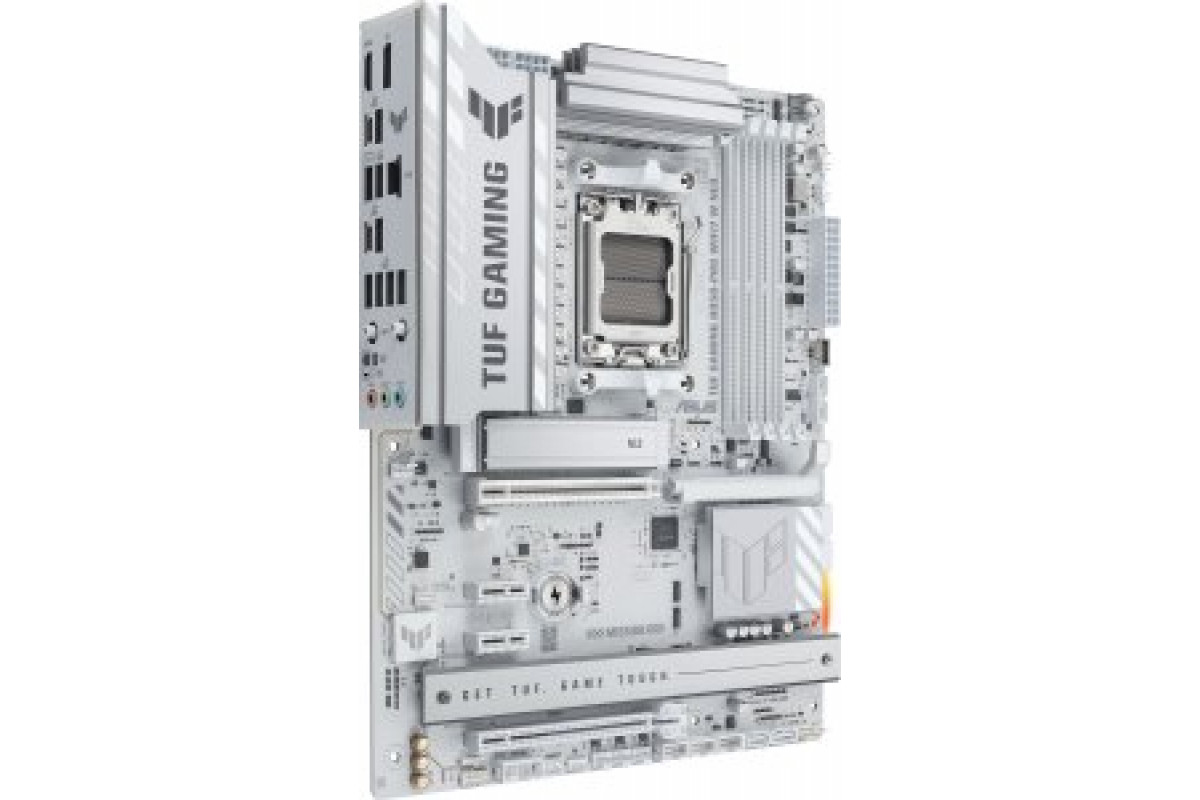

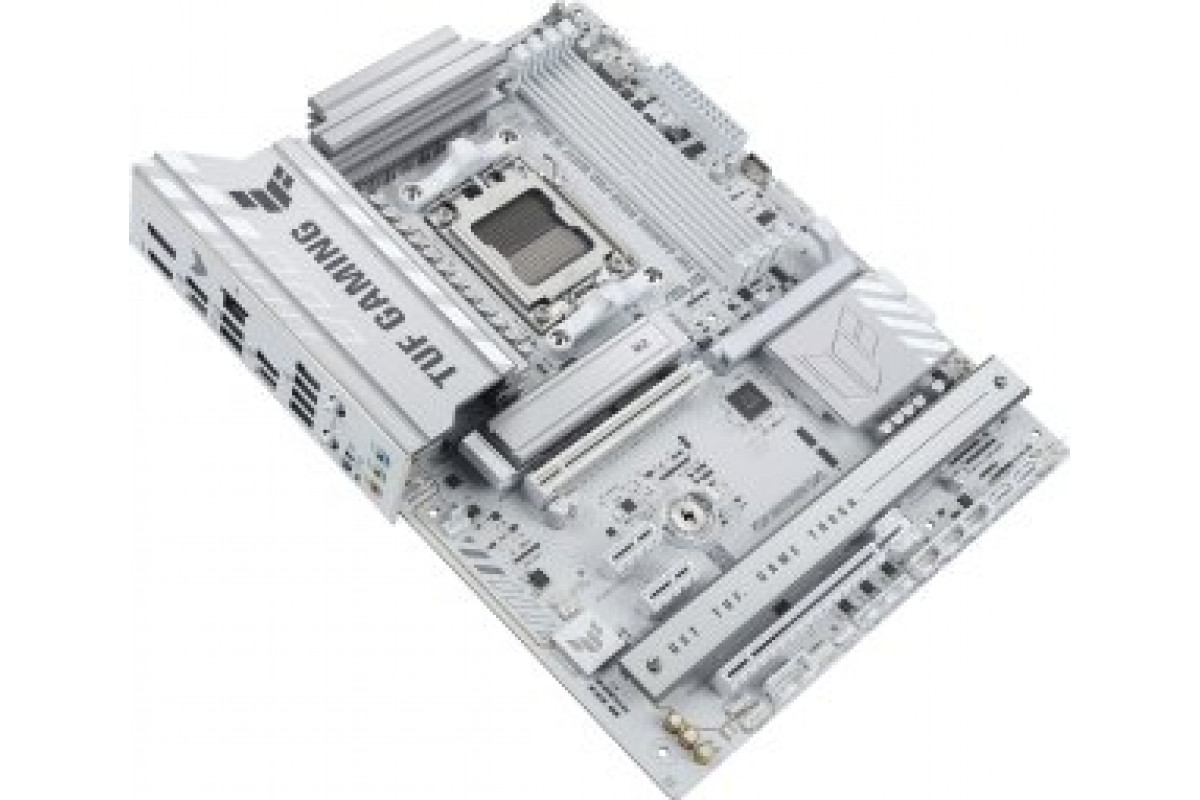

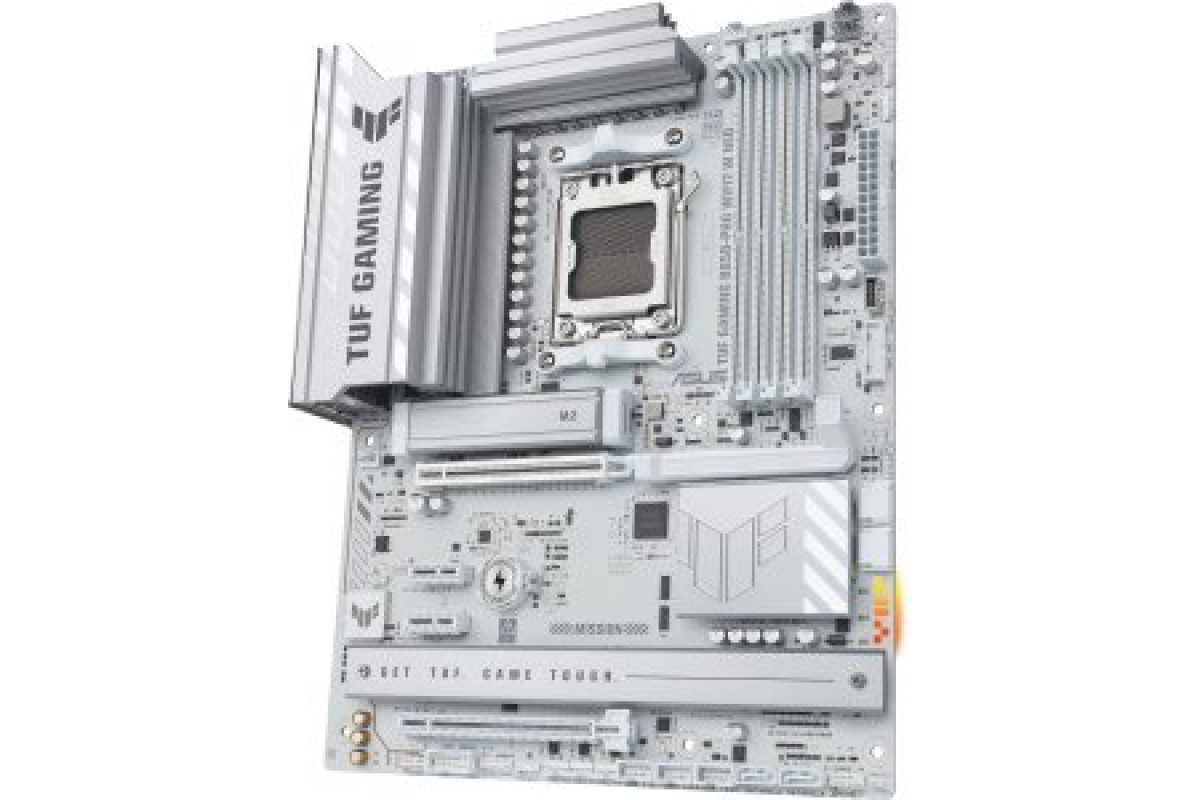

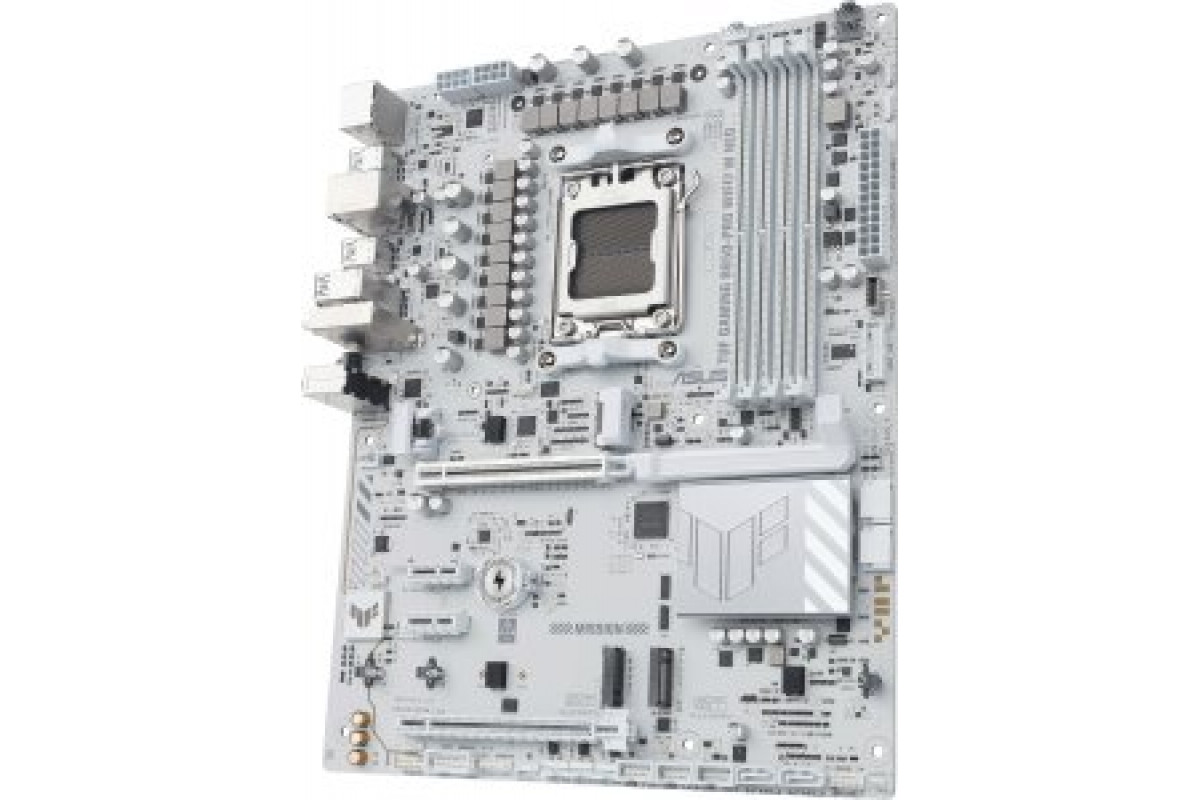

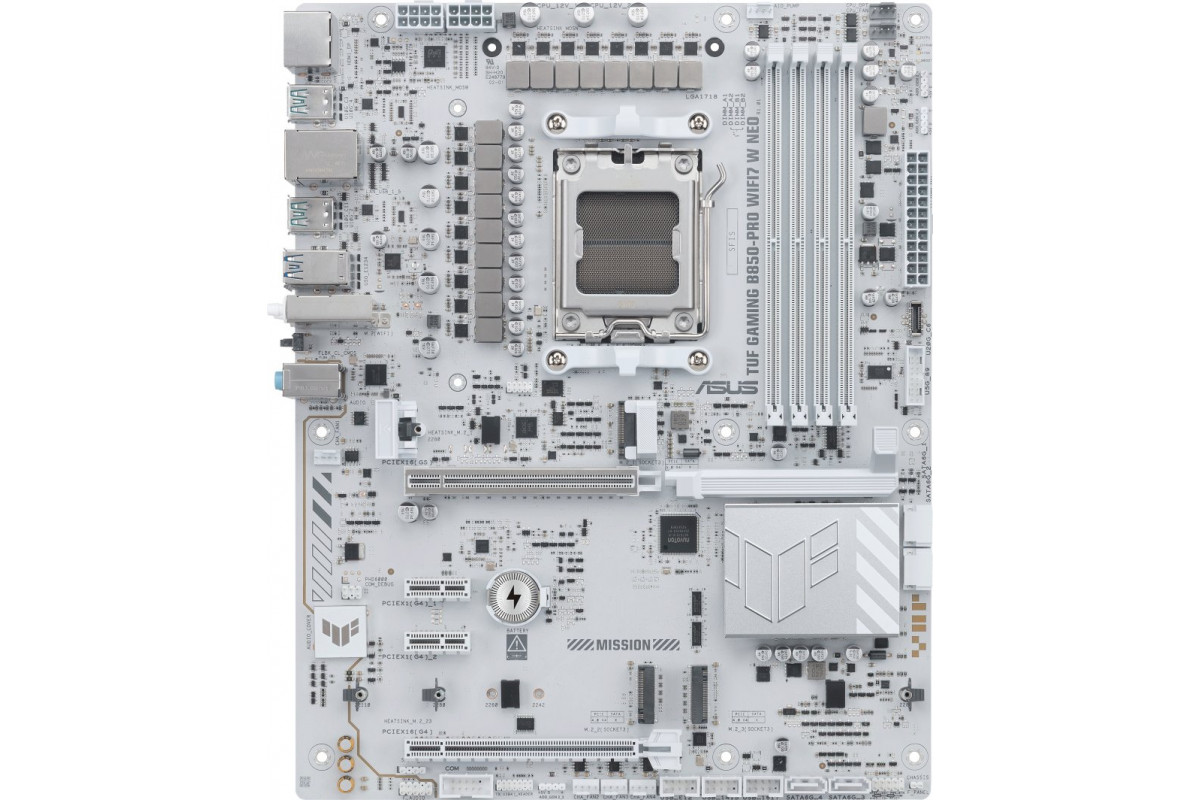

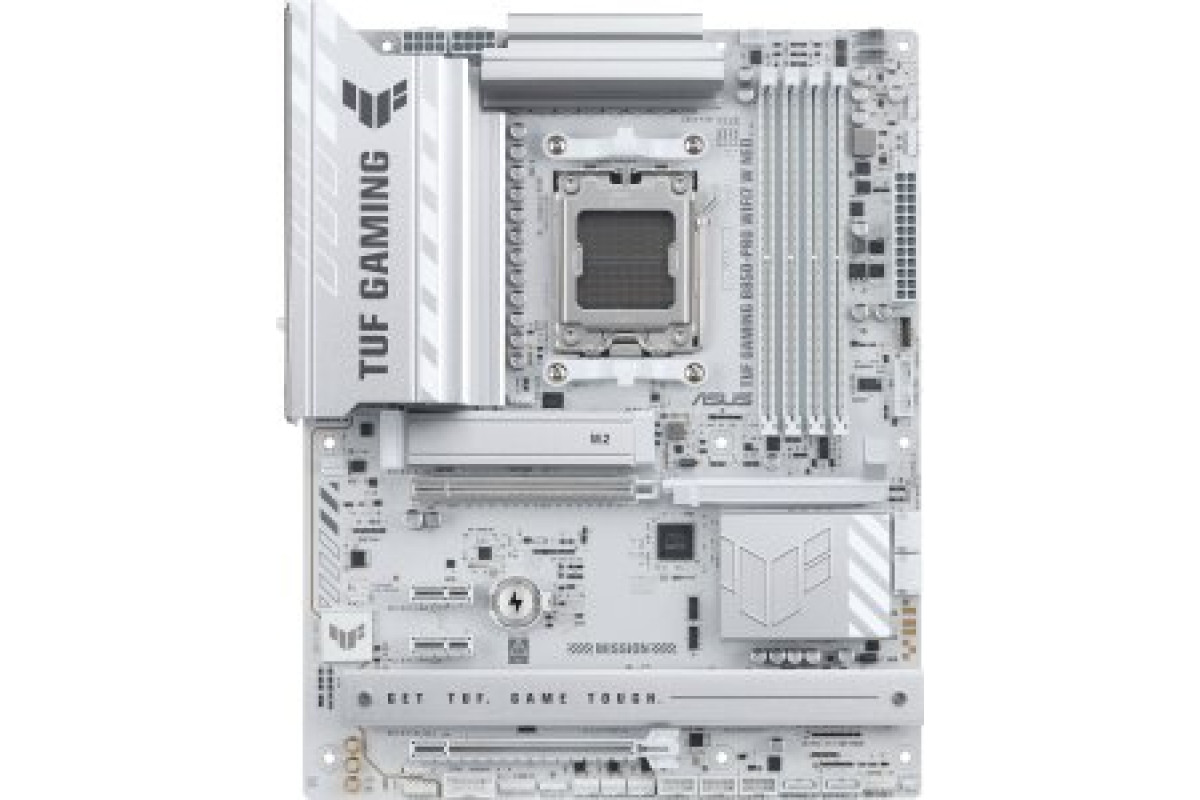

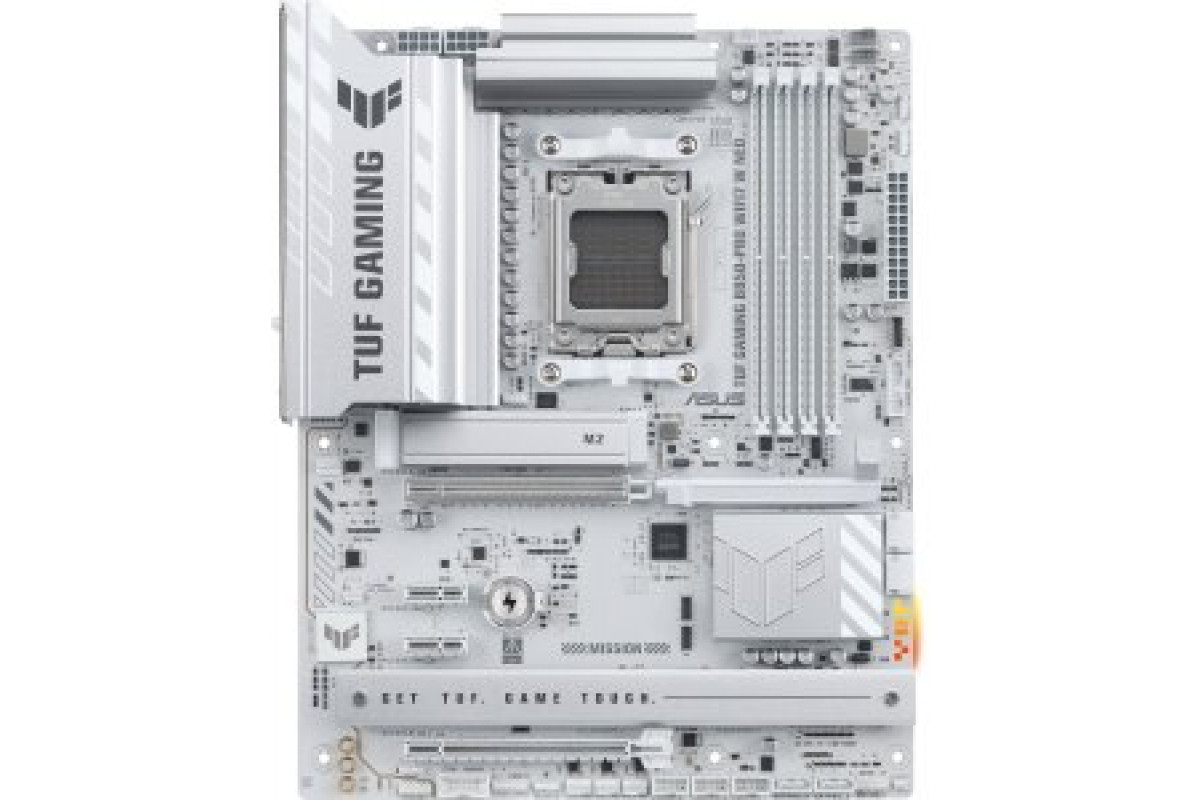

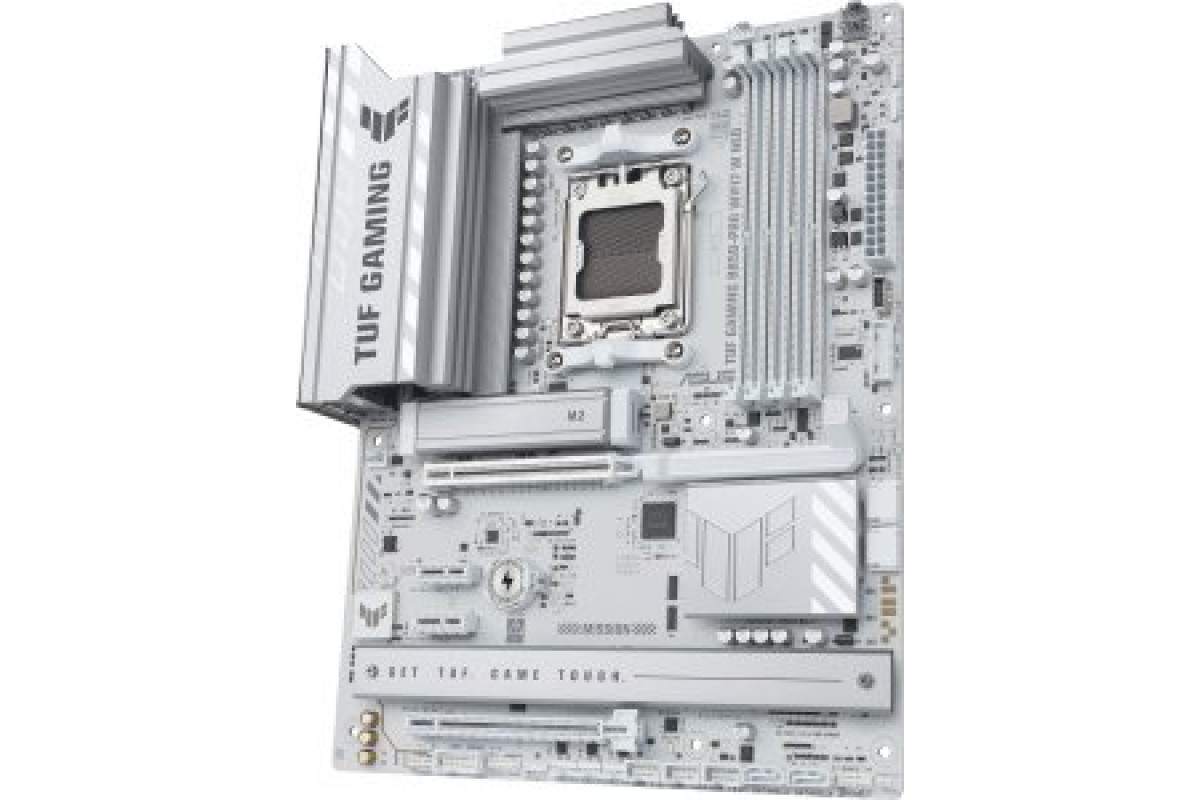

AMD B850 Asus TUF GAMING B850-PRO WIFI7 W NEO
Motherboard Form Factor
ATX
Motherboard Width [mm]
305
Motherboard Depth [mm]
244
Motherboard Color
White
Motherboard Usage
Gaming
Motherboard Chipset
AMD B850
Motherboard CPU Socket
Socket AM5
Motherboard Supported Processors
AMD Ryzen
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
4800 MHz 5200 MHz 5600 MHz 5800 MHz 6000 MHz 6200 MHz 6400 MHz 6600 MHz 6800 MHz 7000 MHz 7200 MHz 7600 MHz 7800 MHz 8000 MHz 8200 MHz 8400 MHz 8600 MHz 9000 MHz
Motherboard Maximum Memory Capacity
256 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 1220P
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000/2500
Motherboard Network Card Chipset
Realtek 2.5GbE Realtek Wi-Fi 7 RTL8922AE
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
Motherboard Expansion Slots
PCI Express x1 (2 szt.) PCI Express x16 (2 szt.)
Motherboard Drive Connectors
M.2 slot x3 SATA 3 x4
Motherboard Internal Connectors
USB 2.0 x3 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 2x2 x1 Złącze addressable RGB LED strip 5V x3 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x2 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN 4-pin x1 Złącze CPU_OPT FAN 4-pin x1 Złącze czujnika otwarcia obudowy x1 Złącze pinowe Thunderbolt 4 x1 Złącze przedniego panelu x1 Złącze S/PDIF x1 Złącze SYS FAN 4-pin x4 Złącze szeregowe (COM) x1

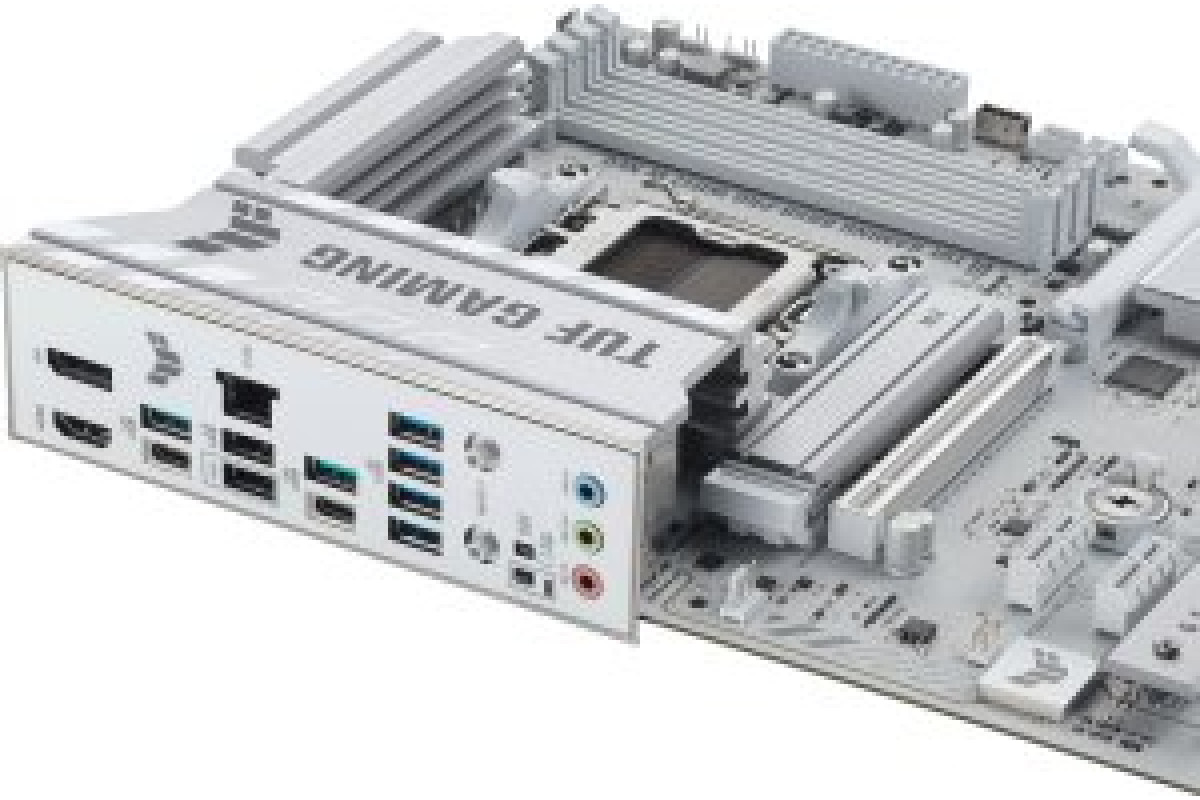

Motherboard Rear Panel
DisplayPort x1 HDMI x1 Przycisk BIOS Flashback x1 Przycisk Clear CMOS x1 RJ-45 x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x4 USB 3.2 Gen 2 (3.1 Gen 2) x2 USB-C 3.2 Gen 2 (3.1 Gen 2) x2 Złącze anteny WiFi x1 Złącze audio x3

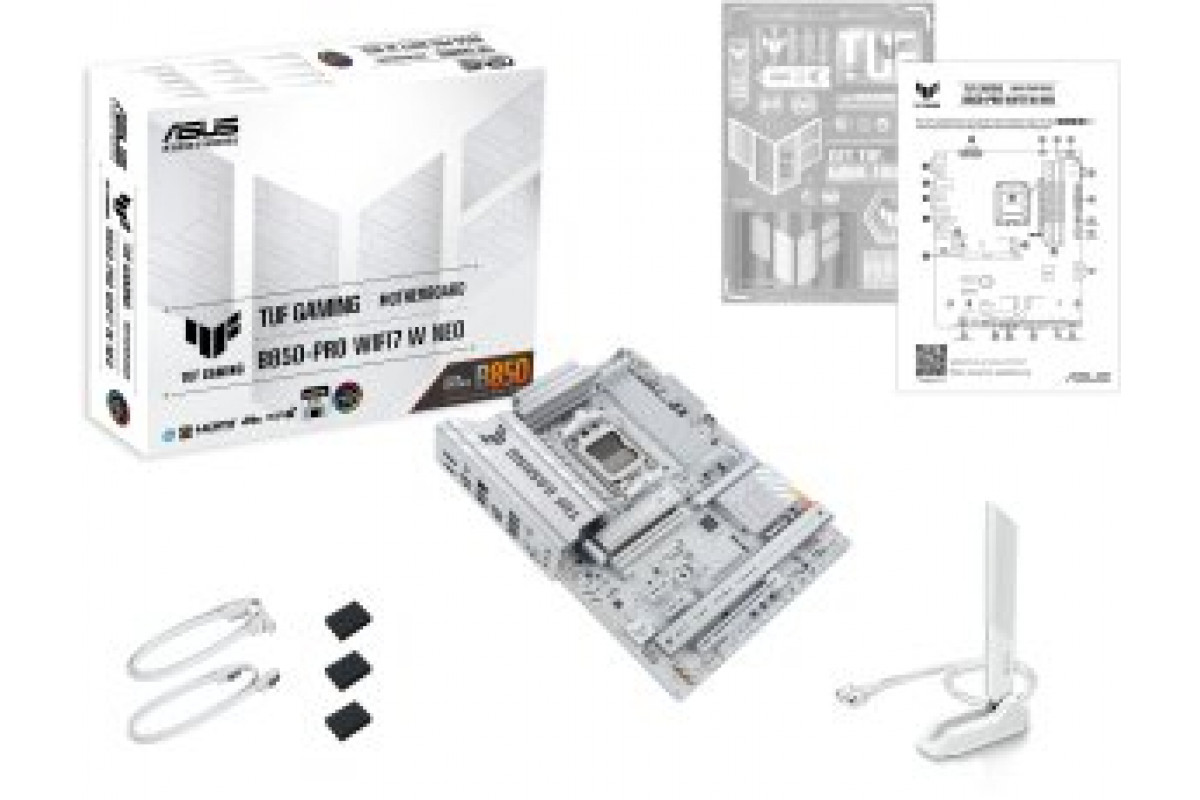

Motherboard Included Accessories
Antena WiFi Naklejki Przewód SATA III x2 Śruby do modułu M.2
