AMD SB710 Asus M5A78L-M PLUS

Motherboard Form Factor
Micro ATX
Motherboard Width [mm]
244
Motherboard Depth [mm]
229
Motherboard Color
Black
Motherboard Usage
Other
Motherboard Chipset
AMD SB710
Motherboard CPU Socket
Socket AM3+
Motherboard Supported Processors
AMD Athlon II AMD Phenom II AMD Sempron
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10
Motherboard Memory Standard
DDR3
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
1066 MHz 1333 MHz 1600 MHz 1800 MHz 1866 MHz 2200 MHz
Motherboard Maximum Memory Capacity
32 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
AMD Radeon HD 3000
Motherboard Multi-GPU Support
AMD CrossFireX
Motherboard Audio Chipset
Realtek ALC 887
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000
Motherboard Network Card Chipset
Realtek RTL8111H
Motherboard Wireless Connectivity
No
Motherboard Expansion Slots
PCI (1 szt.) PCI Express x1 (1 szt.) PCI Express x16 (1 szt.)
Motherboard Drive Connectors
SATA 2 x6
Motherboard Internal Connectors
USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 Złącze ATX 4-pin 12V x1 Złącze audio panelu przedniego (AAFP) x1 Złącze EATX 24-pin 12V x1 Złącze panelu systemu x1 Złącze równoległe (LPT) x1 Złącze S/PDIF x1 Złącze szeregowe (COM) x1 Zworka Clear CMOS x1

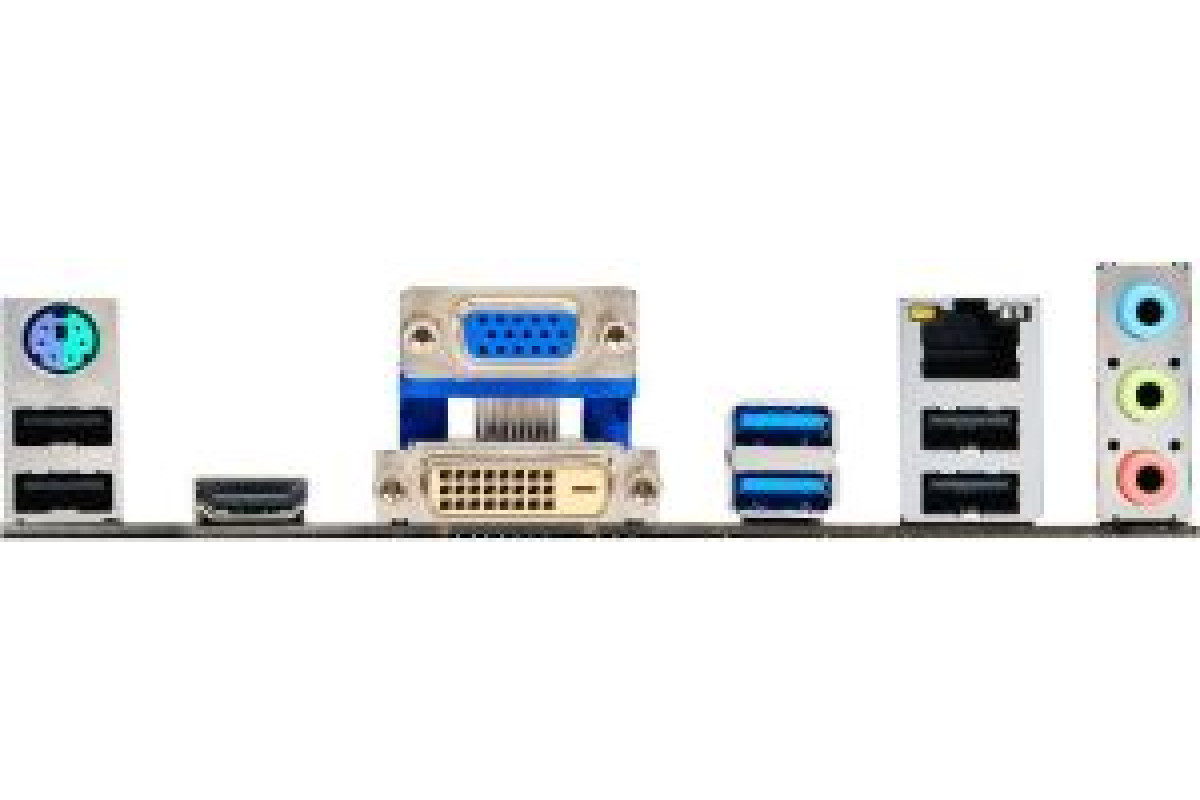

Motherboard Rear Panel
D-Sub (VGA) x1 DVI x1 HDMI x1 PS/2 x2 RJ-45 x1 USB 2.0 x4 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x2 Złącze audio x3
Motherboard Included Accessories
Przewód zasilający SATA x2
