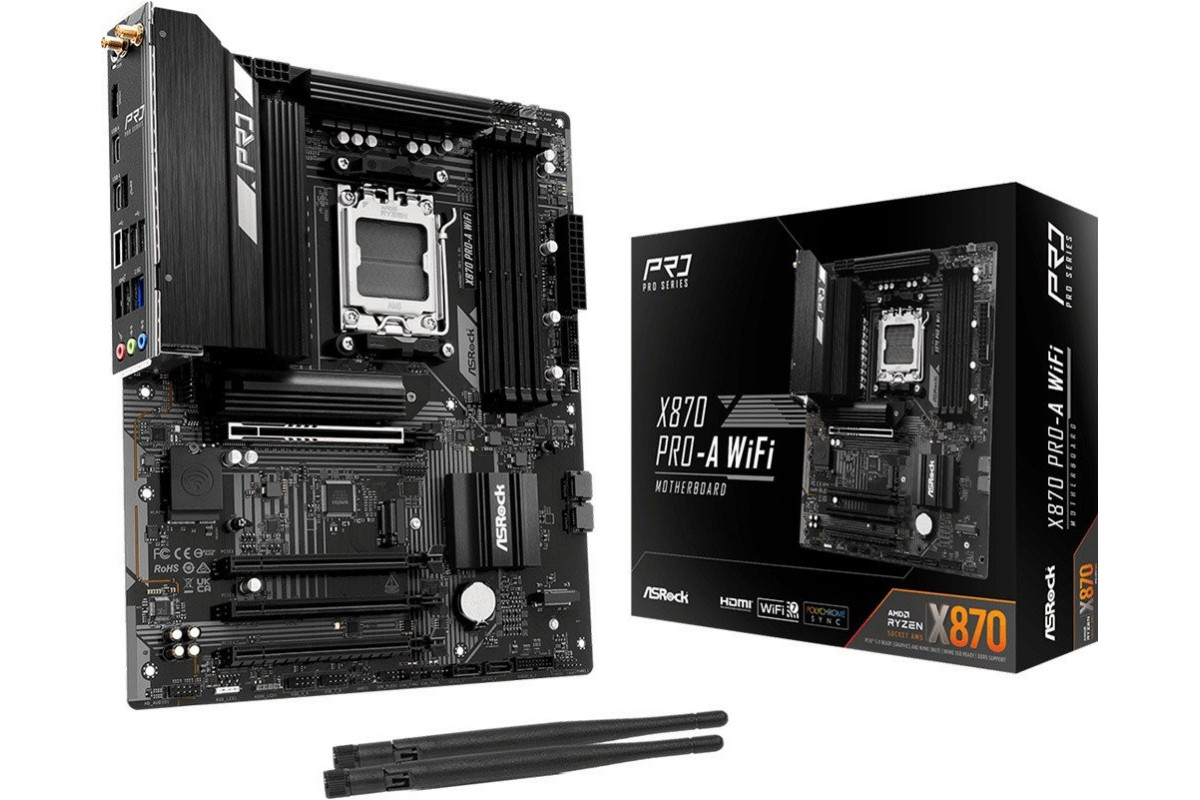

ASRock X870 PRO-A WIFI

Physical

• Motherboard Form Factor: ATX

• Width: 244 mm

• Depth: 305 mm

Technical

• Application: Gaming

• Chipset: AMD X870

• CPU Socket: Socket AM5

• Supported Processors: AMD Ryzen

• RAID Controller: RAID 0, RAID 1, RAID 10

Memory

• Memory Standard: DDR5

• Connector Type: U-DIMM

• Number of Memory Slots: 4

• Supported Memory Speeds:
  4800 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6400 MHz,
  6600 MHz, 6800 MHz, 7000 MHz, 7200 MHz, 7600 MHz, 7800 MHz, 8000 MHz

• Maximum Memory Capacity: 256 GB

• Multi-Channel Architecture: Dual-Channel

Graphics

• Integrated Graphics Support: Yes

• Graphics Chipset: Depends on processor

• Multi-GPU Support: No

Audio

• Audio Chipset: Realtek ALC897

• Audio Channels: 7.1

Networking

• Integrated LAN: 10/100/1000/2500 Mbps

• Network Chipset: Realtek RTL8125BG, Realtek Wi-Fi 7 RTL8922AE

• Wireless Connectivity: Bluetooth, Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)

Connectors

• Expansion Slots:

  • M.2 Wi-Fi (1x)

  • PCI Express x16 (4x)

• Drive Connectors:

  • M.2 slots x3

  • SATA 3 x4

• Internal Headers:

  • USB 2.0 x2

  • USB 3.2 Gen 1 (3.0/3.1 Gen 1) x2

  • USB-C 3.2 Gen 1 (3.0/3.1 Gen 1) x1

  • Addressable RGB LED strip 5V x3

  • AIO_PUMP 4-pin x1

  • ATX 24-pin 12V x1

  • ATX 8-pin 12V x2

  • Front Audio Panel (AAFP) x1

  • CPU FAN 4-pin x2

  • Power LED Header x1

  • RGB LED Header x1

  • SYS FAN 4-pin x3

  • TPM Header x1

• Rear I/O Panel:

  • HDMI x1

  • BIOS Flashback Button x1

  • RJ-45 x1

  • USB 2.0 x4

  • USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1

  • USB 3.2 Gen 2 (3.1 Gen 2) x2

  • USB4 x2

  • Wi-Fi Antenna Connectors x2

  • Audio Jacks x3

Included Accessories

• Wi-Fi Antennas x2

• SATA III Cables x2

• ARGB LED Splitter
