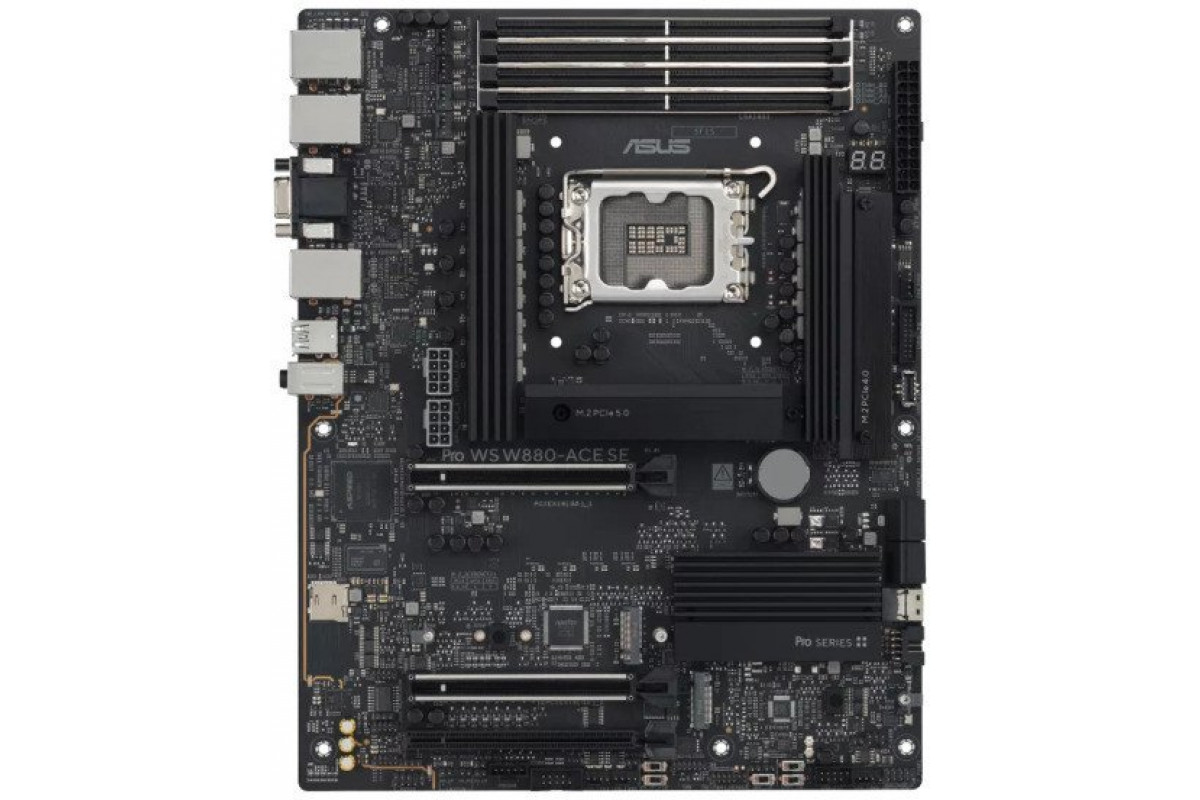

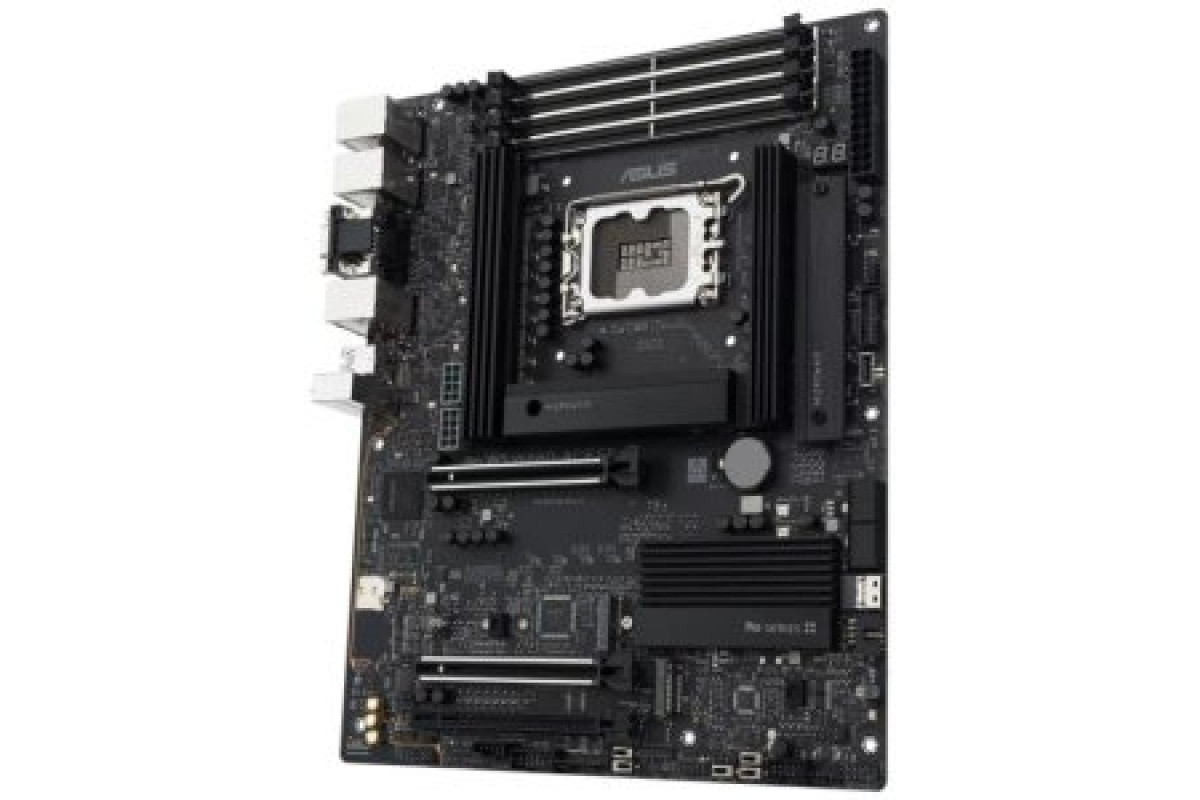

Intel W880 Asus PRO WS W880-ACE SE

Motherboard Form Factor
ATX
Motherboard Width [mm]
244
Motherboard Depth [mm]
305
Motherboard Color
Black
Motherboard Usage
Other
Motherboard Chipset
Intel W880
Motherboard CPU Socket
Socket 1851
Motherboard Supported Processors
Intel Core Ultra 5 Intel Core Ultra 7 Intel Core Ultra 9
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
2
Motherboard Memory Frequency
4400 MHz 4800 MHz 5200 MHz 5600 MHz 6000 MHz 6200 MHz 6400 MHz 6600 MHz 6800 MHz 7000 MHz 7600 MHz 7800 MHz 8000 MHz 8200 MHz 8400 MHz 8600 MHz 9066 MHz
Motherboard Maximum Memory Capacity
256 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 1220P
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000 10/100/1000/2500 x2
Motherboard Network Card Chipset
Intel I226-V Realtek GbE
Motherboard Wireless Connectivity
No
Motherboard Expansion Slots
PCI Express x16 (3 szt.)
Motherboard Drive Connectors
M.2 slot x4 SATA 3 x4 SlimSAS x1
Motherboard Internal Connectors
USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 2x2 x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x2 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN 4-pin x1 Złącze CPU_OPT FAN 4-pin x1 Złącze czujnika otwarcia obudowy x1 Złącze czujnika termicznego x1 Złącze pinowe Thunderbolt 4 x1 Złącze przedniego panelu x1 Złącze SYS FAN 4-pin x5 Złącze szeregowe (COM) x1 Złącze W_PUMP+ x1

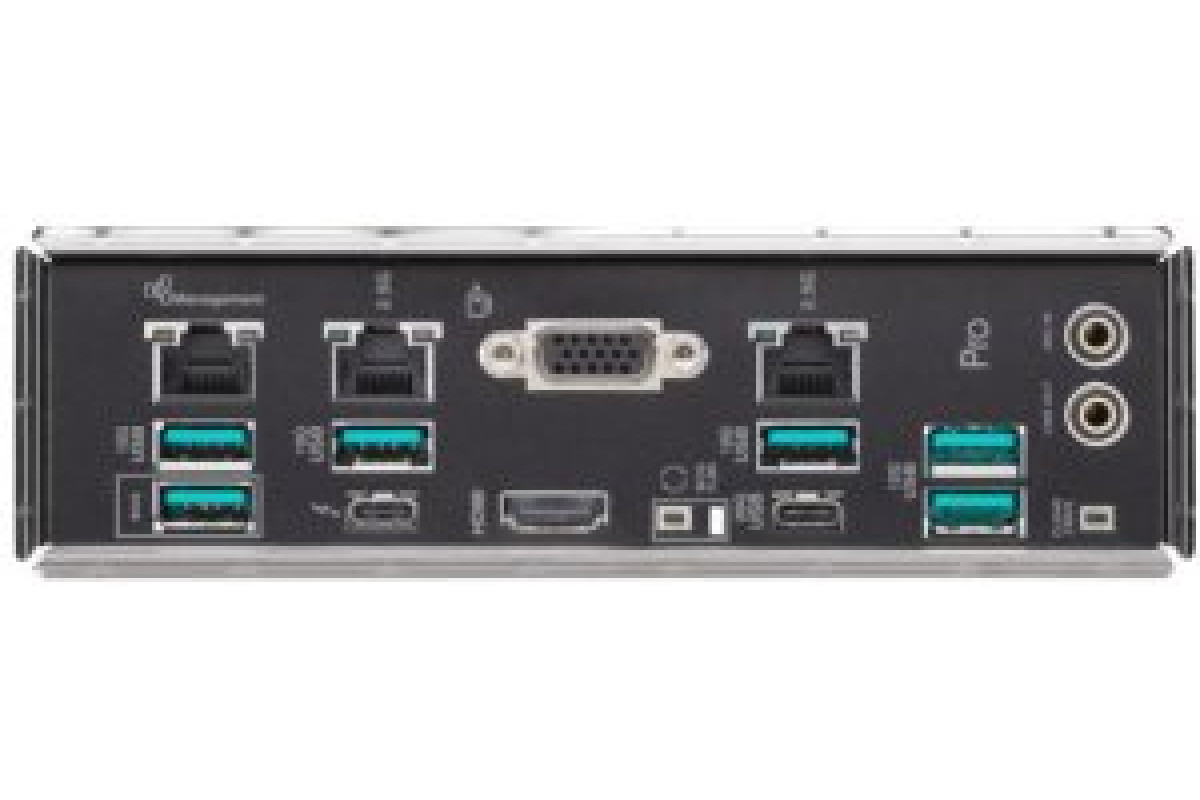

Motherboard Rear Panel
D-Sub (VGA) x1 HDMI x1 Przycisk BIOS Flashback x1 Przycisk Clear CMOS x1 RJ-45 x3 Thunderbolt 4 x1 USB 3.2 Gen 2 (3.1 Gen 2) x6 USB-C 3.2 Gen 2x2 x1 Złącze audio x2
