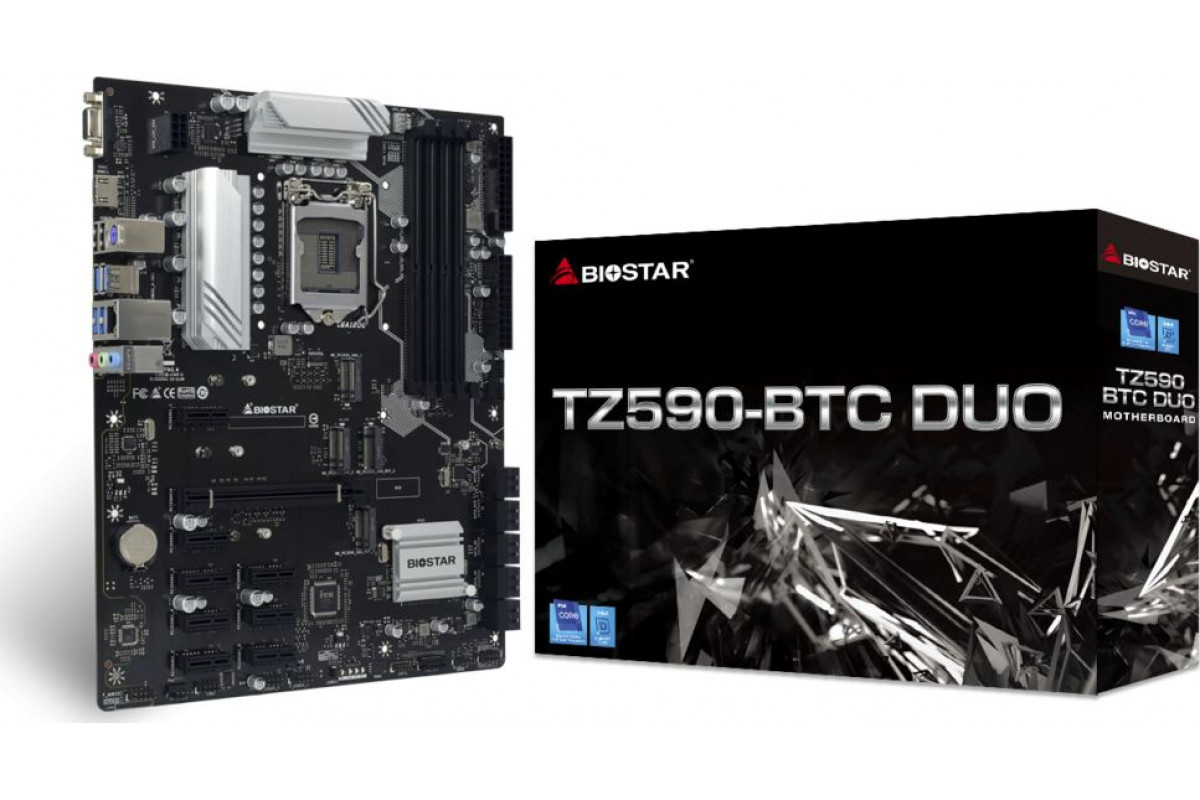

Intel Z590 Biostar TZ590-BTC DUO

Motherboard Form Factor
ATX
Motherboard Width [mm]
244
Motherboard Depth [mm]
305
Motherboard Color
Black
Motherboard Usage
Other
Motherboard Chipset
Intel Z590
Motherboard CPU Socket
Socket 1200
Motherboard Supported Processors
Intel Core i3 Intel Core i5 Intel Core i7 Intel Core i9
Motherboard RAID Controller
No
Motherboard Memory Standard
DDR4
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
2133 MHz 2400 MHz 2666 MHz 2800 MHz 2933 MHz 3200 MHz 3600 MHz
Motherboard Maximum Memory Capacity
128 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 887
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000
Motherboard Network Card Chipset
Intel I219-V
Motherboard Wireless Connectivity
No
Motherboard Expansion Slots
PCI Express x1 (8 szt.) PCI Express x16 (1 szt.)
Motherboard Drive Connectors
M.2 slot x4 SATA 3 x10
Motherboard Internal Connectors
USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 Złącze ATX 24-pin 12V x2 Złącze ATX 8-pin 12V x1 Złącze audio panelu przedniego (AAFP) x1 Złącze Clear CMOS x1 Złącze CPU FAN 4-pin x1 Złącze CPU_OPT FAN 4-pin x1 Złącze głośnika x1 Złącze przedniego panelu x1 Złącze SYS FAN 4-pin x1 Złącze szeregowe (COM) x1 Złącze TPM x1

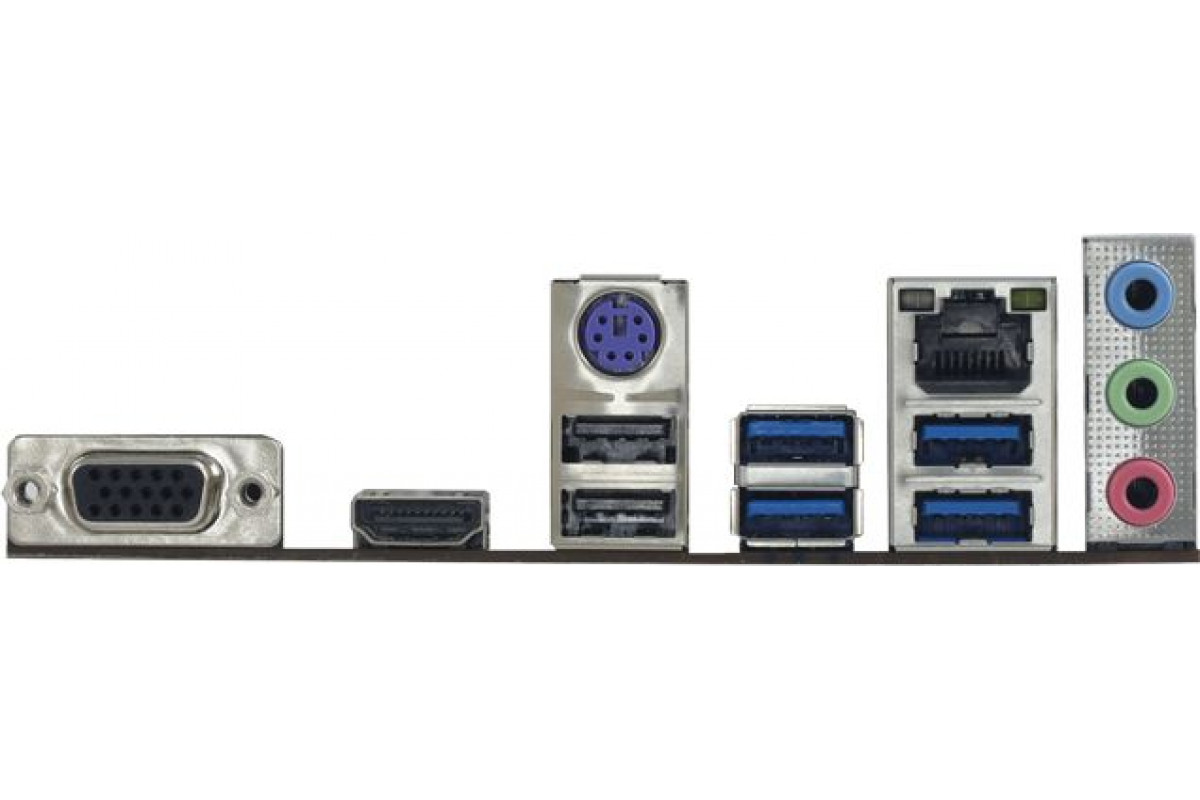

Motherboard Rear Panel
D-Sub (VGA) x1 HDMI x1 PS/2 (klawiatura/mysz) x1 RJ-45 x1 USB 2.0 x3 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x4 Złącze audio x3
Motherboard Included Accessories
Osłona I/O Przewód SATA III x10
