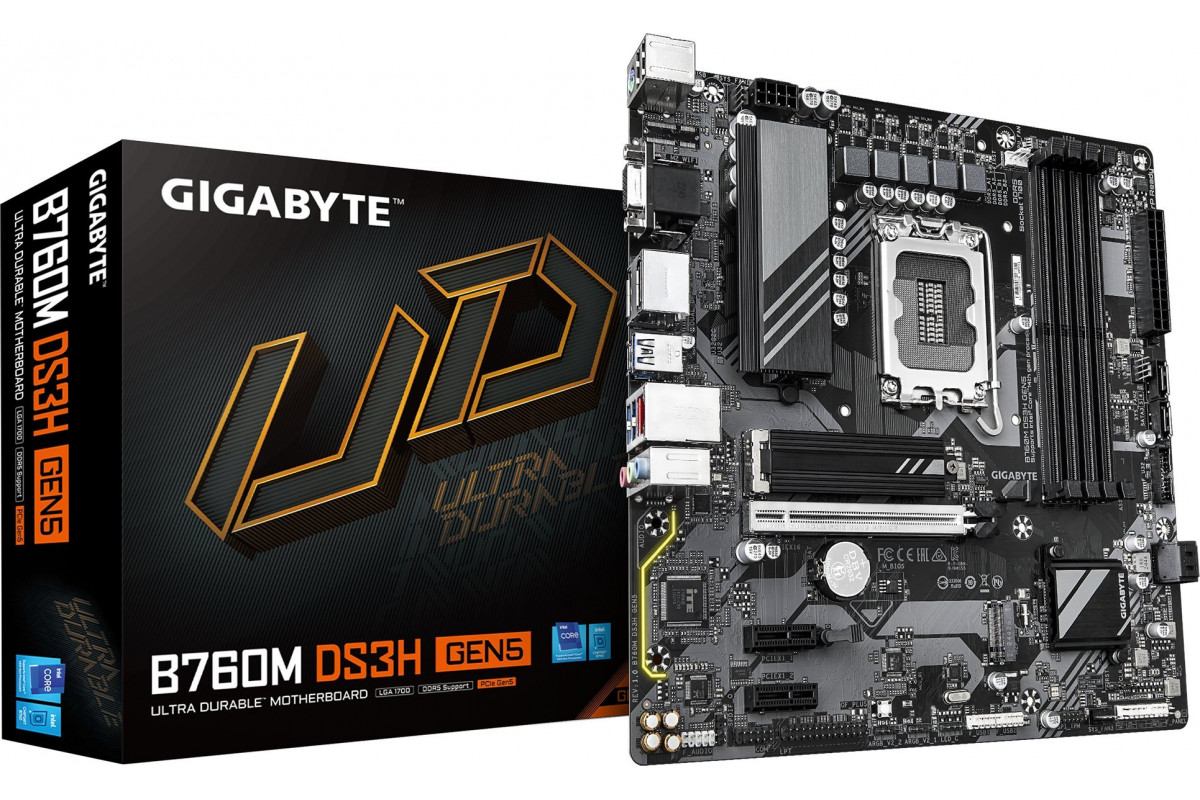

Intel B760 Gigabyte B760M DS3H GEN5

Motherboard Form Factor
Micro ATX
Motherboard Width [mm]
244
Motherboard Depth [mm]
244
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
Intel B760
Motherboard CPU Socket
Socket 1700
Motherboard Supported Processors
Intel Celeron Intel Core i3 Intel Core i5 Intel Core i7 Intel Core i9 Intel Pentium Gold
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
4800 MHz 5200 MHz 5400 MHz 5600 MHz 5800 MHz 6000 MHz 6200 MHz 6400 MHz 6600 MHz 6800 MHz 7000 MHz 7200 MHz 7400 MHz 7600 MHz
Motherboard Maximum Memory Capacity
256 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 897
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000/2500
Motherboard Network Card Chipset
Realtek RTL8125
Motherboard Wireless Connectivity
No
Motherboard Expansion Slots
PCI Express x1 (2 szt.) PCI Express x16 (1 szt.)
Motherboard Drive Connectors
M.2 slot x2 SATA 3 x4
Motherboard Internal Connectors
Przycisk FlexKey x1 Przycisk Q-Flash Plus x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 Złącze addressable RGB LED strip 5V x2 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x1 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN 4-pin x1 Złącze RGB LED x1 Złącze równoległe (LPT) x1 Złącze S/PDIF x1 Złącze SYS FAN 4-pin x3 Złącze szeregowe (COM) x1 Złącze TPM x1 Zworka Clear CMOS x1 Zworka Reset x1

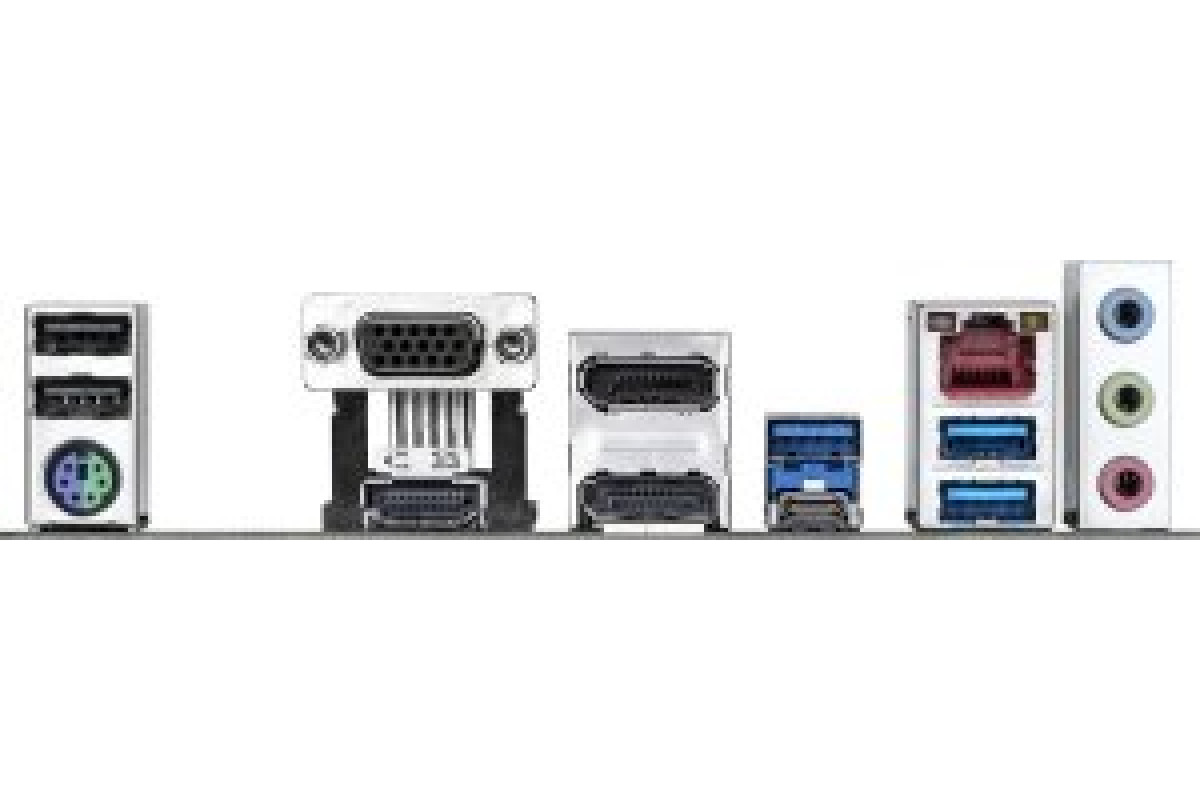

Motherboard Rear Panel
DisplayPort x2 HDMI x1 RJ-45 x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x3 USB-C 3.2 Gen 2 (3.1 Gen 2) x1 Złącze audio x3
