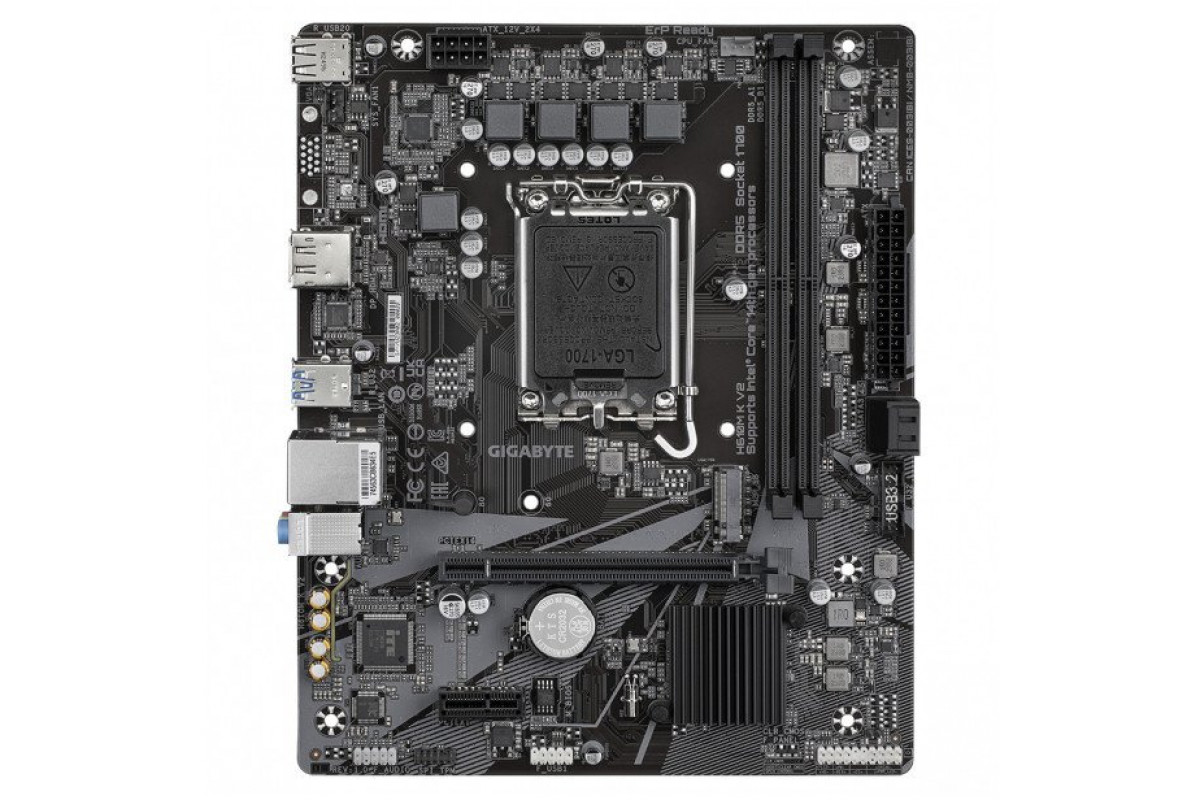

Intel H610 Gigabyte H610M K V2

Motherboard Form Factor
Micro ATX
Motherboard Width [mm]
185
Motherboard Depth [mm]
226
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
Intel H610
Motherboard CPU Socket
Socket 1700
Motherboard Supported Processors
Intel Core i3 Intel Core i5 Intel Core i7 Intel Core i9
Motherboard RAID Controller
No
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
2
Motherboard Memory Frequency
4400 MHz 4800 MHz 5200 MHz 5600 MHz
Motherboard Maximum Memory Capacity
128 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 897
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000
Motherboard Network Card Chipset
Realtek GbE
Motherboard Wireless Connectivity
No
Motherboard Expansion Slots
PCI Express x1 (1 szt.) PCI Express x16 (1 szt.)
Motherboard Drive Connectors
M.2 slot x1 SATA 3 x2
Motherboard Internal Connectors
USB 2.0 x1 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x1 Złącze audio panelu przedniego (AAFP) x1 Złącze Clear CMOS x1 Złącze przedniego panelu x1 Złącze SYS FAN 4-pin x1 Złącze TPM x1
Motherboard Rear Panel
DisplayPort x1 HDMI x1 RJ-45 x1 USB 2.0 x4 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x2 Złącze audio x3
