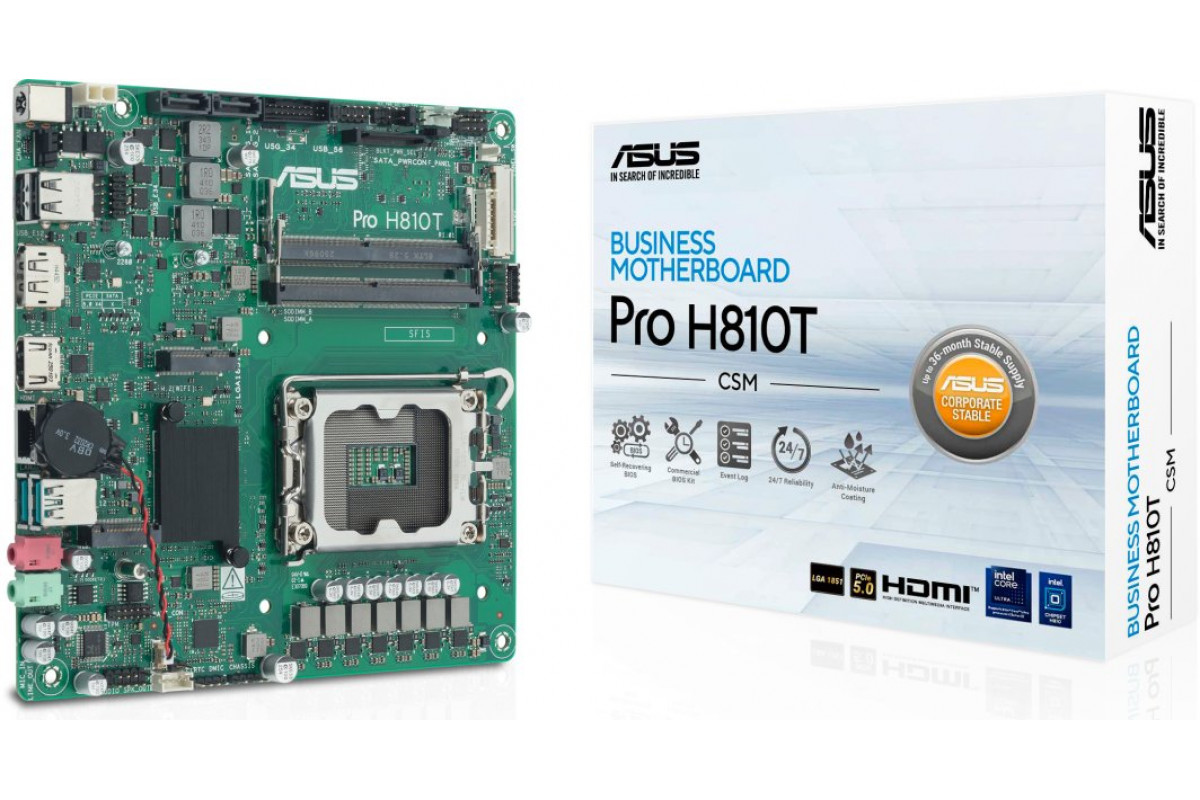

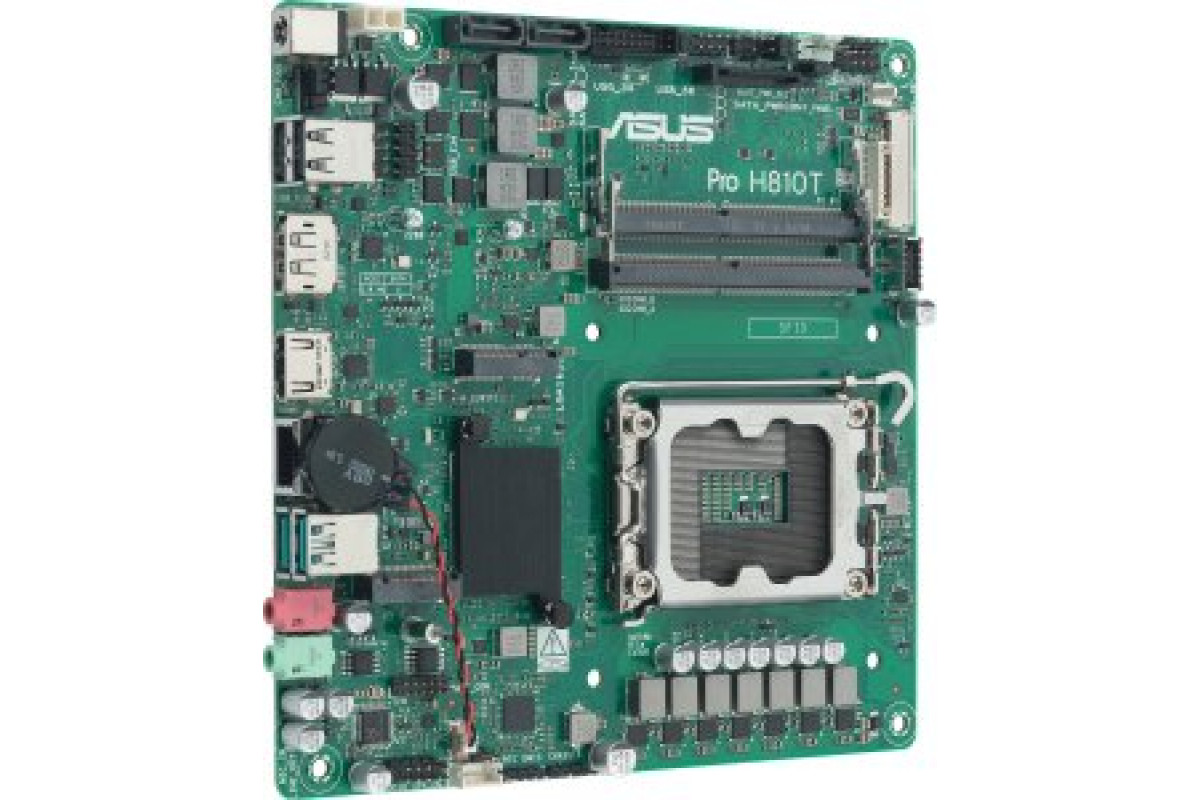

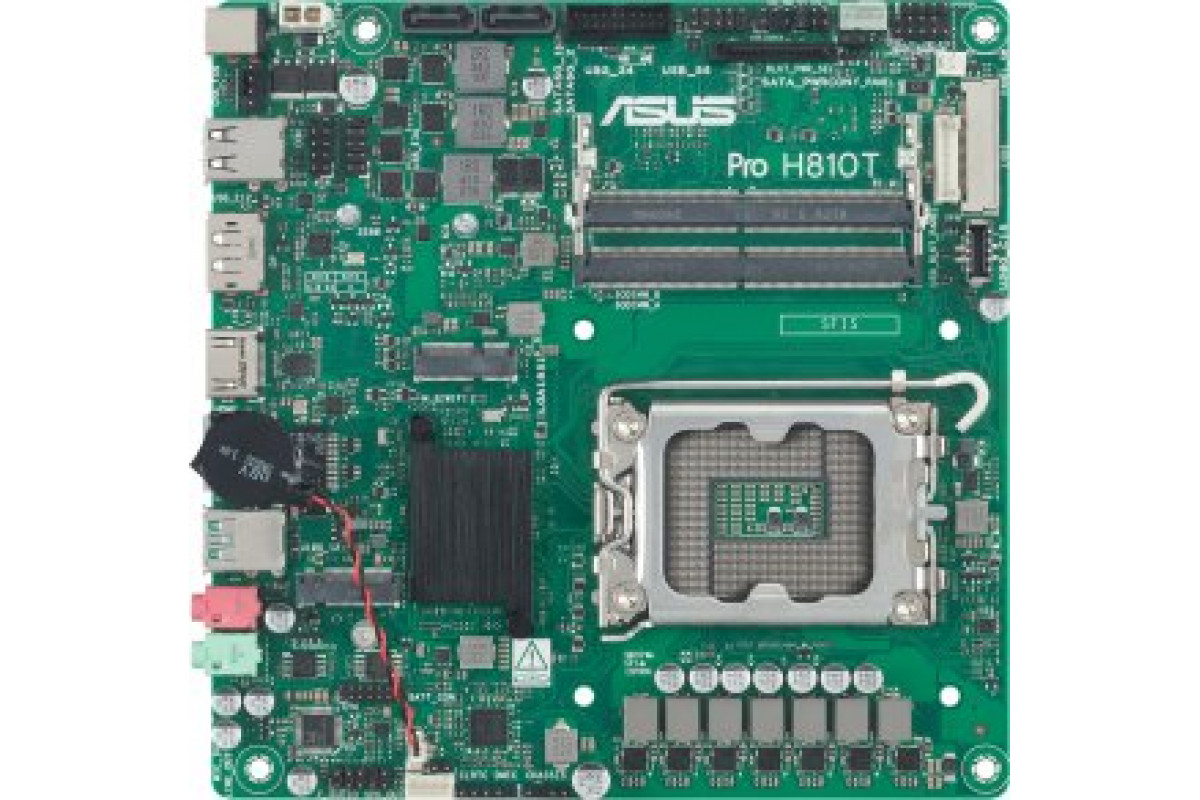

Intel H810 Asus PRO H810T-CSM

Motherboard Form Factor
Mini ITX
Motherboard Width [mm]
170
Motherboard Depth [mm]
170
Motherboard Color
Green
Motherboard Usage
Other
Motherboard Chipset
Intel H810
Motherboard CPU Socket
Socket 1851
Motherboard Supported Processors
Intel Core Ultra 5 Intel Core Ultra 7 Intel Core Ultra 9
Motherboard RAID Controller
No
Motherboard Memory Standard
DDR5
Motherboard Connector Type
SO-DIMM
Motherboard Number of Memory Slots
2
Motherboard Memory Frequency
4800 MHz 5200 MHz 5600 MHz 6000 MHz 6400 MHz
Motherboard Maximum Memory Capacity
128 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000
Motherboard Network Card Chipset
Realtek GbE
Motherboard Wireless Connectivity
No
Motherboard Expansion Slots
M.2 Wi-Fi (1 szt.)
Motherboard Drive Connectors
M.2 slot x1 SATA 3 x2
Motherboard Internal Connectors
USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 2x2 x1 Złącze 2-pin +19V Power x1 Złącze audio panelu przedniego (AAFP) x1 Złącze backlight inverter voltage selection x1 Złącze Clear CMOS x1 Złącze CPU FAN 4-pin x1 Złącze czujnika otwarcia obudowy x1 Złącze DMIC x1 Złącze FPD brightness x1 Złącze głośnika x1 Złącze LVDS x1 Złącze panel off x1 Złącze panel voltage selection x1 Złącze przedniego panelu x1 Złącze SATA power x1 Złącze SYS FAN 4-pin x1 Złącze szeregowe (COM) x1 Złącze TPM x1

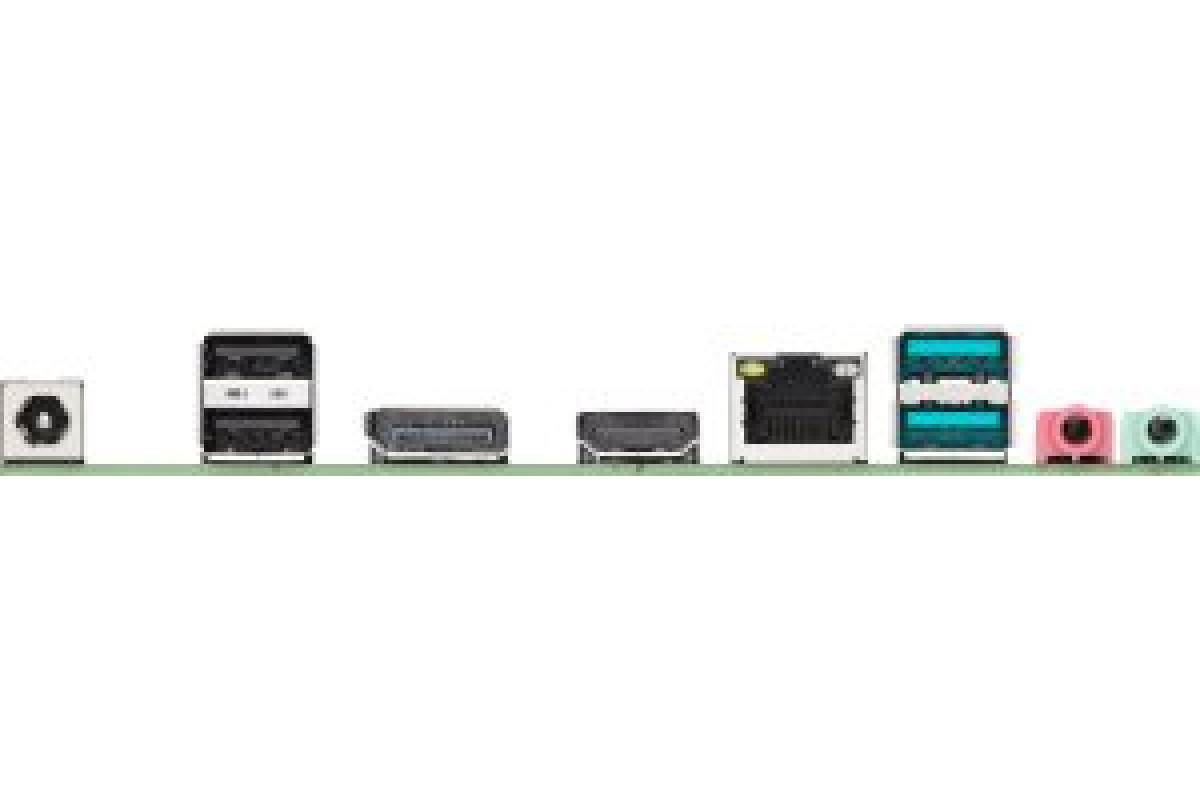

Motherboard Rear Panel
DisplayPort x1 HDMI x1 RJ-45 x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x2 Wejście zasilania x1 Złącze audio x2
Motherboard Included Accessories
Osłona I/O Przewód SATA III x2 Przewód zasilający SATA
