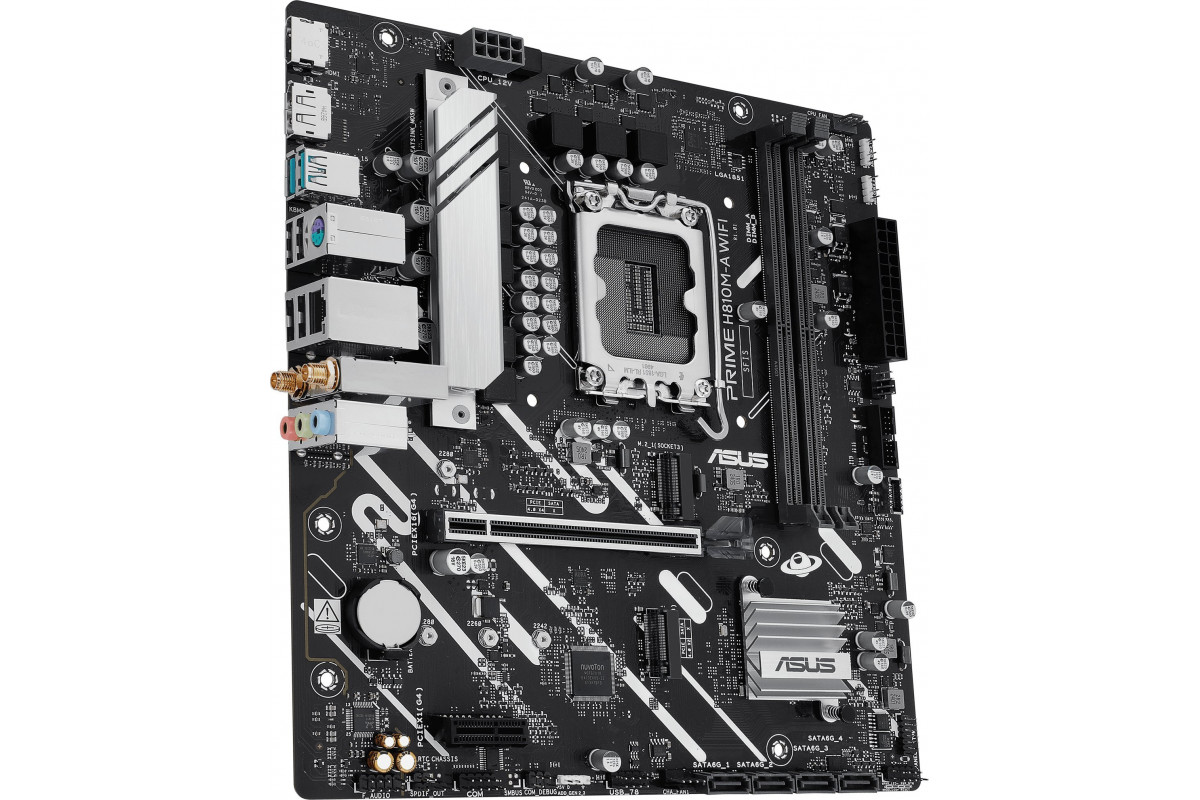

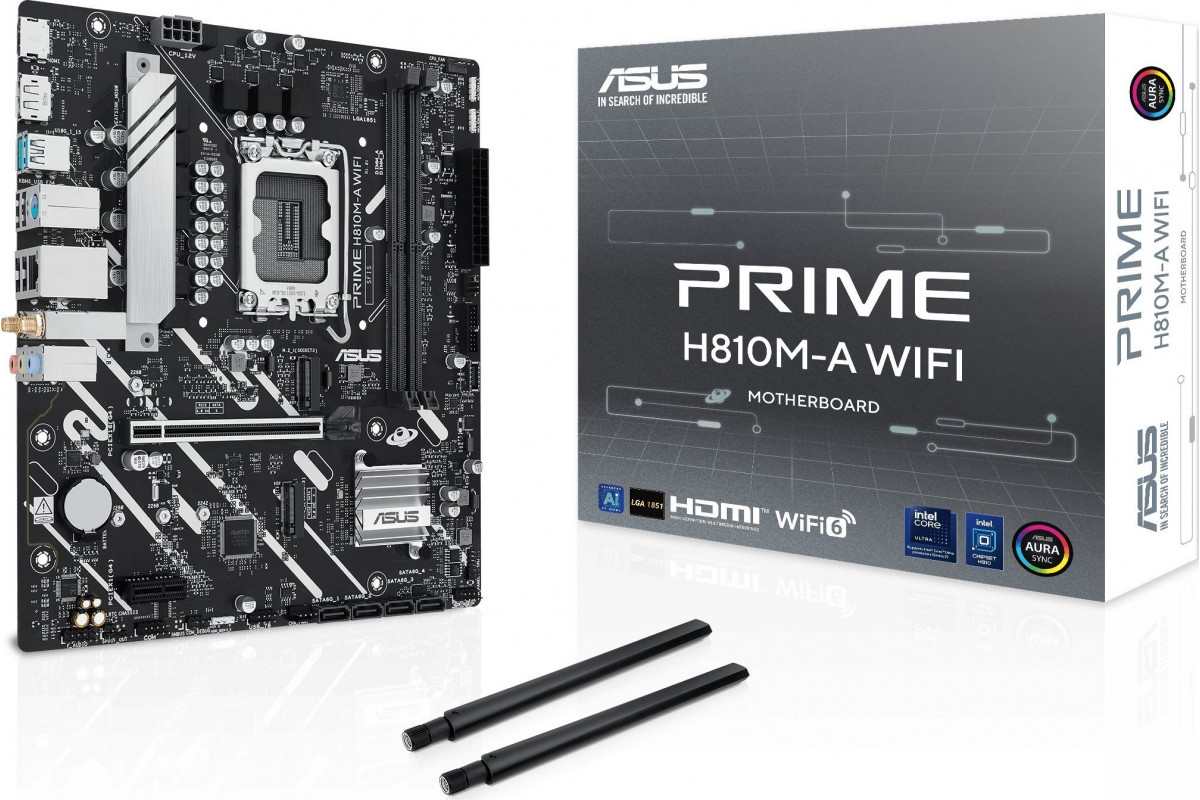

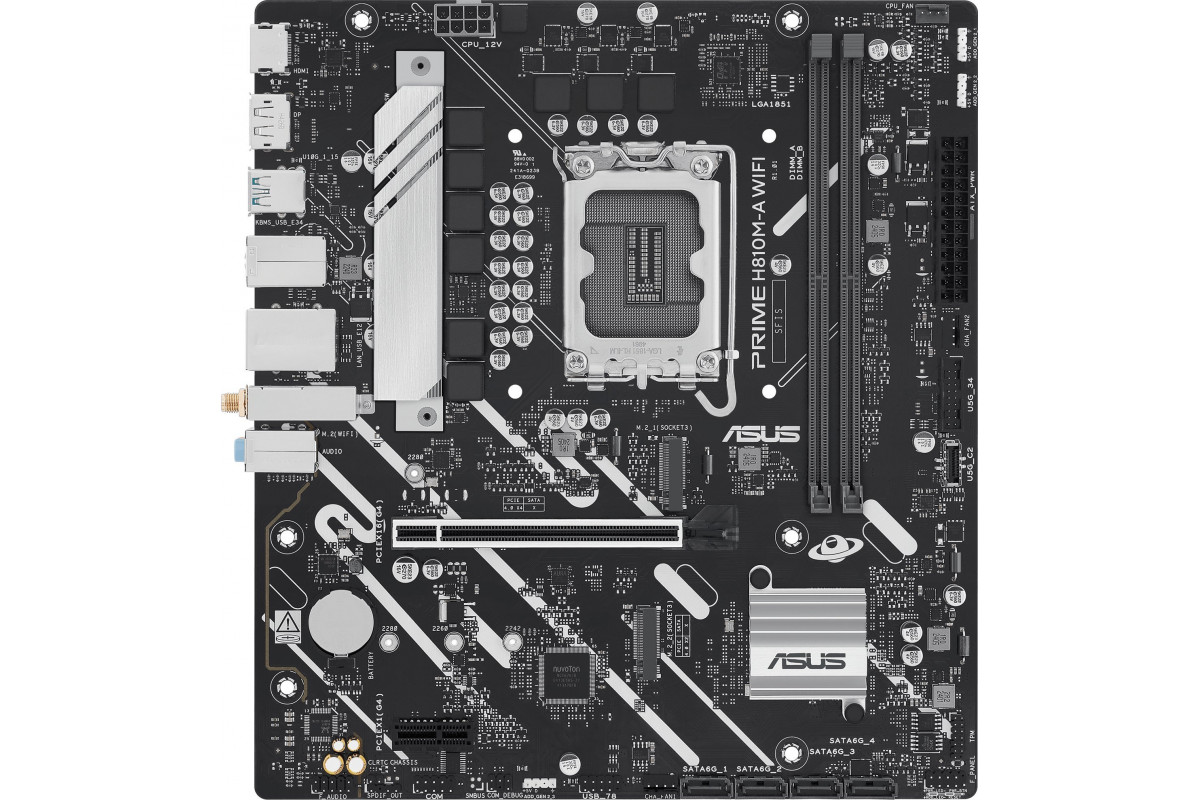

Intel H810 Asus PRIME H810M-A WIFI

Motherboard Form Factor
Micro ATX
Motherboard Width [mm]
220
Motherboard Depth [mm]
244
Motherboard Color
Silver/White/Black
Motherboard Usage
Gaming
Motherboard Chipset
Intel H810
Motherboard CPU Socket
Socket 1851
Motherboard Supported Processors
Intel Core Ultra 5 Intel Core Ultra 7 Intel Core Ultra 9
Motherboard RAID Controller
No
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
2
Motherboard Memory Frequency
4800 MHz 5200 MHz 5600 MHz 5800 MHz 6000 MHz 6200 MHz 6400 MHz
Motherboard Maximum Memory Capacity
128 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000
Motherboard Network Card Chipset
Intel I219-V Realtek Wi-Fi 6 RTL8851BE
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Motherboard Expansion Slots
PCI Express x1 (1 szt.) PCI Express x16 (1 szt.)
Motherboard Drive Connectors
M.2 slot x2 SATA 3 x4
Motherboard Internal Connectors
USB 2.0 x1 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 1 (3.0/3.1 Gen 1) x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x1 Złącze audio panelu przedniego (AAFP) x1 Złącze AURA Addressable Gen 2 x3 Złącze Clear CMOS x1 Złącze CPU FAN 4-pin x1 Złącze przedniego panelu x1 Złącze S/PDIF x1 Złącze SYS FAN 4-pin x2 Złącze szeregowe (COM) x1 Złącze TPM x1
Motherboard Rear Panel
DisplayPort x1 HDMI x1 PS/2 (klawiatura/mysz) x1 RJ-45 x1 USB 2.0 x4 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x2 Złącze anteny WiFi x1 Złącze audio x3
Motherboard Included Accessories

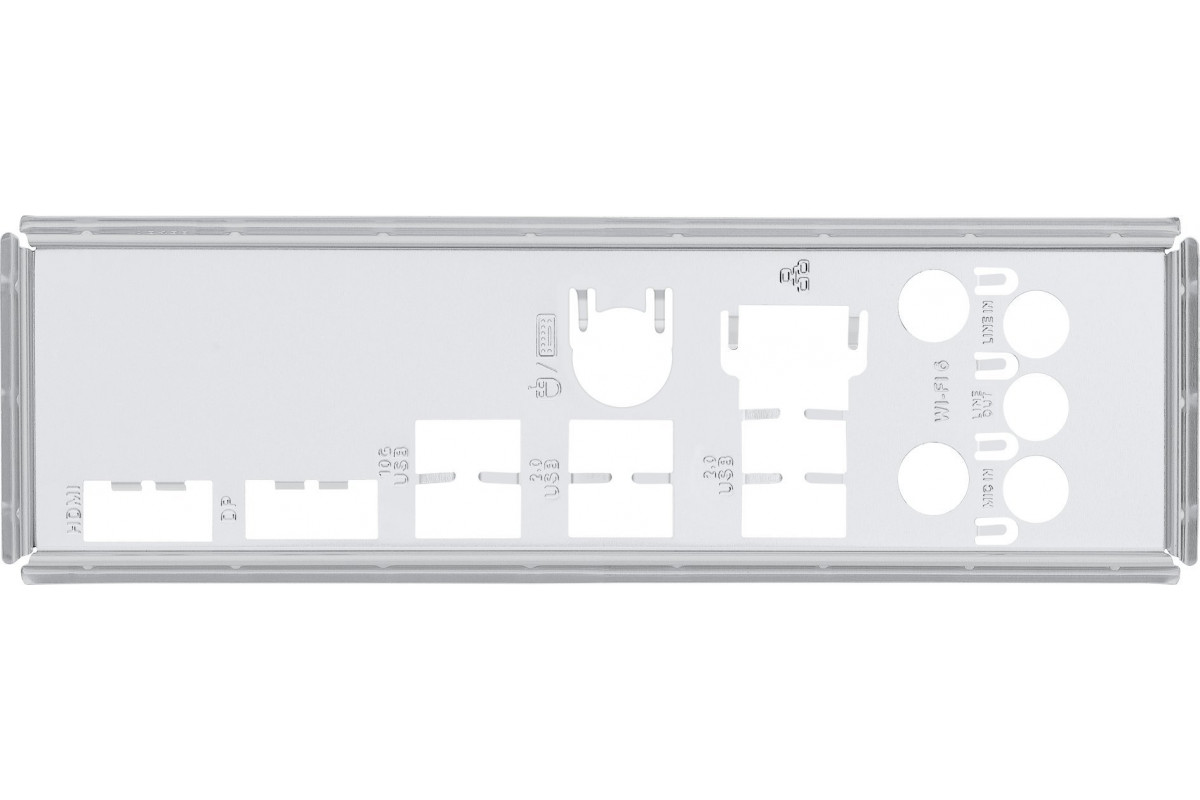

Antena WiFi Osłona I/O Przewód SATA III x2 Śruby do modułu M.2
