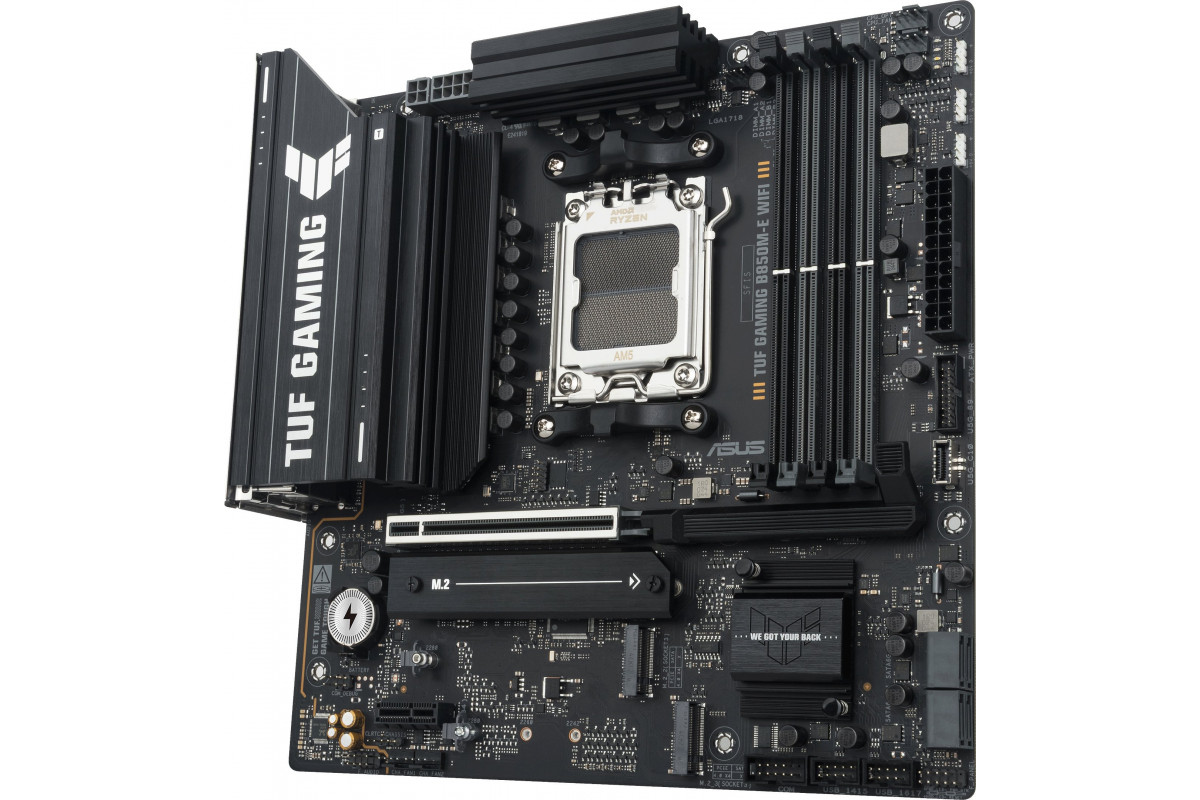

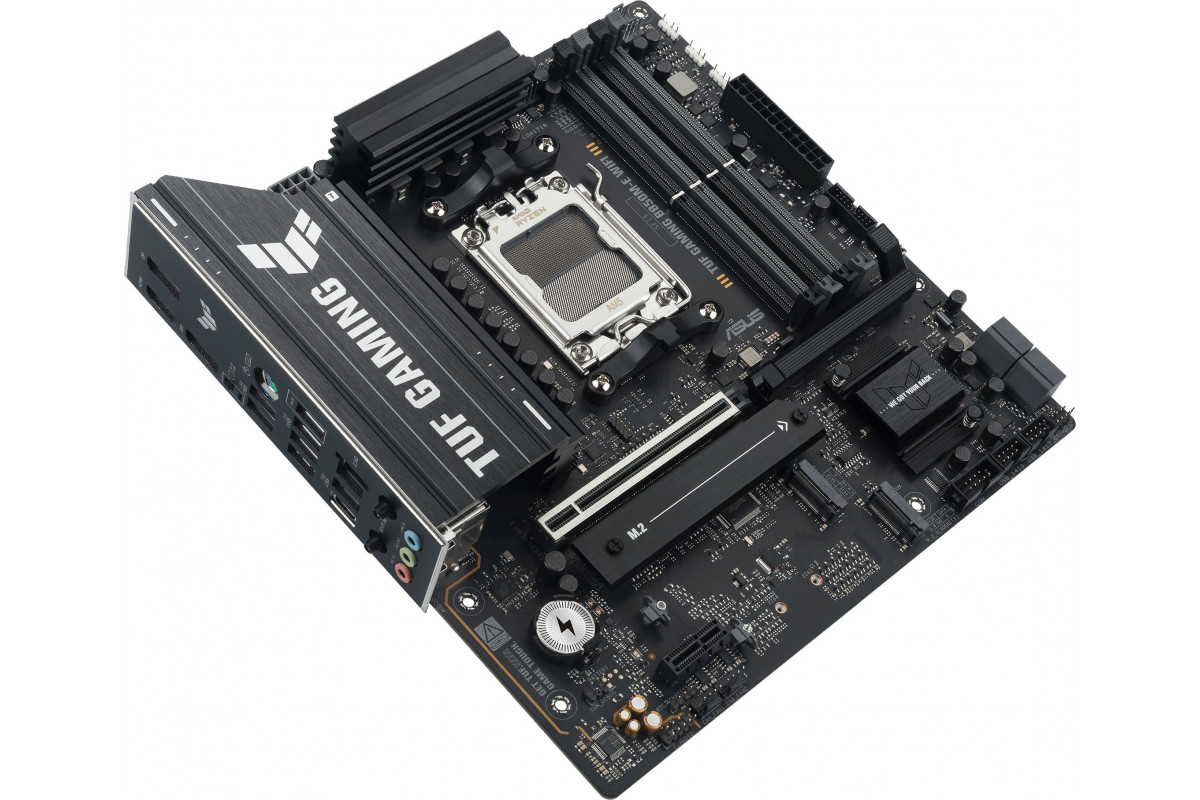

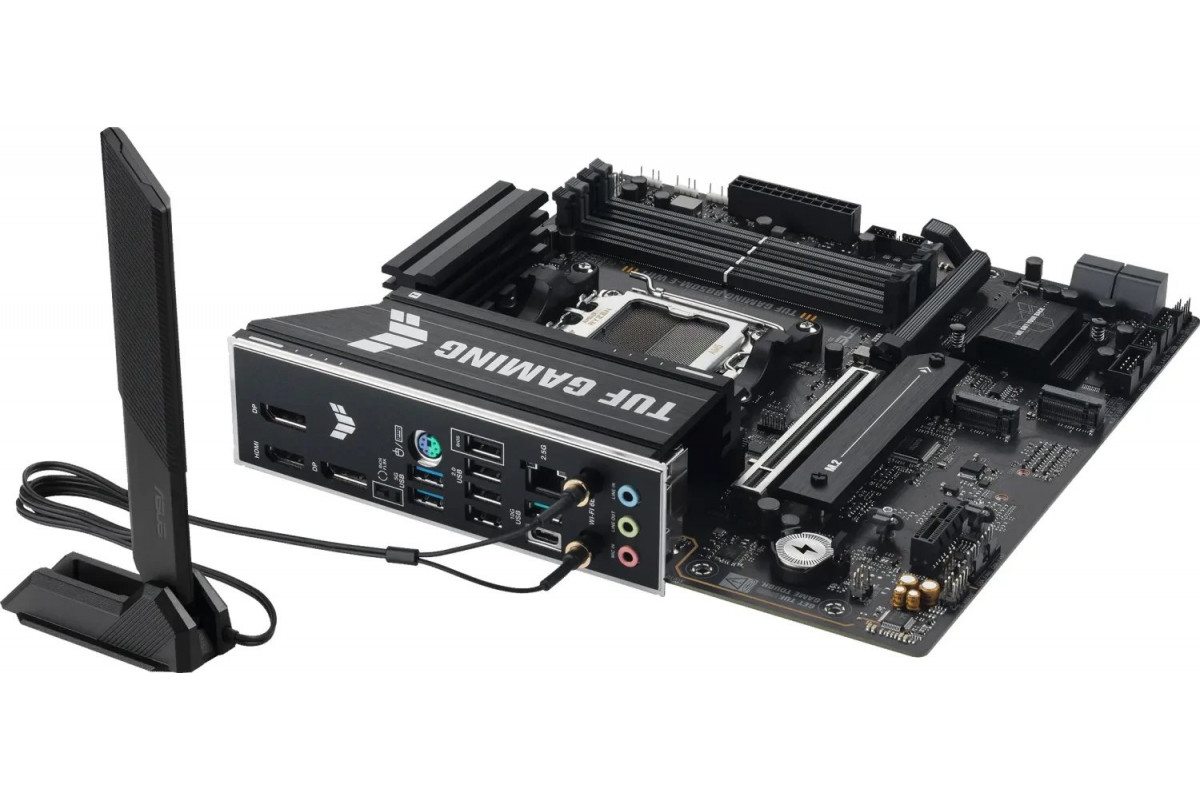

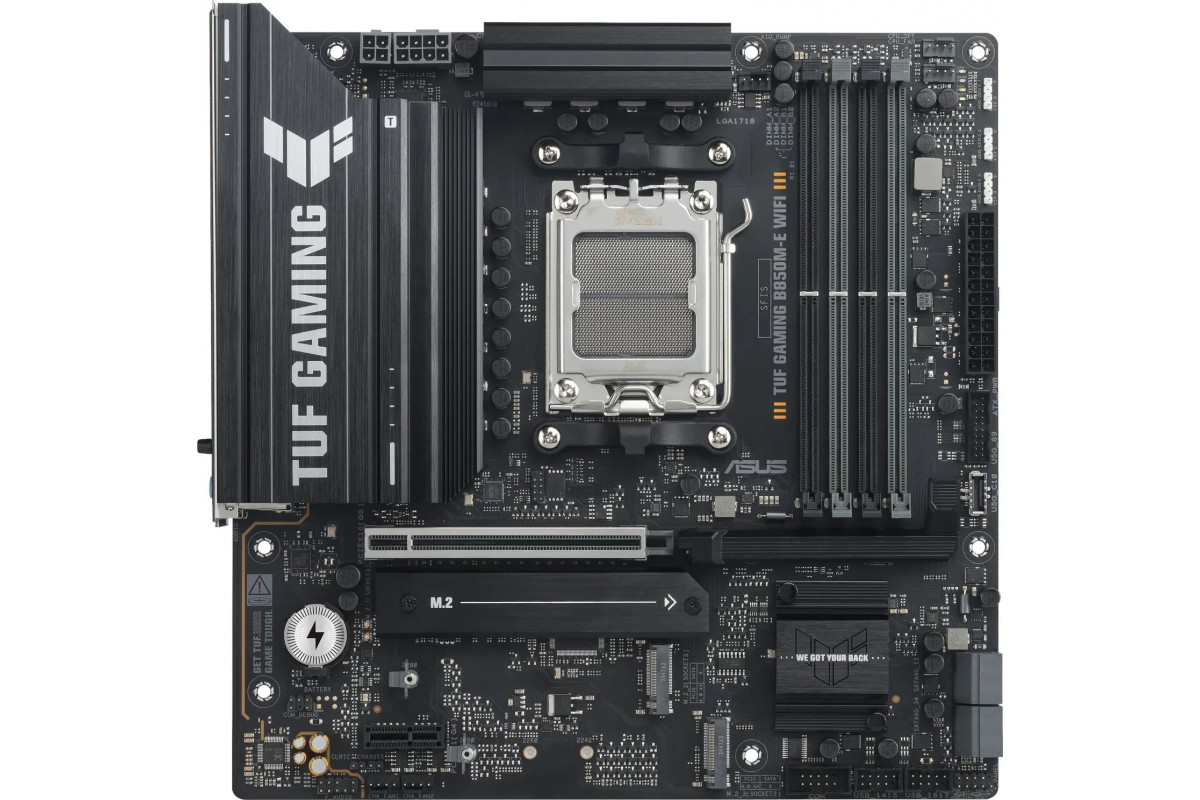

Asus TUF GAMING B850M-E WIFI

Physical:

• Motherboard standard: Micro ATX

• Width [mm]: 244

• Depth [mm]: 244

Technical:

• Application: Gaming

• Chipset: AMD B850

• Processor socket: Socket AM5

• Supported processors: AMD Ryzen

• RAID controller: RAID 0, RAID 1, RAID 10, RAID 5

Memory:

• Memory standard: DDR5

• Connector type: U-DIMM

• Number of memory slots: 4

• Memory frequencies: 4800 MHz, 5200 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 6800 MHz, 7000 MHz, 7200 MHz, 7600 MHz, 7800 MHz, 8000 MHz

• Maximum memory capacity: 256 GB

• Multi-channel architecture: Dual-Channel

Graphics:

• Integrated graphics support: Yes

• Graphics chipset: Dependent on processor

• Graphics card pairing: No

Audio:

• Audio chipset: Realtek

• Audio channels: 7.1

Communication:

• Integrated network card: 10/100/1000/2500

• Network card chipset: Realtek 2.5GbE

• Wireless: Bluetooth, Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Ports:

• Expansion slots:

  • PCI Express x1 (1)

  • PCI Express x16 (1)

• Drive connectors:

  • M.2 slot x3

  • SATA 3 x4

• Internal connectors:

  • USB 2.0 x2

  • USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1

  • USB-C 3.2 Gen 1 (3.0/3.1 Gen 1) x1

  • Addressable RGB LED strip 5V x3

  • AIO_PUMP 4-pin x1

  • ATX 24-pin 12V x1

  • ATX 4-pin 12V x1

  • ATX 8-pin 12V x1

  • Front panel audio connector (AAFP) x1

  • Clear CMOS connector x1

  • CPU FAN 4-pin x1

  • CPU_OPT FAN 4-pin x1

  • Chassis open sensor connector x1

  • Front panel connector x1

  • SYS FAN 4-pin x2

  • Serial (COM) connector x1

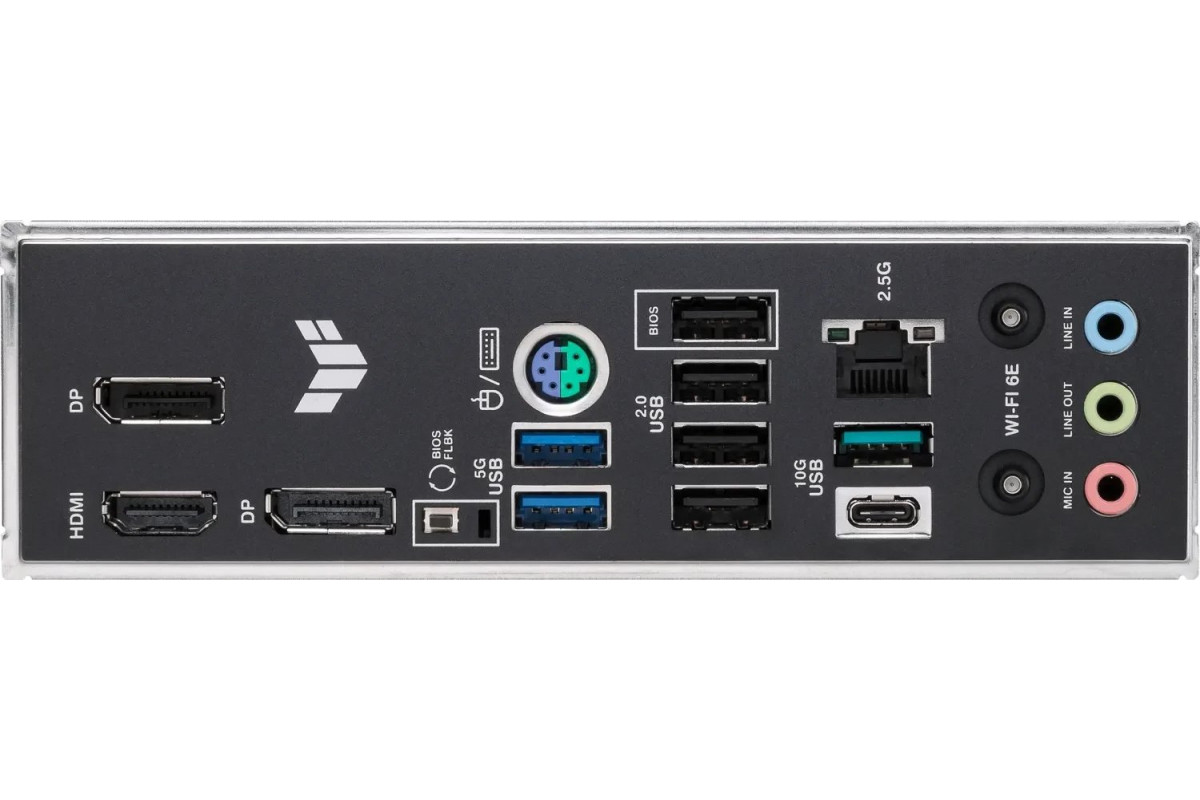

Rear Panel:

• DisplayPort x2

• HDMI x1

• BIOS Flashback button x1

• PS/2 (keyboard/mouse) x1

• RJ-45 x1

• USB 2.0 x4

• USB 3.2 Gen 1 (3.0/3.1 Gen 1) x2

• USB 3.2 Gen 2 (3.1 Gen 2) x1

• USB-C 3.2 Gen 2 (3.1 Gen 2) x1

• Wi-Fi antenna connectors x2

• Audio connectors x3

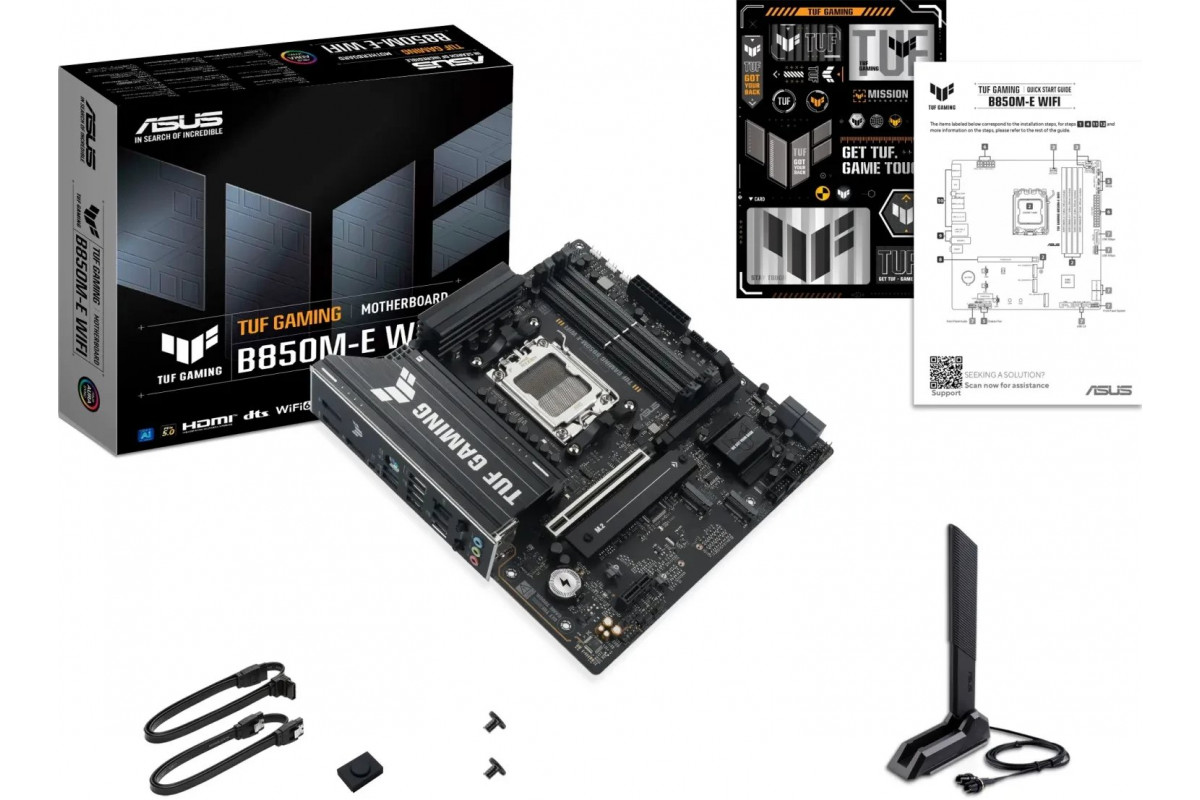

Accessories:

• Included accessories: Wi-Fi antenna, Stickers, SATA III cable x2, M.2 module screws
