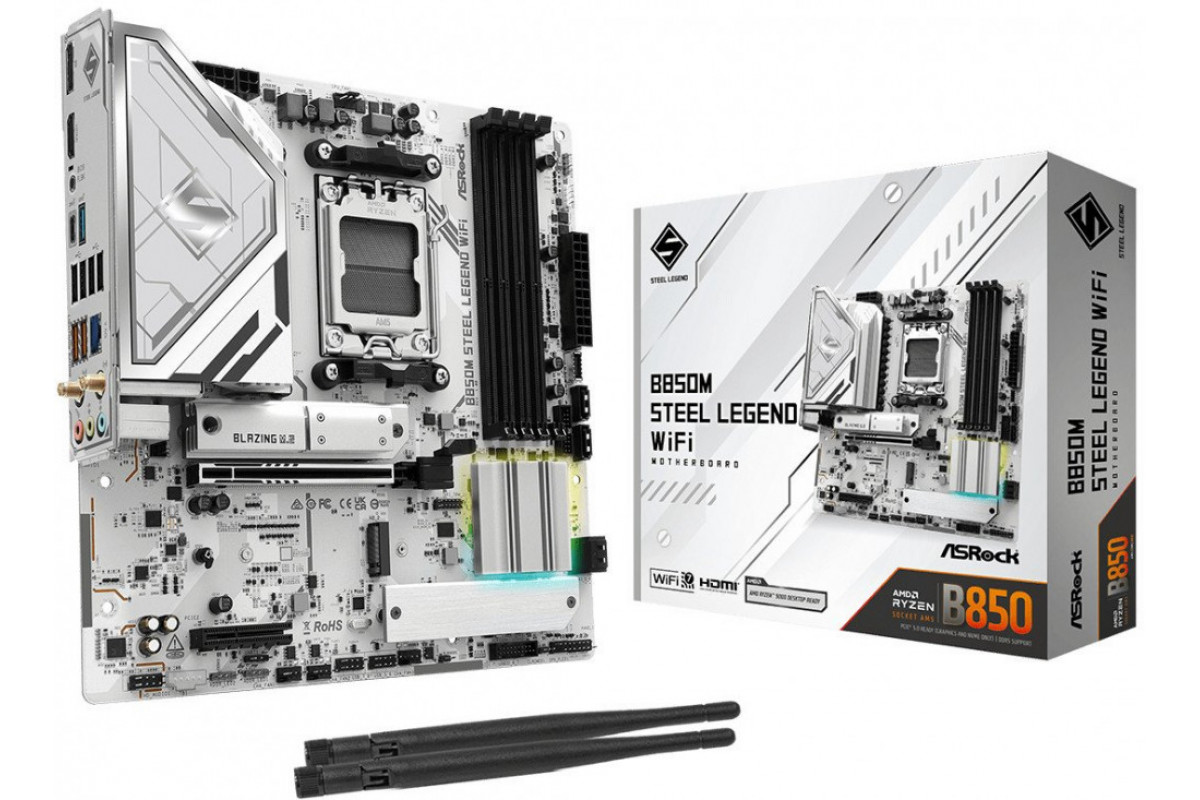

ASRock B850M STEEL LEGEND WIFI

Physical

• Form Factor: Micro ATX

• Width: 244 mm

• Depth: 244 mm

Technical Specifications

• Intended Use: Gaming

• Chipset: AMD B850

• CPU Socket: AM5

• Supported CPUs: AMD Ryzen (AM5-compatible)

• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10

Memory

• Memory Type: DDR5

• Memory Slots: 4 × U-DIMM

• Supported Frequencies:
  4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz

• Maximum Memory: 256 GB

• Channel Architecture: Dual-Channel

Graphics

• Integrated Graphics Support: Yes (depends on CPU)

• Graphics Chipset: CPU-dependent

• Multi-GPU Support: No

Audio

• Audio Chipset: Realtek ALC 1220

• Audio Channels: 7.1 Surround

Networking

• Wired LAN: 10/100/1000/2500 Mbps

• LAN Chipset: Realtek RTL8125BG

• Wireless Connectivity:

  • Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)

  • Bluetooth

Expansion Slots

• M.2 Wi-Fi Slot: 1

• PCIe x16 Slot: 1

• PCIe x4 Slot: 1

Storage Interfaces

• M.2 Slots: 3

• SATA III Ports: 4

Internal Connectors

• USB 2.0 Headers: 2

• USB 3.2 Gen 1 Headers: 2

• USB-C 3.2 Gen 1 Header: 1

• Addressable RGB LED (5V) Headers: 3

• ATX 24-pin 12V Power Connector: 1

• ATX 4-pin 12V Connector: 1

• ATX 8-pin 12V Connector: 1

• Front Audio Panel Header (AAFP): 1

• CPU Fan 4-pin Headers: 2

• Thermal Sensor Header: 1

• Power LED Header: 1

• RGB LED Header: 1

• System Fan 4-pin Headers: 3

• TPM Header: 1

Rear I/O Ports

• DisplayPort: 1

• HDMI: 1

• BIOS Flashback Button: 1

• RJ-45 LAN Port: 1

• USB 2.0 Ports: 4

• USB 3.2 Gen 1 Ports: 2

• USB 3.2 Gen 2 Ports: 1

• USB-C 3.2 Gen 2 Port: 1

• Wi-Fi Antenna Connectors: 2

• Audio Jacks: 3

Included Accessories

• Wi-Fi Antennas ×2

• Thermal Sensor Cable

• SATA III Cables ×2

• M.2 Mounting Screws
