Physical
Form factor: ATX
Width [mm]: 243.8
Depth [mm]: 304.8
Technical
Application: Gaming
Chipset: AMD X870E
CPU socket: Socket AM5
Supported processors: AMD Ryzen
RAID controller: RAID 0, RAID 1, RAID 5, RAID 10
Memory
Memory type: DDR5
Connector type: U-DIMM
Memory slots: 4
Supported memory frequencies: 4800 / 5200 / 5600 / 5800 / 6000 / 6200 / 6400 / 6600 / 6800 / 7000 / 7200 / 7600 / 7800 / 8000 / 8200 MHz
Maximum memory capacity: 256 GB
Memory architecture: Dual-Channel
Graphics
Integrated graphics support: Yes
Graphics chipset: Depends on processor
Multi-GPU support: No
Audio
Audio chipset: Realtek ALC897
Audio channels: 7.1
Networking
Integrated LAN: 100/1000/2500/5000 Mbps
Network chipsets: Qualcomm Wi-Fi 7 QCNCM865, Realtek 8126VB
Wireless: Bluetooth, Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
Connectors
Expansion slots:
-
PCI Express x1 ×1
-
PCI Express x16 ×3
Storage connectors:
-
M.2 slot ×3
-
SATA 3 ×4
Internal connectors:
-
USB 2.0 ×3
-
USB 3.2 Gen 1 ×2
-
USB-C 3.2 Gen 2 ×1
-
Addressable RGB LED strip 5V ×3
-
AIO_PUMP 4-pin ×1
-
ATX 24-pin 12V ×1
-
ATX 8-pin 12V ×2
-
ATX 8-pin PCIe ×1
-
Front panel audio (AAFP) ×1
-
CPU FAN 4-pin ×1
-
Chassis intrusion sensor ×1
-
EZ Conn header ×1
-
Front panel header ×1
-
RGB LED header ×1
-
SYS FAN 4-pin ×6
-
TPM header ×1
-
Tuning Controller header ×1

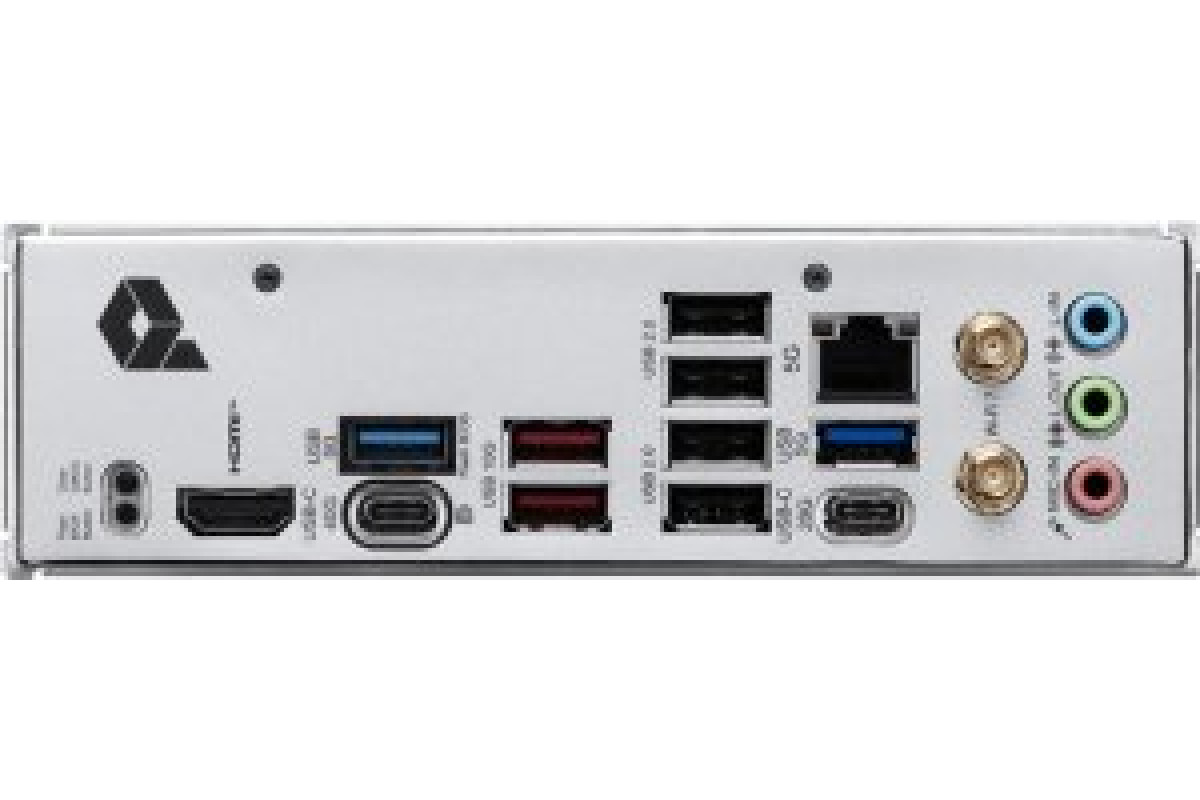

Rear I/O panel:
-
HDMI ×1
-
BIOS Flashback button ×1
-
Clear CMOS button ×1
-
RJ-45 ×1
-
USB 2.0 ×4
-
USB 3.2 Gen 1 ×2
-
USB 3.2 Gen 2 ×2
-
USB-C 3.2 Gen 2x2 ×1
-
USB4 ×1
-
Wi-Fi antenna connectors ×2
-
Audio jacks ×3
Included accessories:
-
Wi-Fi antenna
-
EZ Conn cable
-
SATA III cable ×2
-
M.2 mounting screws
