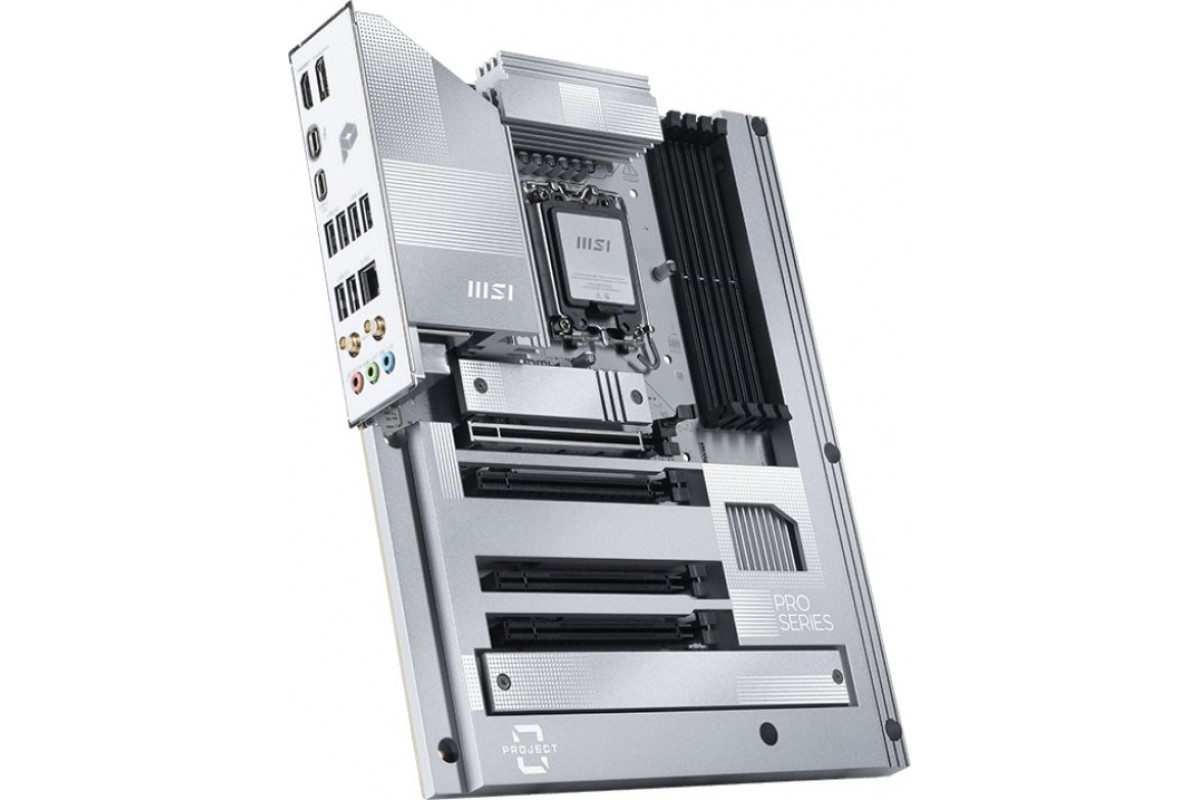

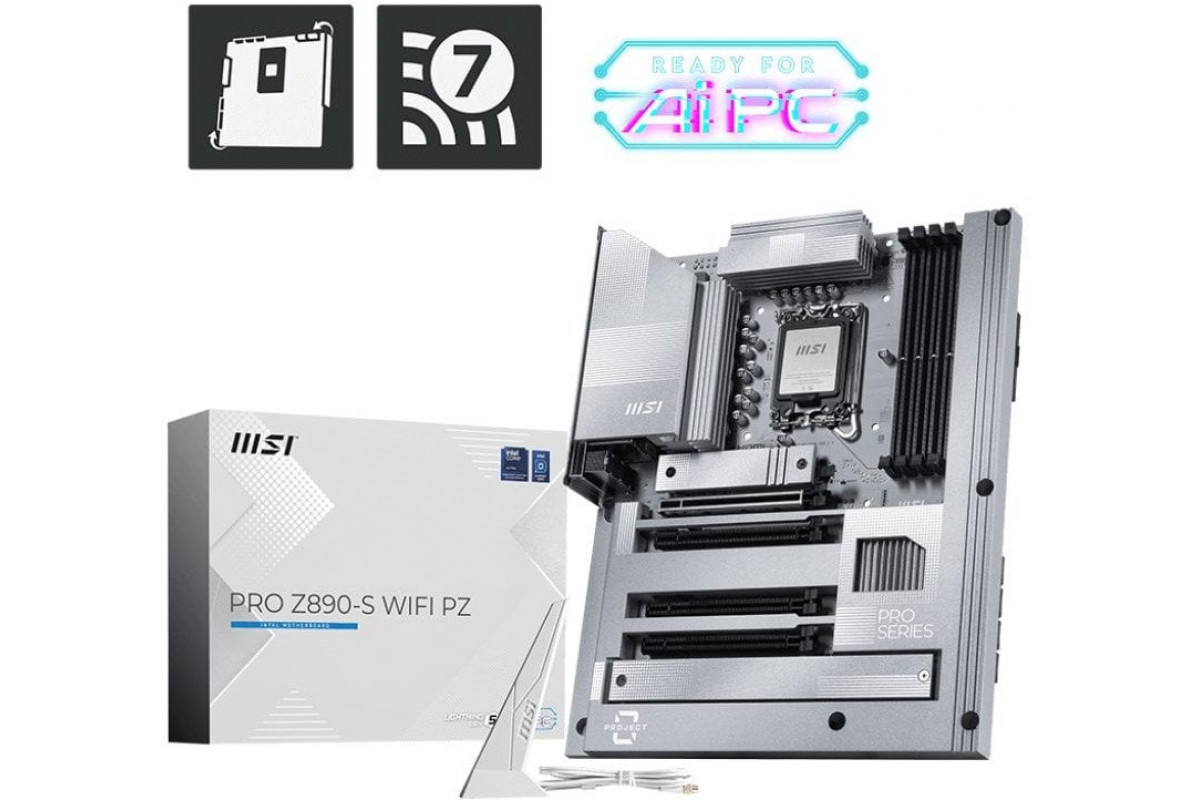

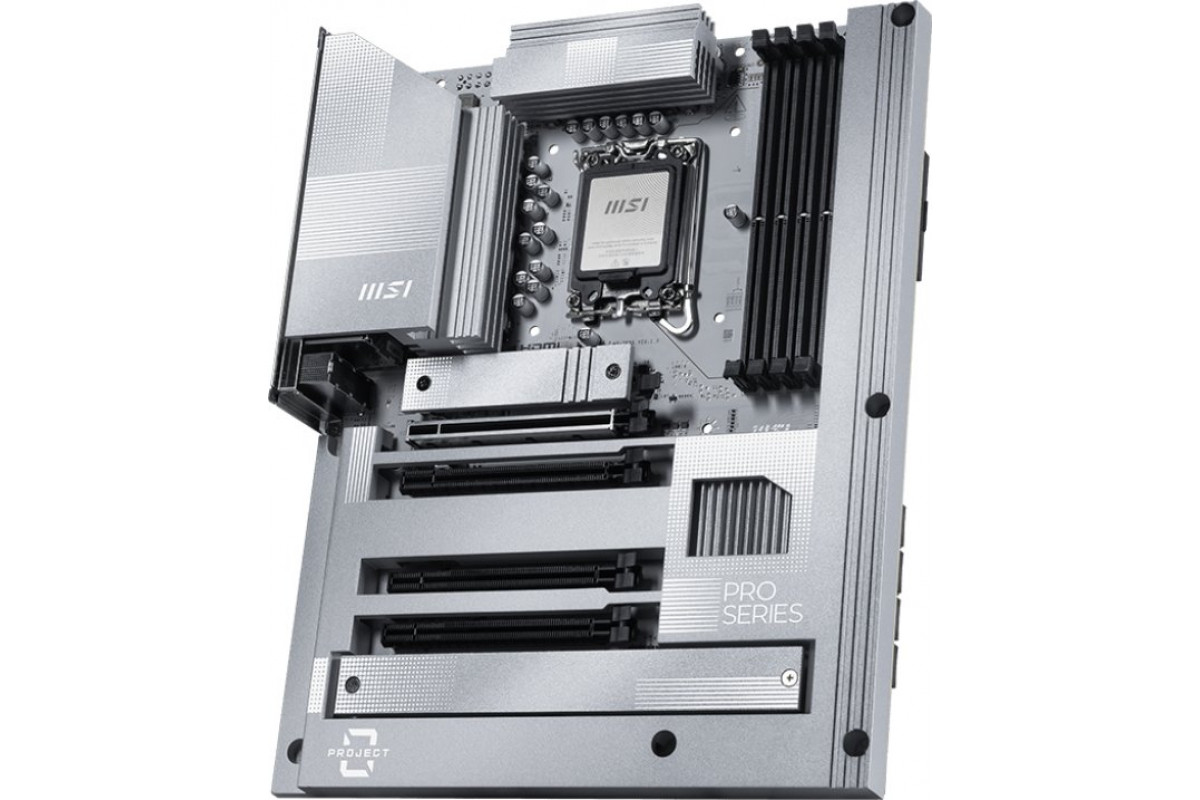

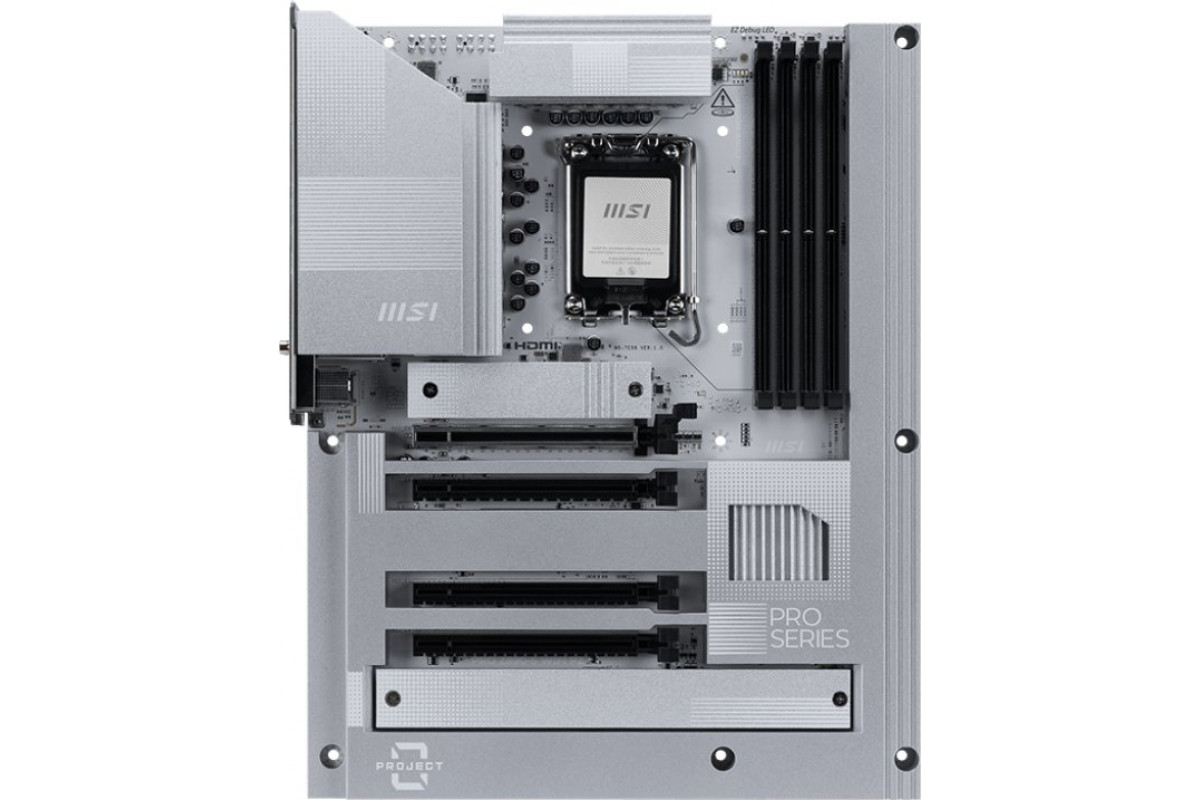

Intel Z890 MSI PRO Z890-S WIFI PZ

Motherboard Form Factor
ATX
Motherboard Width [mm]
243.8
Motherboard Depth [mm]
304.8
Motherboard Color
White
Motherboard Usage
Gaming
Motherboard Chipset
Intel Z890
Motherboard CPU Socket
Socket 1851
Motherboard Supported Processors
Intel Core Ultra 5 Intel Core Ultra 7 Intel Core Ultra 9
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
4800 MHz 5200 MHz 5600 MHz 6000 MHz 6200 MHz 6400 MHz 6800 MHz 7000 MHz 7200 MHz 7600 MHz 7800 MHz 8000 MHz 8200 MHz 8400 MHz 8600 MHz 8800 MHz
Motherboard Maximum Memory Capacity
256 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 897
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000/2500
Motherboard Network Card Chipset
Realtek RTL8125D
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
Motherboard Expansion Slots
PCI Express x16 (4 szt.)
Motherboard Drive Connectors
M.2 slot x3 SATA 3 x4
Motherboard Internal Connectors
EZ Debug LED x4 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 2x2 x1 Złącze addressable RGB LED strip 5V x3 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x2 Złącze ATX 8-pin PCIe x1 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN 4-pin x1 Złącze czujnika otwarcia obudowy x1 Złącze EZ Conn x1 Złącze pinowe Thunderbolt 5 AIC x1 Złącze przedniego panelu x2 Złącze RGB LED x1 Złącze SYS FAN 4-pin x4 Złącze TPM x1 Złącze Tuning Controller x1

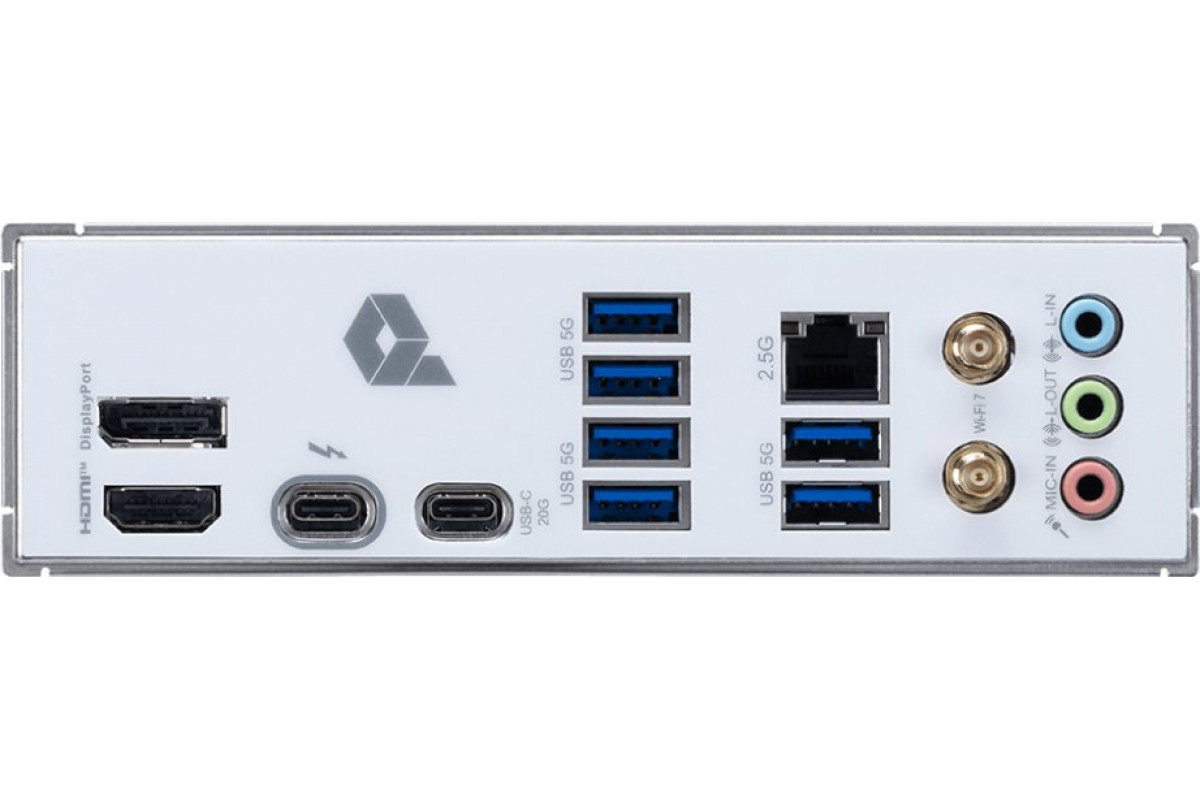

Motherboard Rear Panel
DisplayPort x1 HDMI x1 RJ-45 x1 Thunderbolt 4 x1 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x6 USB-C 3.2 Gen 2x2 x1 Złącze anteny WiFi x2 Złącze audio x3
Motherboard Included Accessories
Antena WiFi Przewód EZ Conn Przewód SATA III x2 Śruby do modułu M.2
