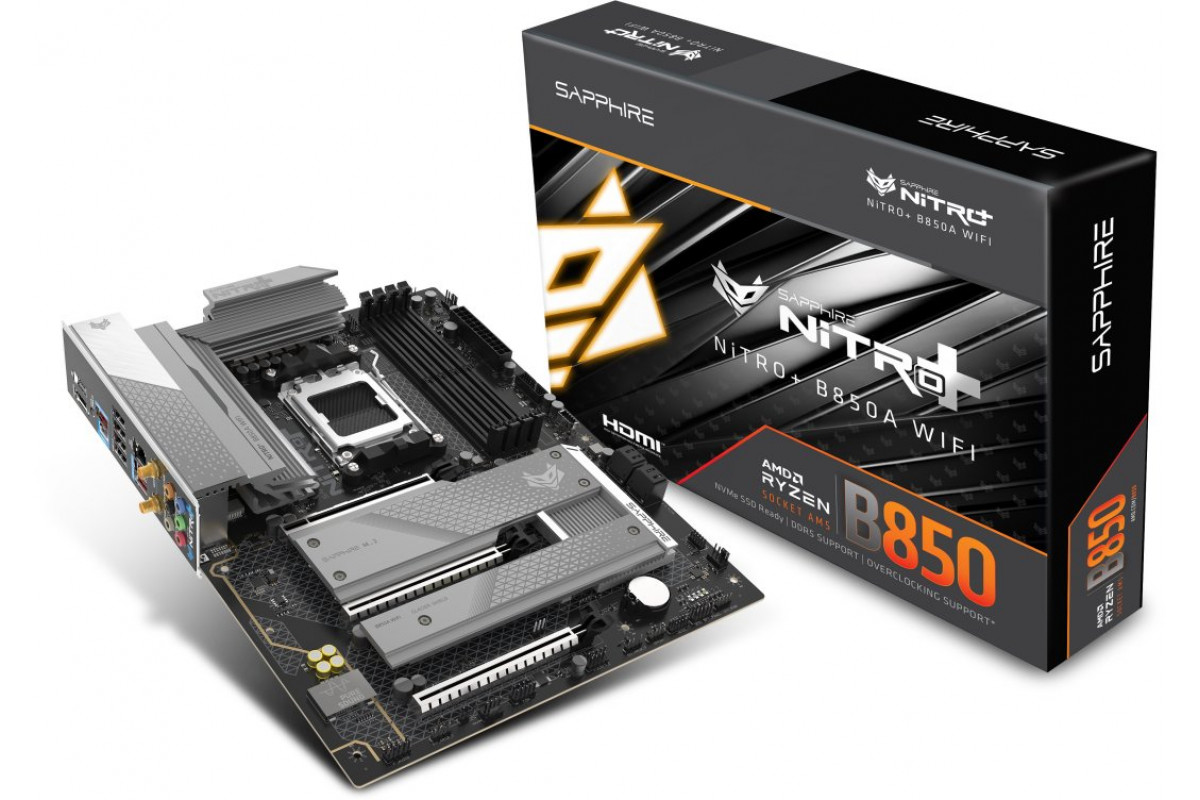

AMD B850 Sapphire NITRO+ B850A WIFI 7

Motherboard Form Factor
ATX
Motherboard Width [mm]
244
Motherboard Depth [mm]
305
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
AMD B850
Motherboard CPU Socket
Socket AM5
Motherboard Supported Processors
AMD Ryzen
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
8000 MHz
Motherboard Maximum Memory Capacity
256 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 897
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000/2500
Motherboard Network Card Chipset
Realtek RTL8125BG
Motherboard Wireless Connectivity
Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
Motherboard Expansion Slots
PCI Express x16 (3 szt.)
Motherboard Drive Connectors
M.2 slot x3 SATA 3 x4
Motherboard Internal Connectors
USB 2.0 x1 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 1 (3.0/3.1 Gen 1) x1 Złącze addressable RGB LED strip 5V x3 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x2 Złącze CPU FAN 4-pin x1 Złącze głośnika x1 Złącze RGB LED x1 Złącze SYS FAN 4-pin x3 Złącze szeregowe (COM) x1
Motherboard Rear Panel
DisplayPort x1 HDMI x1 RJ-45 x1 USB 2.0 x4 USB 3.2 Gen 2 (3.1 Gen 2) x3 USB-C 3.2 Gen 2 (3.1 Gen 2) x1 Złącze anteny WiFi x2 Złącze audio x6
