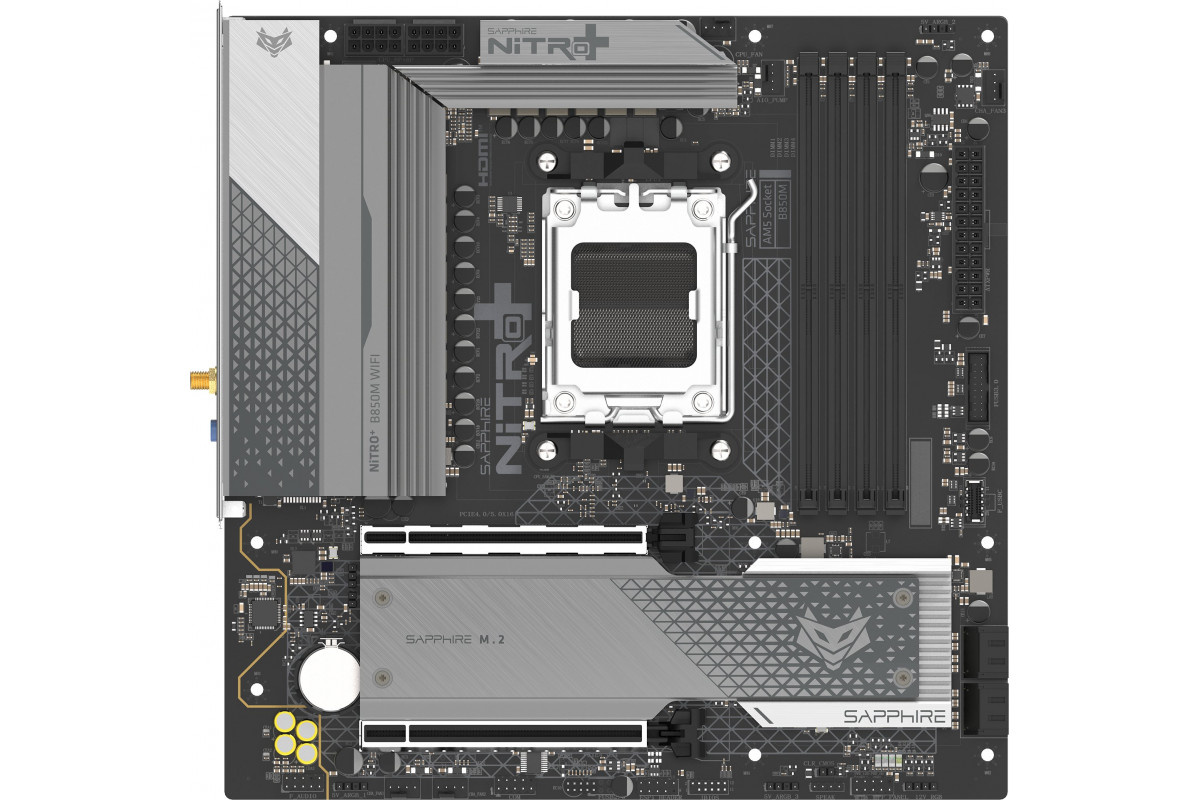

Sapphire NITRO+ B850M WIFI

Physical Specifications
Motherboard standard: Micro ATX
Width: 244 mm
Depth: 244 mm
Color: Silver / white-black

Technical Specifications
Intended use: Gaming
Chipset: AMD B850
CPU socket: Socket AM5
Supported processors: AMD Ryzen
RAID controller: RAID 0, RAID 1, RAID 5

Memory
Memory standard: DDR5
Module type: U-DIMM
Number of memory slots: 4
Supported memory frequencies: 4800 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 6800 MHz, 7000 MHz, 7200 MHz, 7400 MHz, 7600 MHz, 7800 MHz, 8000 MHz
Maximum memory capacity: 256 GB
Multi-channel architecture: Dual-Channel

Graphics
Integrated graphics support: Yes
Graphics chipset: Depends on CPU
Multi-GPU support: No

Audio
Audio chipset: Realtek ALC897
Audio channels: 7.1

Connectivity
Integrated network card: 10/100/1000/2500
LAN chipset: Realtek RTL8125BG
Wireless connectivity: Bluetooth, Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Ports and Connectors
Expansion slots: M.2 Wi-Fi (1), PCI Express x16 (1)
Storage connectors: M.2 x2, SATA III x4

Internal connectors:
USB 2.0 x1
USB 3.2 Gen 1 x1
USB-C 3.2 Gen 1 x1
Addressable RGB LED (5V) x3
AIO_PUMP 4-pin x1
ATX 24-pin x1
ATX 8-pin x2
CPU FAN 4-pin x1
RGB LED x1
SYS FAN 4-pin x3

Rear panel:
DisplayPort x1
HDMI x1
BIOS Update button x1
RJ-45 x1
USB 2.0 x4
USB 3.2 Gen 2 x3
USB-C 3.2 Gen 2 x1
WiFi antenna connectors x2
Audio jacks x3

Included Accessories
WiFi antennas x2
